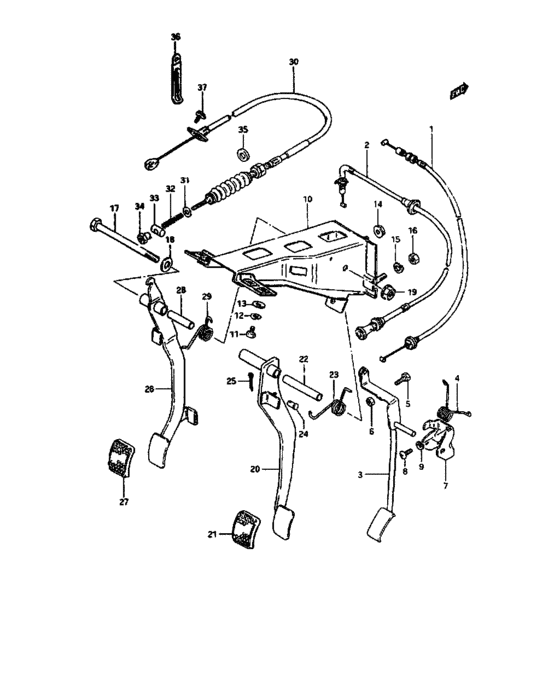

Pedal - cable (RHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-80000-000
Cable assy, accelerator
|
15910-80000-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-80002-000 CABLE ASSY,ACCEL |
15910-80002-000 |
US $39.20 |
||
|
2
|
2
15930-80003-000
Cable assy, choke
|
15930-80003-000 |
— | ||
| replacement | |||||
|
2
|
2
15930-8042V-000 CABLE ASSY,CHOKE |
15930-8042V-000 |
US $82.40 |
||
|
3
|
3
49410-80000-000
Pedal, accelerator
|
49410-80000-000 |
— | ||
|
4
|
4
09448-19003-000
Spring
|
09448-19003-000 |
— | ||
|
5
|
5
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $3.25 |
||
|
6
|
6
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
6
|
6
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
7
|
7
49511-80000-000
Bracket, accele pedal
|
49511-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
49511-80001-000
New Genuine Part
|
49511-80001-000 |
— | ||
|
8
|
8
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
8
|
8
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
9
|
9
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
49710-80020-000
Bracket, pedal
|
49710-80020-000 |
— | ||
|
11
|
11
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
12
|
12
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
16
|
16
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
09100-10056-000 BOLT(10X160) |
09100-10056-000 |
from US $10.33 |
||
|
18
|
18
08322-11106-000
Washer 10.5x18x1.6
|
08322-11106-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
18
|
18
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
19
|
19
08316-26106-000
Nut
|
08316-26106-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
20
|
20
49610-80001-000
Pedal, brake
|
49610-80001-000 |
— | ||
|
21
|
21
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
21
|
21
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
22
|
22
09180-10067-000
Spacer
|
09180-10067-000 |
— | ||
|
23
|
23
09448-31022-000
Spring
|
09448-31022-000 |
— | ||
|
24
|
24
09200-08006-000 PIN |
09200-08006-000 |
US $12.10 |
||
|
25
|
25
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
25
|
25
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
26
|
26
49810-80002-000
Pedal, clutch
|
49810-80002-000 |
— | ||
|
27
|
27
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
27
|
27
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
28
|
28
09180-10018-000
SPACER(10.1X13X56)
|
09180-10018-000 |
— | ||
|
29
|
29
09448-29004-000 SPRING |
09448-29004-000 |
from US $2.12 |
||
|
30
|
30
23710-80011-000
Cable assy, clutch
|
23710-80011-000 |
— | ||
| replacement | |||||
|
30
|
30
23710-80410-000 CABLE ASSY,CLUTCH |
23710-80410-000 |
US $124.64 |
||
|
31
|
31
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
31
|
31
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
32
|
32
09440-08026-000 SPRINGFROM 09440-08001 |
09440-08026-000 |
from US $1.22 |
||
|
33
|
33
09209-13005-000
Pin
|
09209-13005-000 |
— | ||
| replacement | |||||
|
33
|
33
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
34
|
34
09150-06009-000
Nut
|
09150-06009-000 |
— | ||
| replacement | |||||
|
34
|
34
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
35
|
35
09320-09004-000 CUSHIONFrm rh cover cushion |
09320-09004-000 |
from US $1.98 |
||
|
36
|
36
09404-06415-000
Clamp, magneto cord (l:95)
|
09404-06415-000 |
— | ||
| replacements | |||||
|
36
|
36
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
36
|
36
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
36
|
36
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
36
|
36
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
37
|
37
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
