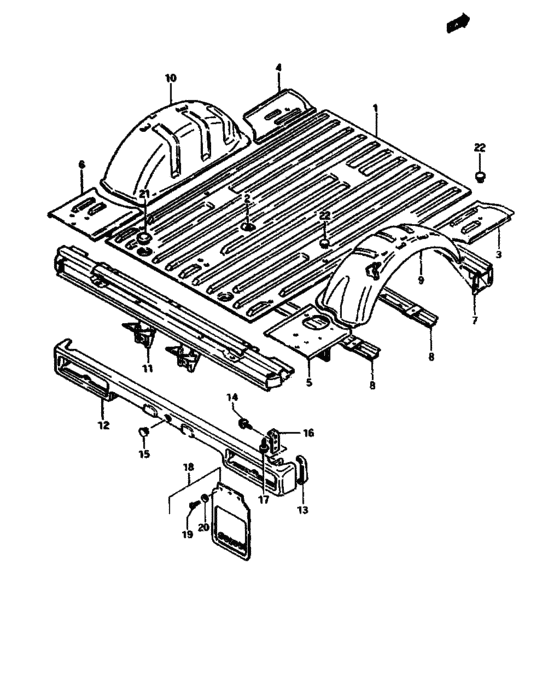

Rear body (REAR BODY) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62110-80300-000
Panel, rear floor
SJ410WC |
62110-80300-000 |
— | ||
|
1
|
1
62110-80310-000
Panel, rear floor
SJ410WC:,,,Finland,,Switzerland,Belgium,2,4,5,7,,Italy,Austria,Morocco,Iceland |
62110-80310-000 |
— | ||
|
1
|
1
62110-80320-000
Panel, rear floor
SJ410WF |
62110-80320-000 |
— | ||
|
2
|
2
73722-63001-000 HOOK,RRSJ410WC |
73722-63001-000 |
US $9.64 |
||
|
3
|
3
62120-80320-000
Panel, side front rh
|
62120-80320-000 |
— | ||
| replacement | |||||
|
3
|
3
62120-80321-000
PANEL,FLOOR SIDE FRONT,R
|
62120-80321-000 |
— | ||
|
4
|
4
62130-80320-000
Panel, side front lh
|
62130-80320-000 |
— | ||
| replacement | |||||
|
4
|
4
62130-80321-000
PANEL,FLOOR SIDE FRONT,L
|
62130-80321-000 |
— | ||
|
5
|
5
62140-80300-000
PANEL,FLOOR SIDE RR RH
|
62140-80300-000 |
— | ||
|
6
|
6
62150-80300-000
PANEL,FLOOR SIDE RR LH
|
62150-80300-000 |
— | ||
|
7
|
7
62160-80300-000
Reinforcement, no. 1
|
62160-80300-000 |
— | ||
| replacement | |||||
|
7
|
7
62160-83210-000 REINFORCEMENT,RR FL NO.1 |
62160-83210-000 |
US $56.67 |
||
|
8
|
8
62120-80000-000
Reinforcement, no.2/3
|
62120-80000-000 |
— | ||
| replacement | |||||
|
8
|
8
62120-80001-000
Reinforcement, floor
|
62120-80001-000 |
— | ||
|
9
|
9
62210-80001-000
Panel, wheel housing rh
|
62210-80001-000 |
— | ||
| replacements | |||||
|
9
|
9
62211-70A00-000 PANEL,RR WHEEL HSG,R |
62211-70A00-000 |
US $112.80 |
||
|
9
|
9
09250-06004-000 CAP(OD:14.5) |
09250-06004-000 |
from US $0.91 |
||
|
10
|
10
62311-80001-000
Panel, wheel housing lh
|
62311-80001-000 |
— | ||
| replacements | |||||
|
10
|
10
62311-70A00-000 PANEL,RR WHEEL HSG,L |
62311-70A00-000 |
US $112.80 |
||
|
10
|
10
09250-06004-000 CAP(OD:14.5) |
09250-06004-000 |
from US $0.91 |
||
|
11
|
11
62500-80300-000
Tailmember, floor
|
62500-80300-000 |
— | ||
|
12
|
12
71810-80021-162
Bumper,rr
|
71810-80021-162 |
— | ||
|
13
|
13
71821-80002-000 PAD,REAR BUMPER SIDE |
71821-80002-000 |
US $1.92 |
||
|
14
|
14
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09409-09303-000 CAP |
09409-09303-000 |
US $8.50 |
||
|
16
|
16
62516-80001-000
Bracket,rr bumper
|
62516-80001-000 |
— | ||
|
17
|
17
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
57600-80811-000
Flap set, rear
|
57600-80811-000 |
— | ||
| replacement | |||||
|
18
|
18
57600-80814-000 FLAP SET,RR |
57600-80814-000 |
US $100.80 |
||
|
19
|
19
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
20
|
20
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
21
|
21
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
22
|
22
09409-09303-000 CAPSJ410WC |
09409-09303-000 |
US $8.50 |
||
