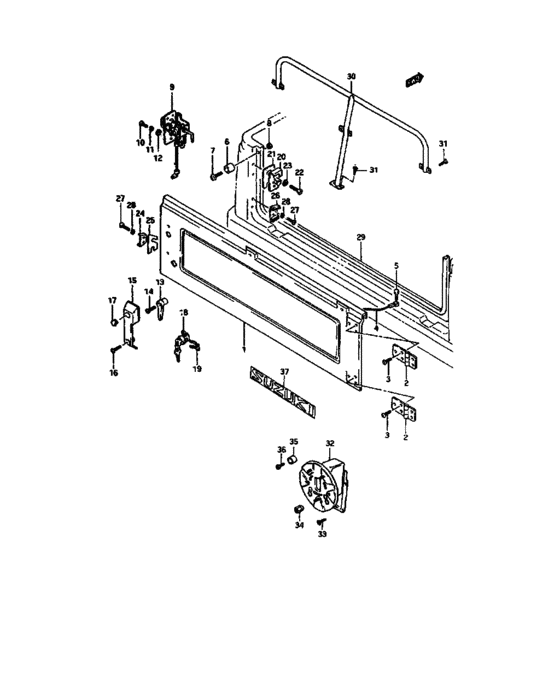

Rear gate (TYPE 2) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-80060-000
Ens panneau hayon
SJ410WC |
67700-80060-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-80360-000 PANEL ASSY,REAR GATESJ410WC |
67700-80360-000 |
US $366.16 |
||
|
1
|
1
67700-80360-000 PANEL ASSY,REAR GATESJ410WF |
67700-80360-000 |
US $366.16 |
||
|
2
|
2
67790-80030-000
Hinge, gate
|
67790-80030-000 |
— | ||
| replacement | |||||
|
2
|
2
67790-80033-000 HINGE,RR GATE |
67790-80033-000 |
US $27.97 |
||
|
3
|
3
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
4
|
4
72850-80002-000 CABLE,RR GATE |
72850-80002-000 |
US $8.66 |
||
|
5
|
5
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
6
|
6
72875-80000-000
Cushion, gate
|
72875-80000-000 |
— | ||
| replacements | |||||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATE |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
7
|
7
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
08313-11066-000
ナット
|
08313-11066-000 |
— | ||
| replacements | |||||
|
8
|
8
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
8
|
8
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
9
|
9
82550-80080-000
Lock assy, gate side
|
82550-80080-000 |
— | ||
| replacement | |||||
|
9
|
9
82550-80082-000
LOCK ASSY,RR GATE SIDE,L
|
82550-80082-000 |
— | ||
|
10
|
10
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
11
|
11
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
12
|
12
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
13
|
13
82591-80060-000
HANDLE,REAR GATE LOCK
|
82591-80060-000 |
— | ||
|
14
|
14
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
14
|
14
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
15
|
15
82592-80060-000
COVER,RR GATE LOCK HANDLE
|
82592-80060-000 |
— | ||
|
16
|
16
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
16
|
16
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
16
|
16
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
17
|
17
09250-14006-000 PLUG(OD:17)Cap, oil level gauge hole |
09250-14006-000 |
from US $1.92 |
||
|
18
|
18
77400-80891-000
Door lock key set, lh
|
77400-80891-000 |
— | ||
| replacement | |||||
|
18
|
18
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
US $36.80 |
||
|
19
|
19
77461-80080-000
CLIP,KEY CYLINDER
|
77461-80080-000 |
— | ||
| replacement | |||||
|
19
|
19
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
20
|
20
77810-60020-000
Gache serrure
|
77810-60020-000 |
— | ||
| replacement | |||||
|
20
|
20
77810-60021-000 STRIKER,RR GATE LATCH |
77810-60021-000 |
US $25.09 |
||
|
21
|
21
77883-60000-000
Spacer, striker
|
77883-60000-000 |
— | ||
|
22
|
22
02122-08188-000
Screw
|
02122-08188-000 |
— | ||
| replacement | |||||
|
22
|
22
09126-08004-XC0 SCREW(8X18) |
09126-08004-XC0 |
US $13.20 |
||
|
23
|
23
08323-31088-000
Washer,lock
|
08323-31088-000 |
— | ||
| replacement | |||||
|
23
|
23
09163-08002-000 WASHER,LOCKRondelle |
09163-08002-000 |
US $7 |
||
|
24
|
24
78251-68200-000
Arret de porte
|
78251-68200-000 |
— | ||
| replacement | |||||
|
24
|
24
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
25
|
25
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
26
|
26
78261-68200-000
Arret de porte
|
78261-68200-000 |
— | ||
| replacement | |||||
|
26
|
26
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
27
|
27
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
28
|
28
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
29
|
29
84681-80100-000
ウェザストリップ,バックウィンド
L:3860->1700 |
84681-80100-000 |
— | ||
| replacement | |||||
|
29
|
29
84681-82CA0-000 WEATHERSTRIP,BACK DR OPNGL:3860->1700 |
84681-82CA0-000 |
US $168 |
||
|
30
|
30
72890-80300-000
Pipe, rear guard bar
SJ410WF |
72890-80300-000 |
— | ||
| replacement | |||||
|
30
|
30
72890-80301-000
PIPE,REAR GUARD BAR
SJ410WF |
72890-80301-000 |
— | ||
|
31
|
31
02142-06108-000
6 x 10 screw
SJ410WF |
02142-06108-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-06107-000 SCREWSJ410WF |
02142-06107-000 |
from US $0.80 |
||
|
32
|
32
72810-80022-000
Carrier, spare tire
|
72810-80022-000 |
— | ||
| replacement | |||||
|
32
|
32
72810-50C00-000
CARRIER,SPARE TIRE
|
72810-50C00-000 |
— | ||
|
33
|
33
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
33
|
33
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
34
|
34
09140-12013-000
Nut
|
09140-12013-000 |
— | ||
| replacement | |||||
|
34
|
34
09140-12042-000 NUT |
09140-12042-000 |
from US $1.33 |
||
|
34
|
34
09159-12009-000
Nut
,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
09159-12009-000 |
— | ||
| replacement | |||||
|
34
|
34
09159-12024-000 NUT,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
09159-12024-000 |
from US $2.40 |
||
|
35
|
35
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
36
|
36
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
36
|
36
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
36
|
36
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
37
|
37
77813-80010-064
Emblem, tail
|
77813-80010-064 |
— | ||
| replacement | |||||
|
37
|
37
77813-80010-019 EMBLEM,TAIL |
77813-80010-019 |
US $63.84 |
||
|
37
|
37
77813-80010-019 EMBLEM,TAIL |
77813-80010-019 |
US $63.84 |
||
