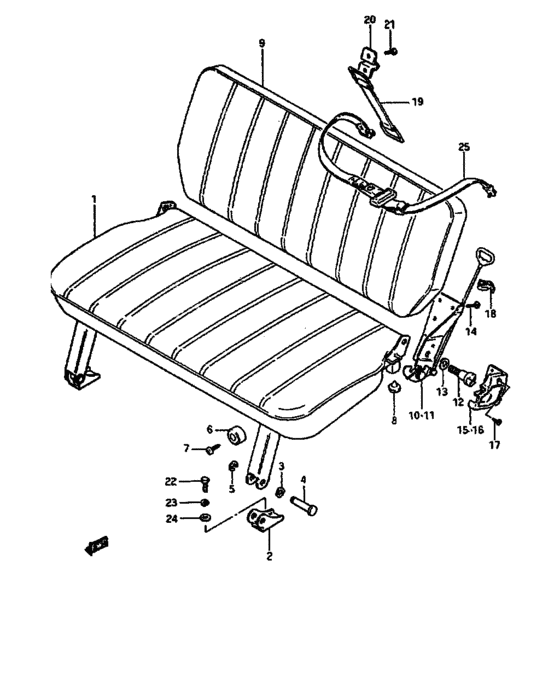

Rear seat (TYPE 2 : SJ410WC) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-80230-95D
Cushion assy, rear seat
|
87101-80230-95D |
— | ||
|
1
|
1
87101-80250-95V
Cushion assy, rear seat
Saudi Arabia |
87101-80250-95V |
— | ||
|
2
|
2
87271-80120-000
Male, seeat hinge
|
87271-80120-000 |
— | ||
| replacement | |||||
|
2
|
2
87271-80280-000
MALE,RR SEAT HNG
|
87271-80280-000 |
— | ||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
09320-06006-000 CUSHION |
09320-06006-000 |
from US $1.04 |
||
|
7
|
7
03141-05208-000
Screw
|
03141-05208-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
9
|
9
87301-80200-95D
Back assy, rear seat
|
87301-80200-95D |
— | ||
|
9
|
9
87301-80250-95V
Back assy, rear seat
Saudi Arabia |
87301-80250-95V |
— | ||
|
10
|
10
87210-80200-000
LOCK,RR SEAT BACK HNG,R
|
87210-80200-000 |
— | ||
|
11
|
11
87610-80200-000
LOCK,RR SEAT BACK HNG,L
|
87610-80200-000 |
— | ||
|
12
|
12
87295-80101-000
Bolt
|
87295-80101-000 |
— | ||
| replacement | |||||
|
12
|
12
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
13
|
13
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
14
|
14
02142-06128-000
Bolt
|
02142-06128-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
15
|
15
87229-80200-000 COVER,RR SEAT BACK HINGE,R |
87229-80200-000 |
US $7.36 |
||
|
16
|
16
87629-80200-000 COVER,RR SEAT BACK HINGE,L |
87629-80200-000 |
US $7.99 |
||
|
17
|
17
03241-05086-000
New Genuine Part
|
03241-05086-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
18
|
18
87628-80200-000
Clamp, lock handle
|
87628-80200-000 |
— | ||
| replacement | |||||
|
18
|
18
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
19
|
19
87291-80101-000
Band, seat stopper
|
87291-80101-000 |
— | ||
| replacement | |||||
|
19
|
19
87291-80230-000
BAND,RR SEAT STOPPER
|
87291-80230-000 |
— | ||
|
20
|
20
87292-80100-000
Holder
|
87292-80100-000 |
— | ||
| replacement | |||||
|
20
|
20
87292-80230-000 HOLDER,RR SEAT STOPPER BAND |
87292-80230-000 |
US $2.56 |
||
|
21
|
21
02142-03087-000
Screw
|
02142-03087-000 |
— | ||
|
22
|
22
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
25
|
25
84904-80132-382
Belt assy, rear seat
,Morocco |
84904-80132-382 |
— | ||
| replacement | |||||
|
25
|
25
84904-83051-382 BELT ASSY,RR SEAT,Morocco |
84904-83051-382 |
US $156.03 |
||
