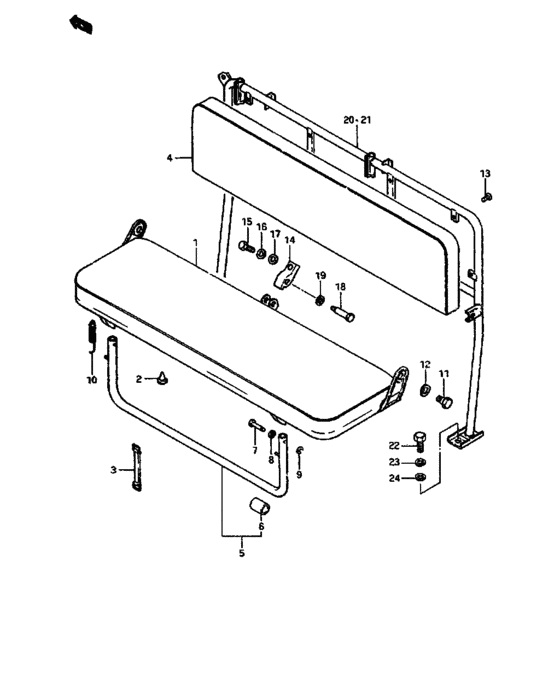

Rear seat (SJ410WF) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-80300-80R
Cushion assy, rear seat
TYPE 1 |
87101-80300-80R |
— | ||
|
1
|
1
87101-80300-95D
Cushion assy, rear seat
TYPE 2 |
87101-80300-95D |
— | ||
|
1
|
1
87101-80400-81A
Cushion assy, rear seat
TYPE 1:Saudi Arabia |
87101-80400-81A |
— | ||
|
1
|
1
87101-80400-95V
Cushion assy, rear seat
TYPE 2:Saudi Arabia |
87101-80400-95V |
— | ||
|
2
|
2
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
3
|
3
87191-80300-000 BAND,RR SEAT |
87191-80300-000 |
US $11.30 |
||
|
4
|
4
87301-80300-80R
Back assy, rear seat
TYPE 1 |
87301-80300-80R |
— | ||
| replacements | |||||
|
4
|
4
08316-1006A-000 NUTTYPE 1 |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
08316-2006A-000 NUTTYPE 1 |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006B-000 NUTTYPE 1 |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
08319-31067-000 NUTNut, center TYPE 1 |
08319-31067-000 |
from US $1.44 |
||
|
4
|
4
08316-26066-000
Nut 6mm
TYPE 1 |
08316-26066-000 |
— | ||
|
4
|
4
87301-80300-95D
Back assy, rear seat
TYPE 2 |
87301-80300-95D |
— | ||
| replacements | |||||
|
4
|
4
08316-1006A-000 NUTTYPE 2 |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
08316-2006A-000 NUTTYPE 2 |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006B-000 NUTTYPE 2 |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
08319-31067-000 NUTNut, center TYPE 2 |
08319-31067-000 |
from US $1.44 |
||
|
4
|
4
08316-26066-000
Nut 6mm
TYPE 2 |
08316-26066-000 |
— | ||
|
4
|
4
87301-80400-81A
Back assy, rear seat
TYPE 1:Saudi Arabia |
87301-80400-81A |
— | ||
| replacements | |||||
|
4
|
4
08316-1006A-000 NUTTYPE 1:Saudi Arabia |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
08316-2006A-000 NUTTYPE 1:Saudi Arabia |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006B-000 NUTTYPE 1:Saudi Arabia |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
08319-31067-000 NUTNut, center TYPE 1:Saudi Arabia |
08319-31067-000 |
from US $1.44 |
||
|
4
|
4
08316-26066-000
Nut 6mm
TYPE 1:Saudi Arabia |
08316-26066-000 |
— | ||
|
4
|
4
87301-80400-95V
Back assy, rear seat
TYPE 2:Saudi Arabia |
87301-80400-95V |
— | ||
| replacements | |||||
|
4
|
4
08316-1006A-000 NUTTYPE 2:Saudi Arabia |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
08316-2006A-000 NUTTYPE 2:Saudi Arabia |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
08316-1006B-000 NUTTYPE 2:Saudi Arabia |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
08319-31067-000 NUTNut, center TYPE 2:Saudi Arabia |
08319-31067-000 |
from US $1.44 |
||
|
4
|
4
08316-26066-000
Nut 6mm
TYPE 2:Saudi Arabia |
08316-26066-000 |
— | ||
|
5
|
5
87250-80300-000
Leg, cushion front
|
87250-80300-000 |
— | ||
|
6
|
6
87252-80300-000
CUSHION,REAR SEAT LEG
|
87252-80300-000 |
— | ||
|
7
|
7
09208-06003-000 Pin |
09208-06003-000 |
US $5.93 |
||
| replacement | |||||
|
7
|
7
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
8
|
8
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
9
|
9
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
9
|
9
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
9
|
9
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
10
|
10
09443-11008-000 SPRING |
09443-11008-000 |
US $34.20 |
||
|
11
|
11
09111-08043-000
Bolt
|
09111-08043-000 |
— | ||
|
12
|
12
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
13
|
13
02142-05107-000 SCREWScrew, shift plate |
02142-05107-000 |
from US $0.80 |
||
|
14
|
14
87831-80300-000 MAIL,RR SEAT CUSH HNG CTR |
87831-80300-000 |
US $4.38 |
||
|
15
|
15
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
16
|
16
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
17
|
17
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
18
|
18
09111-06009-000
BOLT(6X52.5)
|
09111-06009-000 |
— | ||
|
19
|
19
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
20
|
20
87850-80300-000
Frame, back stay rh
|
87850-80300-000 |
— | ||
|
21
|
21
87950-80300-000
Frame, back stay lh
|
87950-80300-000 |
— | ||
|
22
|
22
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
24
|
24
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
