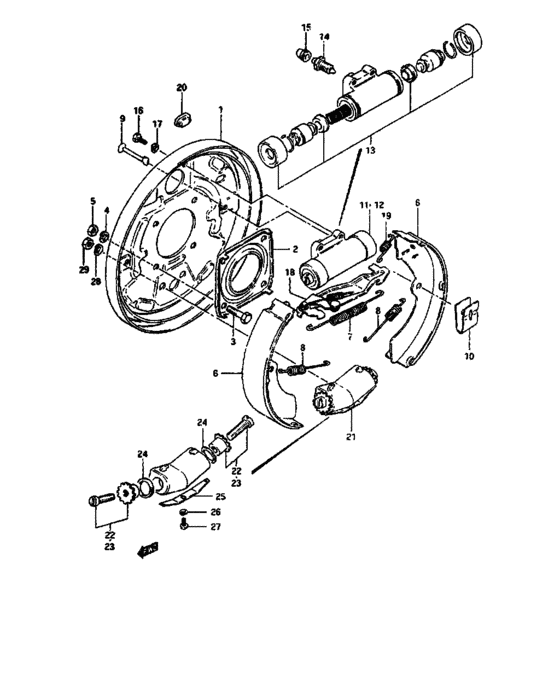

Rear wheel brake (REAR WHEEL BRAKE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-80050-000
Plate, baking
|
53110-80050-000 |
— | ||
| replacements | |||||
|
1
|
1
53110-80051-000
Plate, baking
|
53110-80051-000 |
— | ||
|
1
|
1
53610-80051-000
ANCHOR ASSY
|
53610-80051-000 |
— | ||
|
2
|
2
53821-80040-000 RETAINER,BEARING OUTER |
53821-80040-000 |
US $24.80 |
||
|
3
|
3
53811-61040-000 BOLT,BACKING PLATE |
53811-61040-000 |
US $2.24 |
||
|
4
|
4
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
5
|
5
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
6
|
6
53210-80050-000
Shoe, brake
|
53210-80050-000 |
— | ||
| replacement | |||||
|
6
|
6
53200-80812-000 SHOE SET,BRAKE |
53200-80812-000 |
US $88.69 |
||
|
7
|
7
53331-80050-000 SPRING,SHOE RETURN |
53331-80050-000 |
US $2.90 |
||
|
8
|
8
53231-79240-000 SPRING,SHOE RETURN |
53231-79240-000 |
US $2.24 |
||
|
9
|
9
52241-73040-000 PIN,SHOE HOLD DOWN |
52241-73040-000 |
from US $1.92 |
||
|
10
|
10
52243-79241-000 スプリング,シューホールドダウン |
52243-79241-000 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
52243-70AA0-000 SPRING,SHOE CLAMP |
52243-70AA0-000 |
US $2.24 |
||
|
11
|
11
53401-80050-000
CYLINDER ASSY,REAR WHEEL,R
|
53401-80050-000 |
— | ||
|
12
|
12
53402-80050-000 CYLINDER ASSY,REAR WHEEL,LWITH BLEEDER |
53402-80050-000 |
US $82.06 |
||
|
13
|
13
52400-80820-000 PISTON CUP&BOOT SET |
52400-80820-000 |
US $5.60 |
||
|
14
|
14
52473-67040-000
Plug, bleeder
|
52473-67040-000 |
— | ||
| replacement | |||||
|
14
|
14
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
15
|
15
52474-58040-000
Cap
|
52474-58040-000 |
— | ||
| replacements | |||||
|
15
|
15
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
15
|
15
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
16
|
16
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
17
|
17
08321-31068-000
Lock washer
|
08321-31068-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
18
|
18
53810-80050-000
Rod
|
53810-80050-000 |
— | ||
| replacement | |||||
|
18
|
18
53810-80060-000 ROD,ADJUSTER |
53810-80060-000 |
US $68.08 |
||
|
19
|
19
53821-80050-000 SPRING,ROD |
53821-80050-000 |
US $2.13 |
||
|
20
|
20
53121-80050-000 PLUG,ADJUSTER |
53121-80050-000 |
US $2.13 |
||
|
21
|
21
53610-80050-000
Anchor assy, shoe
|
53610-80050-000 |
— | ||
| replacement | |||||
|
21
|
21
53610-80051-000
ANCHOR ASSY
|
53610-80051-000 |
— | ||
|
22
|
22
52450-60833-000 SLEEVE SET,ADJUST LH THREADLH THREADS |
52450-60833-000 |
US $15.68 |
||
|
23
|
23
52550-60832-000 SLEEVE SET,ADJUST RH THREADRH THREADS |
52550-60832-000 |
US $14.56 |
||
|
24
|
24
53611-80030-000
Washer
|
53611-80030-000 |
— | ||
|
25
|
25
53631-79240-000 SPRING,ADJUSTER LOCK |
53631-79240-000 |
US $1.60 |
||
|
26
|
26
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
27
|
27
02112-04068-000
Screw
|
02112-04068-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
28
|
28
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
29
|
29
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
29
|
29
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
