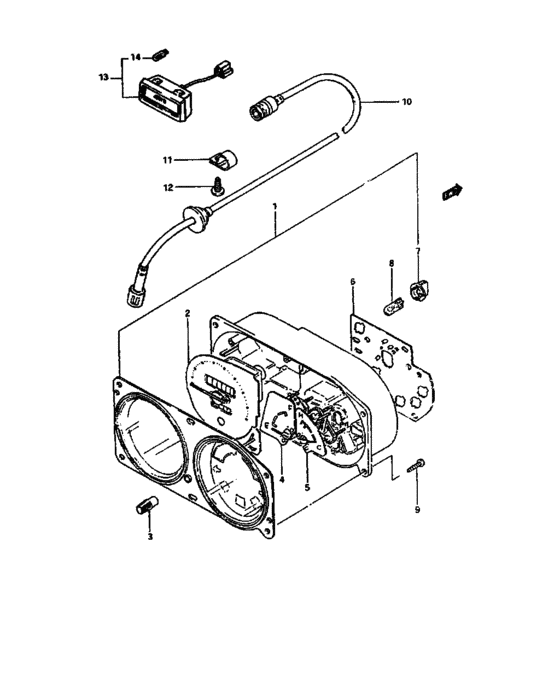

Speedometer (SPEEDOMETER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-80020-000
Speedometer assy
TYPE 1 |
34100-80020-000 |
— | ||
|
1
|
1
34100-80150-000
Speedometer assy
TYPE 2 |
34100-80150-000 |
— | ||
|
1
|
1
34100-80030-000
Speedometer assy
TYPE 1 |
34100-80030-000 |
— | ||
|
1
|
1
34100-80160-000
Speedometer assy
TYPE 2 |
34100-80160-000 |
— | ||
|
1
|
1
34100-80040-000
Speedometer assy
,Finland,Switzerland,Belgium,Germany,,Holland,Italy,Austria,Saudi Arabia |
34100-80040-000 |
— | ||
|
1
|
1
34100-80050-000
Speedometer assy
,Saudi Arabia |
34100-80050-000 |
— | ||
|
1
|
1
34100-80081-000
Speedometer assy
Australia |
34100-80081-000 |
— | ||
|
2
|
2
34120-80080-000
Body, speedometer
|
34120-80080-000 |
— | ||
|
2
|
2
34120-80030-000
Body, speedometer
|
34120-80030-000 |
— | ||
|
3
|
3
34141-64010-000
Knob
|
34141-64010-000 |
— | ||
|
4
|
4
34320-78200-000
BODY,FUEL METER
|
34320-78200-000 |
— | ||
|
5
|
5
34420-78210-000
Body assy, thermometer
|
34420-78210-000 |
— | ||
| replacement | |||||
|
5
|
5
34420-78211-000
Body, thermometer
|
34420-78211-000 |
— | ||
|
6
|
6
34152-80020-000
Plate, meter print
TYPE 1 |
34152-80020-000 |
— | ||
|
6
|
6
34152-80040-000
Plate, meter print
TYPE 1:Saudi Arabia |
34152-80040-000 |
— | ||
| replacement | |||||
|
6
|
6
34152-80090-000
New Genuine Part
TYPE 1:Saudi Arabia |
34152-80090-000 |
— | ||
|
7
|
7
34173-64010-000
ソケット
TYPE 1 |
34173-64010-000 |
— | ||
| replacement | |||||
|
7
|
7
34172-50E10-000 SOCKETTYPE 1 |
34172-50E10-000 |
US $1.60 |
||
|
8
|
8
09471-12028-000 BULB(12V3.4W,T10)TYPE 1 |
09471-12028-000 |
from US $1.98 |
||
|
9
|
9
03241-04168-000
Screw
|
03241-04168-000 |
— | ||
| replacement | |||||
|
9
|
9
03242-0416B-000 SCREW |
03242-0416B-000 |
from US $2.72 |
||
|
10
|
10
34910-80010-000
Cable, speedometer
LHD |
34910-80010-000 |
— | ||
| replacement | |||||
|
10
|
10
34910-80C60-000
CABLE ASSY,SPEEDOMETER
LHD |
34910-80C60-000 |
— | ||
|
10
|
10
34910-80000-000
Cable, speedometer
RHD |
34910-80000-000 |
— | ||
| replacement | |||||
|
10
|
10
34910-80C21-000 CABLE ASSY,SPEEDOMETERRHD |
34910-80C21-000 |
US $88.92 |
||
|
11
|
11
09403-14402-000
CLAMP
|
09403-14402-000 |
— | ||
|
12
|
12
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
13
|
13
36300-80000-000
Lamp assy, indicator
Australia,Saudi Arabia |
36300-80000-000 |
— | ||
|
13
|
13
36300-80010-000
Lamp assy, indicator
,,Finland,Switzerland,Belgium,5,Italy |
36300-80010-000 |
— | ||
|
13
|
13
36300-80020-000
Lamp assy, indicator
Germany,Austria |
36300-80020-000 |
— | ||
|
14
|
14
09471-12055-000 BULB(14V1.4W,T5)Australia,Saudi Arabia |
09471-12055-000 |
from US $2.40 |
||
|
203
|
203
34120-80081-000
Body, speedometer
Australia,TYPE 2 |
34120-80081-000 |
— | ||
