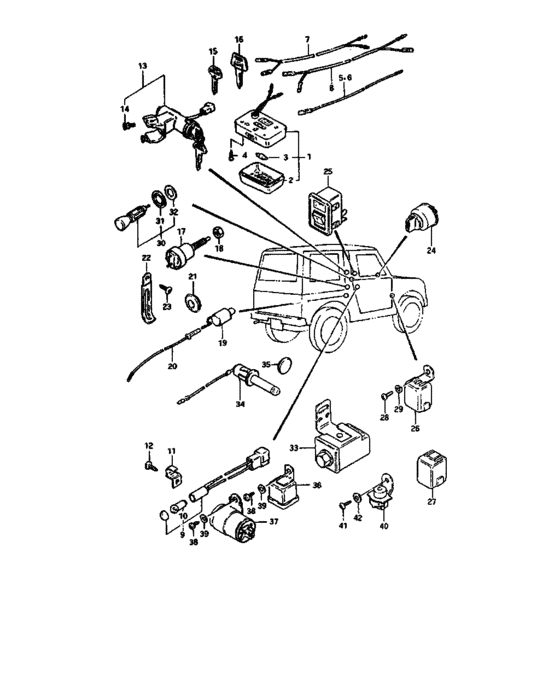

Switch (SWITCH) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-79013-000
Lamp assy, container
TYPE 1 |
36210-79013-000 |
— | ||
| replacement | |||||
|
1
|
1
36210-79023-000 LAMP ASSY,ROOMTYPE 1 |
36210-79023-000 |
US $34.59 |
||
|
1
|
1
36210-79003-000 LAMP ASSY,ROOMTYPE 2 |
36210-79003-000 |
US $91.97 |
||
|
2
|
2
36212-79001-000 LENS,ROOM LAMPLens, room lamp |
36212-79001-000 |
from US $11.80 |
||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03212-04109-000
Screw 4x10
|
03212-04109-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
5
|
5
36860-61910-000
Lead wire, room lamp
TYPE 1 |
36860-61910-000 |
— | ||
|
6
|
6
36820-66000-000
WIRE,ROOM LAMP
TYPE 1 |
36820-66000-000 |
— | ||
|
7
|
7
36820-80010-000 WIRE,ROOM LAMP NO.2TYPE 2 |
36820-80010-000 |
US $12.16 |
||
|
8
|
8
36820-80000-000
Lead wire, room lamp no.1
TYPE 2 |
36820-80000-000 |
— | ||
| replacement | |||||
|
8
|
8
36820-80001-000 WIRE,ROOM LAMP NO.1TYPE 2 |
36820-80001-000 |
US $13.92 |
||
|
9
|
9
36550-80000-000
Lamf assy, illumination
|
36550-80000-000 |
— | ||
|
10
|
10
09471-12004-000 BULB(12V1.7W,A71A)Bulb (12v,1.7w) |
09471-12004-000 |
from US $4.25 |
||
|
11
|
11
36561-80000-000
Holder, illumination lamp
|
36561-80000-000 |
— | ||
|
12
|
12
03141-04168-000
Screw
|
03141-04168-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
13
|
13
37100-70011-000
Lock assy, steering
|
37100-70011-000 |
— | ||
| replacement | |||||
|
13
|
13
37100-85210-000 LOCK ASSY,STEERING |
37100-85210-000 |
US $227.20 |
||
|
13
|
13
37100-73302-000
Lock assy, steering
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
37100-73302-000 |
— | ||
| replacement | |||||
|
13
|
13
37100-85210-000 LOCK ASSY,STEERING,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
37100-85210-000 |
US $227.20 |
||
|
14
|
14
37152-66010-000 BOLT,STEERING LOCK |
37152-66010-000 |
US $7.90 |
||
|
15
|
15
37145-70010-000
キー,ブランク
OPT |
37145-70010-000 |
— | ||
| replacement | |||||
|
15
|
15
37145-73302-000 KEY,BLANKOPT |
37145-73302-000 |
US $7.60 |
||
|
16
|
16
37145-73301-000
Key, blank
OPT:,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
37145-73301-000 |
— | ||
| replacement | |||||
|
16
|
16
37145-73302-000 KEY,BLANKOPT:,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
37145-73302-000 |
US $7.60 |
||
|
17
|
17
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
18
|
18
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
18
|
18
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
37940-80000-000 SWITCH ASSY,PARKING BRAKE,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
37940-80000-000 |
US $15.84 |
||
|
20
|
20
36850-79500-000 WIRE,BACK DR SWITCH,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
36850-79500-000 |
US $2.56 |
||
|
21
|
21
09308-14006-000 GROMMET,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
09308-14006-000 |
from US $2.88 |
||
|
22
|
22
09404-06412-000
Clamp
,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
09404-06412-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06432-000
CLAMP(L:65)
,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
09404-06432-000 |
— | ||
|
22
|
22
09404-06039-000 Clamp(L:65),,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
09404-06039-000 |
from US $1.82 |
||
|
23
|
23
03111-05128-000
Screw
,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
03111-05128-000 |
— | ||
| replacement | |||||
|
23
|
23
03111-0512A-000 SCREW,,Finland,Switzerland,Belgium,2,,4,5,Italy,Austria,Saudi Arabia |
03111-0512A-000 |
from US $0.80 |
||
|
24
|
24
37870-78002-000
Switch assy, heater fan
|
37870-78002-000 |
— | ||
|
25
|
25
37280-78402-000
Switch assy, rear fog lamp
,,Switzerland,Belgium,2,5,,Italy,Austria |
37280-78402-000 |
— | ||
|
26
|
26
38610-78002-000
Relay, turn signal & 4 way
TYPE 1, FROM 38610-78001 |
38610-78002-000 |
— | ||
| replacement | |||||
|
26
|
26
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way TYPE 1, FROM 38610-78001 |
38610-76G00-000 |
US $56.80 |
||
|
27
|
27
38610-78302-000
Relay assy, turnsignal/4way
TYPE 2 |
38610-78302-000 |
— | ||
| replacement | |||||
|
27
|
27
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way TYPE 2 |
38610-76G00-000 |
US $56.80 |
||
|
28
|
28
03211-05128-000
Screw
TYPE 1 |
03211-05128-000 |
— | ||
| replacement | |||||
|
28
|
28
03212-0512B-000 SCREWTYPE 1 |
03212-0512B-000 |
from US $0.80 |
||
|
29
|
29
08322-21058-000
Washer
TYPE 1 |
08322-21058-000 |
— | ||
| replacement | |||||
|
29
|
29
08322-01057-000 WASHERWasher, front hook holder TYPE 1 |
08322-01057-000 |
from US $0.80 |
||
|
30
|
30
39400-78830-000
Lighter assy,cigarette
,,Finland,Switzerland,Belgium,,2,5,Italy,Austria,Barbados |
39400-78830-000 |
— | ||
|
31
|
31
39471-69000-000
Rim, lighter
,,Finland,Switzerland,Belgium,,2,5,Italy,Austria,Barbados |
39471-69000-000 |
— | ||
| replacement | |||||
|
31
|
31
39471-84000-000 RIM,CIGAR LIGHTER,,Finland,Switzerland,Belgium,,2,5,Italy,Austria,Barbados |
39471-84000-000 |
US $16 |
||
|
32
|
32
09160-23007-000 WASHER(23X34X1),,Finland,Switzerland,Belgium,,2,5,Italy,Austria,Barbados |
09160-23007-000 |
US $15.50 |
||
|
33
|
33
38390-79091-000
Relay, wiper control
OPT |
38390-79091-000 |
— | ||
|
34
|
34
37670-80000-000
Switch assy, door
TYPE 2 |
37670-80000-000 |
— | ||
| replacement | |||||
|
34
|
34
37670-80002-000 SWITCH ASSY,DOORTYPE 2 |
37670-80002-000 |
US $21.60 |
||
|
35
|
35
09250-14003-000 CAP(OD:18)TYPE 2 |
09250-14003-000 |
US $2.08 |
||
|
36
|
36
38590-73000-000
Buzzer assy, seat belt
Saudi Arabia |
38590-73000-000 |
— | ||
| replacement | |||||
|
36
|
36
34160-67010-000
BUZZER ASSY
Saudi Arabia |
34160-67010-000 |
— | ||
|
37
|
37
38740-73000-000
Relay assy, seat belt
Saudi Arabia |
38740-73000-000 |
— | ||
|
38
|
38
03211-05128-000
Screw
Saudi Arabia |
03211-05128-000 |
— | ||
| replacement | |||||
|
38
|
38
03212-0512B-000 SCREWSaudi Arabia |
03212-0512B-000 |
from US $0.80 |
||
|
39
|
39
08322-21058-000
Washer
Saudi Arabia |
08322-21058-000 |
— | ||
| replacement | |||||
|
39
|
39
08322-01057-000 WASHERWasher, front hook holder Saudi Arabia |
08322-01057-000 |
from US $0.80 |
||
|
40
|
40
38770-73300-000
RELAY ASSY,HAZARD WRN IND
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
38770-73300-000 |
— | ||
|
41
|
41
03211-05128-000
Screw
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
03211-05128-000 |
— | ||
| replacement | |||||
|
41
|
41
03212-0512B-000 SCREW,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
03212-0512B-000 |
from US $0.80 |
||
|
42
|
42
08322-21058-000
Washer
,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
08322-21058-000 |
— | ||
| replacement | |||||
|
42
|
42
08322-01057-000 WASHERWasher, front hook holder ,,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
08322-01057-000 |
from US $0.80 |
||
