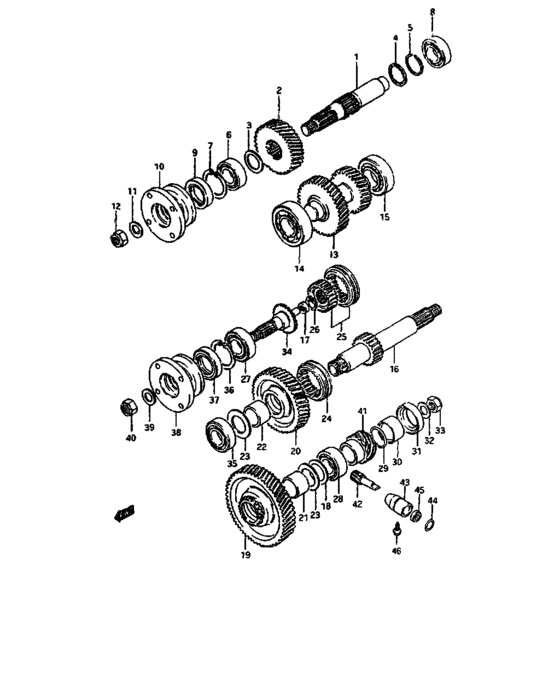

Transfer gear (~SJ41-102927, ~SJ41000501000) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29111-80002-000
Shaft, input,09180-30018
TO 29111-80003,USED WITH 09180-30018 |
29111-80002-000 |
— | ||
| replacements | |||||
|
1
|
1
08221-38463-000 SHIMTO 29111-80003,USED WITH 09180-30018 |
08221-38463-000 |
US $19.10 |
||
|
1
|
1
09180-30018-000
Spacer,30x40x7
TO 29111-80003,USED WITH 09180-30018 |
09180-30018-000 |
— | ||
|
2
|
2
29112-80011-000
Gear, input
|
29112-80011-000 |
— | ||
|
2
|
2
29112-80101-000
Gear, input
TYPE 1:,6 |
29112-80101-000 |
— | ||
|
3
|
3
09160-25036-000 WASHER(25X30X3) |
09160-25036-000 |
from US $4.62 |
||
|
4
|
4
09167-30002-000
New Genuine Part
|
09167-30002-000 |
— | ||
|
5
|
5
09380-29001-000
Circlip
|
09380-29001-000 |
— | ||
|
6
|
6
08113-62050-000
Bearing
|
08113-62050-000 |
— | ||
| replacement | |||||
|
6
|
6
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) |
09262-25003-000 |
from US $12.80 |
||
|
7
|
7
08331-21529-000
New Genuine Part
|
08331-21529-000 |
— | ||
| replacement | |||||
|
7
|
7
08331-41529-000 CIRCLIP |
08331-41529-000 |
from US $6.07 |
||
|
8
|
8
08113-62040-000
Bearing
|
08113-62040-000 |
— | ||
| replacement | |||||
|
8
|
8
09262-20069-000 BEARING(20X47X14) |
09262-20069-000 |
from US $11.52 |
||
|
9
|
9
09283-35020-000 SEAL,OIL(35X52X10) |
09283-35020-000 |
from US $6.32 |
||
|
10
|
10
27120-80001-000
Flange, universal joint
|
27120-80001-000 |
— | ||
| replacement | |||||
|
10
|
10
27120-80002-000
New Genuine Part
|
27120-80002-000 |
— | ||
|
11
|
11
09160-19010-000
Washer
|
09160-19010-000 |
— | ||
| replacement | |||||
|
11
|
11
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) |
09160-19022-000 |
from US $1.92 |
||
|
12
|
12
09159-18003-000 NUT |
09159-18003-000 |
from US $1.92 |
||
|
13
|
13
29121-80010-000
Shaft, counter
|
29121-80010-000 |
— | ||
|
13
|
13
29121-80102-000
Shaft, counter
TYPE 1:,6 |
29121-80102-000 |
— | ||
|
14
|
14
08113-63060-000
Bearing
|
08113-63060-000 |
— | ||
| replacement | |||||
|
14
|
14
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
15
|
15
08113-63050-000
Bearing
|
08113-63050-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
16
|
16
29141-80001-000
Shaft,transfer output rr
|
29141-80001-000 |
— | ||
|
17
|
17
09263-10003-000 BEARING(10X15X15) |
09263-10003-000 |
US $4.64 |
||
|
18
|
18
08221-30424-000 SHIM |
08221-30424-000 |
US $12.90 |
||
|
18
|
18
08221-30425-000
Shim
|
08221-30425-000 |
— | ||
|
19
|
19
29211-80001-000
Gear, output low
|
29211-80001-000 |
— | ||
|
19
|
19
29211-80101-000
Gear, output low
TYPE 1:,6 |
29211-80101-000 |
— | ||
|
20
|
20
29221-80010-000
Gear, output high
|
29221-80010-000 |
— | ||
|
20
|
20
29221-80102-000
Gear, output high
TYPE 1:,6 |
29221-80102-000 |
— | ||
|
21
|
21
09300-30001-000
Bush
|
09300-30001-000 |
— | ||
|
22
|
22
09300-30002-000
Bush
|
09300-30002-000 |
— | ||
|
23
|
23
08211-30483-000 WASHER |
08211-30483-000 |
US $19.10 |
||
|
24
|
24
29241-73000-000
Sleeve, reduction clutch
|
29241-73000-000 |
— | ||
| replacement | |||||
|
24
|
24
29200-73812-000
Hub set
|
29200-73812-000 |
— | ||
|
25
|
25
29200-73820-000
Hub set, front drive clutch
|
29200-73820-000 |
— | ||
|
26
|
26
08331-11229-000
Circlip
|
08331-11229-000 |
— | ||
| replacement | |||||
|
26
|
26
08331-31229-000 CIRCLIP |
08331-31229-000 |
from US $1.44 |
||
|
27
|
27
08113-63060-000
Bearing
|
08113-63060-000 |
— | ||
| replacement | |||||
|
27
|
27
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
28
|
28
08113-62060-000 BEARINGBearing, drive shaft rh |
08113-62060-000 |
from US $12.38 |
||
|
29
|
29
09280-30005-000
O RING(D:1.9,ID:29.7)
|
09280-30005-000 |
— | ||
|
30
|
30
29143-80000-000
RETAINER,OUTPUT REAR SHAFT
|
29143-80000-000 |
— | ||
|
31
|
31
09283-40009-000
SEAL,OIL(40X54X8)
|
09283-40009-000 |
— | ||
|
32
|
32
09160-19010-000
Washer
|
09160-19010-000 |
— | ||
| replacement | |||||
|
32
|
32
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) |
09160-19022-000 |
from US $1.92 |
||
|
33
|
33
09159-18003-000 NUT |
09159-18003-000 |
from US $1.92 |
||
|
34
|
34
29151-80000-000
Shaft, output front
|
29151-80000-000 |
— | ||
| replacement | |||||
|
34
|
34
29151-80001-000
New Genuine Part
|
29151-80001-000 |
— | ||
|
35
|
35
08113-62050-000
Bearing
|
08113-62050-000 |
— | ||
| replacement | |||||
|
35
|
35
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) |
09262-25003-000 |
from US $12.80 |
||
|
36
|
36
08331-21529-000
New Genuine Part
|
08331-21529-000 |
— | ||
| replacement | |||||
|
36
|
36
08331-41529-000 CIRCLIP |
08331-41529-000 |
from US $6.07 |
||
|
38
|
38
27120-80001-000
Flange, universal joint
|
27120-80001-000 |
— | ||
| replacement | |||||
|
38
|
38
27120-80002-000
New Genuine Part
|
27120-80002-000 |
— | ||
|
39
|
39
09160-19010-000
Washer
|
09160-19010-000 |
— | ||
| replacement | |||||
|
39
|
39
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) |
09160-19022-000 |
from US $1.92 |
||
|
40
|
40
09159-18003-000 NUT |
09159-18003-000 |
from US $1.92 |
||
|
41
|
41
29411-80000-000
Gear,speedometer drive
|
29411-80000-000 |
— | ||
|
42
|
42
29421-80001-000
Gear, speedometer driven
|
29421-80001-000 |
— | ||
| replacement | |||||
|
42
|
42
29421-80051-000 GEAR,SPDOM DRIVEN |
29421-80051-000 |
US $32.38 |
||
|
42
|
42
29421-80101-000
Gear, speedometer driven
TYPE 2:,6 |
29421-80101-000 |
— | ||
| replacement | |||||
|
42
|
42
29421-80061-000
GEAR,SPDOM DRIVEN
TYPE 2:,6 |
29421-80061-000 |
— | ||
|
43
|
43
29431-80003-000
ケース,スピードメータギヤ
|
29431-80003-000 |
— | ||
| replacement | |||||
|
43
|
43
29431-85400-000 CASE,SPEEDOMETER DRIVEN GEAR |
29431-85400-000 |
US $10.27 |
||
|
44
|
44
09280-19001-000 O RING(D:1.9,ID:18.8)O ring |
09280-19001-000 |
from US $1.60 |
||
|
45
|
45
09282-08001-000 SEAL,OIL(8X16X5) |
09282-08001-000 |
US $2.31 |
||
|
46
|
46
09128-06032-000 SCREW(6X13.5) |
09128-06032-000 |
US $1.22 |
||
