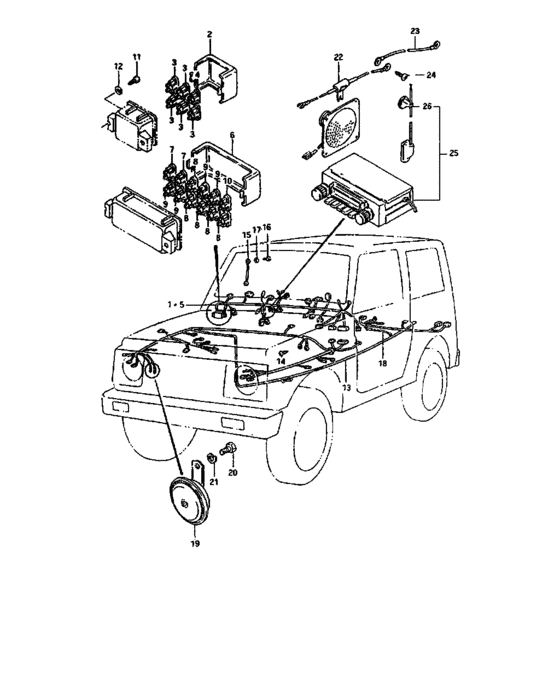

Wiring harness (TYPE 2) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-80013-000
Wiring harness, no.1
LHD |
36610-80013-000 |
— | ||
|
1
|
1
36610-80004-000
Wiring harness, no.1
RHD |
36610-80004-000 |
— | ||
|
1
|
1
36610-80080-000
Wiring harness, no.1
Saudi Arabia |
36610-80080-000 |
— | ||
|
2
|
2
36717-79000-000 COVER,FUSE BOX |
36717-79000-000 |
US $5.81 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
5
|
5
36610-80034-000
Wiring harness, no.1
, |
36610-80034-000 |
— | ||
|
5
|
5
36610-80071-000
Wiring harness, no.1
Finland |
36610-80071-000 |
— | ||
|
5
|
5
36610-80053-000
Wiring harness, no.1
Switzerland,Belgium,Germany,Holland,Italy,Austria |
36610-80053-000 |
— | ||
|
6
|
6
36717-79500-000
Cover, fuse box
|
36717-79500-000 |
— | ||
|
7
|
7
09481-05101-000 FUSE(5A) |
09481-05101-000 |
from US $2.82 |
||
|
8
|
8
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
9
|
9
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
10
|
10
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
11
|
11
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
11
|
11
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
12
|
12
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
13
|
13
36620-80321-000
Wiring harness, no.2
LHD |
36620-80321-000 |
— | ||
|
13
|
13
36620-80301-000
Wiring harness, no.2
RHD |
36620-80301-000 |
— | ||
|
13
|
13
36620-80311-000
Wiring harness, no.2
, |
36620-80311-000 |
— | ||
|
13
|
13
36620-80351-000
Wiring harness, no.2
Finland |
36620-80351-000 |
— | ||
|
13
|
13
36620-00341-000
Wiring harness, no.2
Switzerland,Belgium,Germany,Holland,Italy,Austria |
36620-00341-000 |
— | ||
|
14
|
14
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
15
|
15
36821-80000-000 REED WIRE,WINDOW EARTH |
36821-80000-000 |
US $6.40 |
||
|
16
|
16
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
16
|
16
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
17
|
17
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
18
|
18
36822-80001-000
REED WIRE,FUEL LEVEL GAUGE
|
36822-80001-000 |
— | ||
|
19
|
19
38500-80010-000
Horn assy
|
38500-80010-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
US $66.40 |
||
|
19
|
19
38500-80100-000
Horn assy
,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
38500-80100-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-60G00-000 HORN ASSY,,Finland,Switzerland,Belgium,,2,5,Italy,Austria |
38500-60G00-000 |
US $66.40 |
||
|
20
|
20
01107-08126-000
Bolt 8x12
|
01107-08126-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
21
|
21
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
22
|
22
33551-80002-000
CONDENSER,NOISE SUPPRESSOR
|
33551-80002-000 |
— | ||
|
23
|
23
39312-80000-000
Lead wire, noise suppresser
|
39312-80000-000 |
— | ||
| replacement | |||||
|
23
|
23
39312-82012-000 WIRE,NOISE SUPPR |
39312-82012-000 |
US $9.76 |
||
|
24
|
24
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
25
|
25
39100-80040-000
Radio assy
|
39100-80040-000 |
— | ||
|
25
|
25
39100-80060-000
Radio assy
|
39100-80060-000 |
— | ||
| replacement | |||||
|
25
|
25
99980-0435B-000
New Genuine Part
|
99980-0435B-000 |
— | ||
|
25
|
25
39100-80050-000
Radio assy
,Finland,Switzerland,Belgium,2,,5,Italy,Austria |
39100-80050-000 |
— | ||
|
26
|
26
39250-78300-000
アンテナアッシ
|
39250-78300-000 |
— | ||
| replacements | |||||
|
26
|
26
39250-80C00-000
ANTENNA ASSY
|
39250-80C00-000 |
— | ||
|
26
|
26
39250-80C10-000 ANTENNA ASSY |
39250-80C10-000 |
US $43.20 |
||
