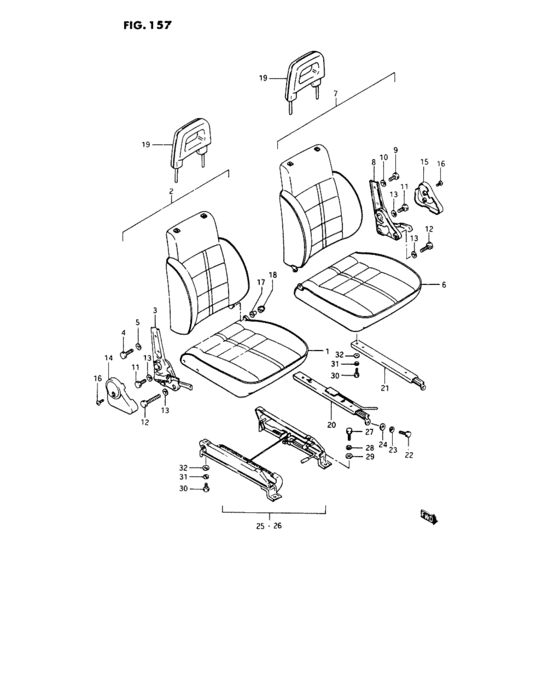

Front seat (SPECIAL EDITION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-83000-8RN
Cushion assy, front rh
|
85101-83000-8RN |
— | ||
|
1
|
1
85101-83000-9TR
Cushion assy, front rh
SPECIAL EDITION S |
85101-83000-9TR |
— | ||
|
2
|
2
85301-83171-8RN
Back assy, front rh
LHD, <-85301-83170-8RN |
85301-83171-8RN |
— | ||
|
2
|
2
85301-83171-9TR
Back assy, front rh
LHD, SPECIAL EDITION S |
85301-83171-9TR |
— | ||
|
2
|
2
85301-83220-8RN
Back assy, front rh
RHD |
85301-83220-8RN |
— | ||
|
3
|
3
85210-80302-000
Reclining assy, rh
LHD |
85210-80302-000 |
— | ||
|
3
|
3
85210-80290-000
Reclining assy, rh
RHD |
85210-80290-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-80290-5PK RECLINING,FR SEAT,RRHD |
85210-80290-5PK |
US $144.62 |
||
|
4
|
4
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
85102-83000-8RN
Cushion assy, front lh
|
85102-83000-8RN |
— | ||
|
6
|
6
85102-83000-9TR
Cushion assy, front lh
SPECIAL EDITION S |
85102-83000-9TR |
— | ||
|
7
|
7
85302-83220-8RN
Back assy, front lh
LHD |
85302-83220-8RN |
— | ||
|
7
|
7
85302-83220-9TR
Back assy, front lh
LHD, SPECIAL EDITION S |
85302-83220-9TR |
— | ||
|
7
|
7
85302-83170-8RN
Back assy, front lh
RHD |
85302-83170-8RN |
— | ||
|
8
|
8
85710-80290-000
Reclinateur cg
LHD |
85710-80290-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-80290-5PK
RECLINING,FR SEAT,L
LHD |
85710-80290-5PK |
— | ||
|
8
|
8
85710-83001-000
Reclining assy, lh
RHD |
85710-83001-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-83001-5PK
RECLINING,FR SEAT,L
RHD |
85710-83001-5PK |
— | ||
|
9
|
9
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
01107-10166-000
New Genuine Part
|
01107-10166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
12
|
12
01107-10406-000
Bolt
|
01107-10406-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
13
|
13
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
85221-82001-281
Cover, reclining, rh
|
85221-82001-281 |
— | ||
| replacement | |||||
|
14
|
14
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
15
|
15
85721-82001-281
Cover, reclining, lh
|
85721-82001-281 |
— | ||
| replacement | |||||
|
15
|
15
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
18
|
18
08313-21085-000
Nut
|
08313-21085-000 |
— | ||
| replacements | |||||
|
18
|
18
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
18
|
18
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
19
|
19
86401-83000-4CD
ヘッドレストレイントアッシ(グレー)
|
86401-83000-4CD |
— | ||
|
20
|
20
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,R |
86601-80134-000 |
US $65.87 |
||
|
21
|
21
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,L |
86602-80133-000 |
US $50.78 |
||
|
22
|
22
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
25
|
25
86701-83001-000
Wak in assy, rh
LHD, <-86701-83000 |
86701-83001-000 |
— | ||
| replacement | |||||
|
25
|
25
86701-83002-000
WALKIN ASSY,FR SEAT,R
LHD, <-86701-83000 |
86701-83002-000 |
— | ||
|
26
|
26
86901-83001-000
Wak in assy, lh
RHD, <-86901-33000 |
86901-83001-000 |
— | ||
| replacement | |||||
|
26
|
26
86901-83002-000
WALKIN ASSY,FR SEAT,L
RHD, <-86901-33000 |
86901-83002-000 |
— | ||
|
27
|
27
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
27
|
27
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
28
|
28
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
28
|
28
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
29
|
29
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
29
|
29
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
30
|
30
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
31
|
31
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
31
|
31
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
32
|
32
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
32
|
32
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
32
|
32
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
