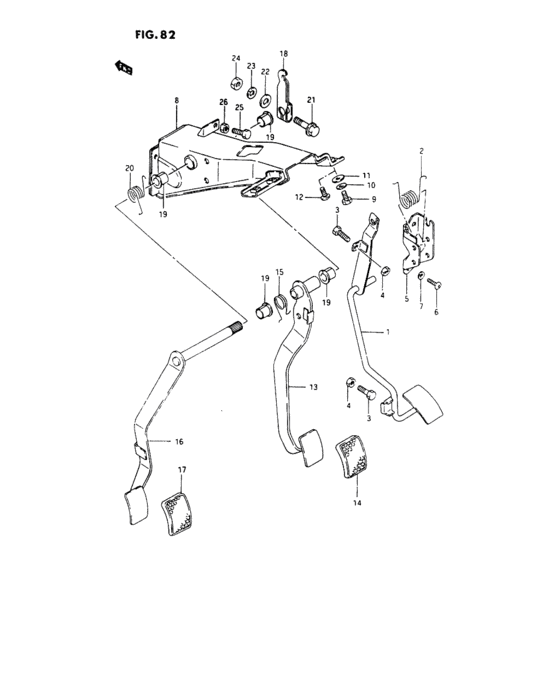

Pedal and pedal bracket (LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-83011-000
Pedale acceleration
|
49410-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-83013-000
PEDAL,ACCELERATOR
|
49410-83013-000 |
— | ||
|
2
|
2
09448-21003-000
SPRING
|
09448-21003-000 |
— | ||
| replacement | |||||
|
2
|
2
09448-21005-000 SPRING |
09448-21005-000 |
from US $1.64 |
||
|
3
|
3
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $1.04 |
||
|
4
|
4
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
49511-80110-000
Bracket, accelerator pedal
|
49511-80110-000 |
— | ||
| replacement | |||||
|
5
|
5
49511-80111-000
BRACKET,ACCELERATOR
|
49511-80111-000 |
— | ||
|
6
|
6
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
6
|
6
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
6
|
6
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
7
|
7
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
8
|
8
49710-83010-000
Bracket, pedal
|
49710-83010-000 |
— | ||
| replacement | |||||
|
8
|
8
49710-70A11-000
BRACKET,PEDAL
|
49710-70A11-000 |
— | ||
|
9
|
9
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
11
|
11
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
11
|
11
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
12
|
12
09125-08004-000
スクリュ,8X20
Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Italy, Austria, Saudi Arabia, Channel Islands, Israel |
09125-08004-000 |
— | ||
| replacement | |||||
|
12
|
12
09139-08015-000 SCREW(8X30)Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Italy, Austria, Saudi Arabia, Channel Islands, Israel |
09139-08015-000 |
from US $0.52 |
||
|
13
|
13
49610-80110-000
PEDAL,BRAKE
|
49610-80110-000 |
— | ||
|
14
|
14
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
14
|
14
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
15
|
15
09448-31030-000 SPRING |
09448-31030-000 |
from US $0.95 |
||
|
16
|
16
49810-80110-000
Pedal embrayage
|
49810-80110-000 |
— | ||
| replacement | |||||
|
16
|
16
49810-70A10-000
PEDAL,CLUTCH
|
49810-70A10-000 |
— | ||
|
17
|
17
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
17
|
17
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
18
|
18
49821-80110-000
Levier axe
|
49821-80110-000 |
— | ||
| replacement | |||||
|
18
|
18
49820-80110-000 ARM,CLUTCH PEDAL SHAFT |
49820-80110-000 |
US $21.26 |
||
|
19
|
19
09306-14004-000 BUSH |
09306-14004-000 |
from US $1.19 |
||
|
20
|
20
09448-30010-000 SPRING |
09448-30010-000 |
US $2.45 |
||
|
21
|
21
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
21
|
21
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
22
|
22
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
22
|
22
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
23
|
23
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
24
|
24
08310-12086-000
NUT
|
08310-12086-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
25
|
25
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $1.04 |
||
|
26
|
26
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
26
|
26
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
