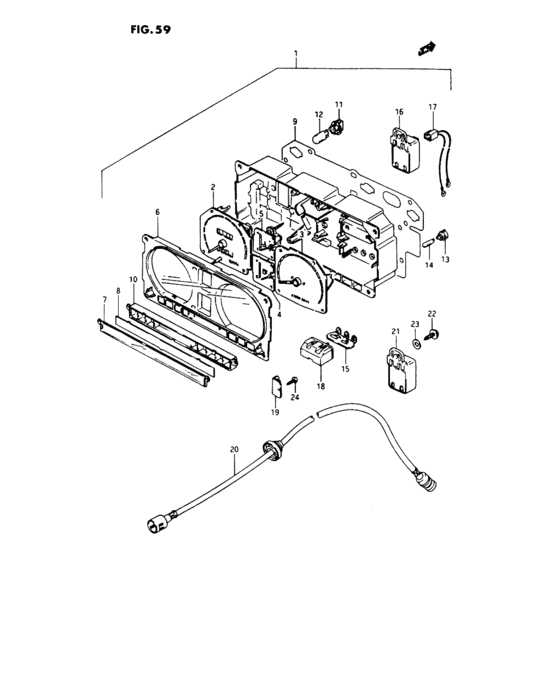

Speedometer (JX) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-80340-000
Speedometer assy
TYPE 1,TYPE 2 |
34100-80340-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-80770-000
SPEEDOMETER ASSY,COMB
TYPE 1,TYPE 2 |
34100-80770-000 |
— | ||
|
1
|
1
34100-80770-000
SPEEDOMETER ASSY,COMB
TYPE 3 |
34100-80770-000 |
— | ||
|
1
|
1
34100-80350-000
Speedometer assy
TYPE 1,TYPE 2 |
34100-80350-000 |
— | ||
|
1
|
1
34100-80780-000
Speedometer assy
TYPE 3 |
34100-80780-000 |
— | ||
|
1
|
1
34100-80370-000
Speedometer assy
TYPE 1,TYPE 2:, Finland, Norway, Sweden, Switzerland,,Belgium, Holland, Italy, Israel |
34100-80370-000 |
— | ||
|
1
|
1
34100-80720-000
Speedometer assy
TYPE 3:, Finland, Sweden, Belgium, Germany, Holland,Italy, Israel |
34100-80720-000 |
— | ||
|
1
|
1
34100-80530-000
Speedometer assy
TYPE 1,TYPE 2:Sweden, Switzerland W/CATALYZER |
34100-80530-000 |
— | ||
|
1
|
1
34100-80680-000
Speedometer assy
TYPE 3:Sweden, Switzerland W/CATALYZER |
34100-80680-000 |
— | ||
|
1
|
1
34100-80410-000
Speedometer assy
TYPE 1:Germany, Austria |
34100-80410-000 |
— | ||
|
1
|
1
34100-80430-000
Speedometer assy
TYPE 1,TYPE 2:Saudi Arabia |
34100-80430-000 |
— | ||
|
1
|
1
34100-80750-000
Speedometer assy
TYPE 3:Saudi Arabia |
34100-80750-000 |
— | ||
|
1
|
1
34100-80360-000
Speedometer assy
TYPE 1,TYPE 2: |
34100-80360-000 |
— | ||
|
1
|
1
34100-80670-000
Speedometer assy
TYPE 3:, Ireland |
34100-80670-000 |
— | ||
|
2
|
2
34120-80341-000
Body, speedometer
<-34120-80340 |
34120-80341-000 |
— | ||
|
2
|
2
34120-80351-000
Body, speedometer
<-34120-80350 |
34120-80351-000 |
— | ||
|
2
|
2
34120-80530-000
Body, speedometer
Sweden, Switzerland:W/CATALYZER |
34120-80530-000 |
— | ||
|
2
|
2
34120-80431-000
Body, speedometer
Saudi Arabia, <-34120-80430 |
34120-80431-000 |
— | ||
|
3
|
3
34220-80331-000
Body assy,tachometer
<-34220-80330 |
34220-80331-000 |
— | ||
|
4
|
4
34320-80331-000
BODY ASSY,FUEL METER
<-34320-80330 |
34320-80331-000 |
— | ||
|
5
|
5
34420-80331-000
Body assy,temp meter
<-34420-80330 |
34420-80331-000 |
— | ||
|
6
|
6
34112-80330-000
Plate,window
|
34112-80330-000 |
— | ||
|
7
|
7
34113-80330-000
GLASS,FR
|
34113-80330-000 |
— | ||
|
8
|
8
34181-80340-000
Lens
|
34181-80340-000 |
— | ||
|
8
|
8
34181-80360-000
Lens
, , Finland, Norway, Sweden, Switzerland, Belgium,,5, Hong Kong, Israel, 8 |
34181-80360-000 |
— | ||
|
8
|
8
34181-80530-000
Lens
Sweden, Switzerland:W/CATALYZER |
34181-80530-000 |
— | ||
|
8
|
8
34181-80410-000
Lens
TYPE 1:Germany, Austria |
34181-80410-000 |
— | ||
|
8
|
8
34181-80380-000
Lens
Saudi Arabia |
34181-80380-000 |
— | ||
|
9
|
9
34152-80340-000
Plate, print
|
34152-80340-000 |
— | ||
|
9
|
9
34152-80360-000
Plate, print
, , Finland, Norway, Sweden, Switzerland, Belgium,,5, Italy, Israel, 8 |
34152-80360-000 |
— | ||
|
9
|
9
34152-80530-000
Plate, print
Sweden, Switzerland:W/CATALYZER |
34152-80530-000 |
— | ||
|
9
|
9
34152-80410-000
Plate,print
TYPE 1:Germany, Austria |
34152-80410-000 |
— | ||
|
9
|
9
34152-80430-000
Plate, print
Saudi Arabia |
34152-80430-000 |
— | ||
|
10
|
10
34153-80330-000
カバー,バルブ
|
34153-80330-000 |
— | ||
|
11
|
11
34173-64010-000
ソケット
|
34173-64010-000 |
— | ||
| replacement | |||||
|
11
|
11
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
12
|
12
09471-12028-000 BULB(12V3.4W,T10) |
09471-12028-000 |
from US $1.98 |
||
|
13
|
13
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
14
|
14
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
15
|
15
34154-80360-000
Joined circuit
, , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, Italy, Austria, Israel, 8 |
34154-80360-000 |
— | ||
|
16
|
16
34160-67010-000
BUZZER ASSY
Saudi Arabia |
34160-67010-000 |
— | ||
|
17
|
17
34165-80380-000
Wire
Saudi Arabia |
34165-80380-000 |
— | ||
|
18
|
18
34180-82000-000
TIMER
Saudi Arabia |
34180-82000-000 |
— | ||
|
19
|
19
34130-80520-000
Switch assy
Sweden, Switzerland:W/CATALYZER |
34130-80520-000 |
— | ||
|
20
|
20
34910-80030-000
Cable, speedometer
LHD |
34910-80030-000 |
— | ||
| replacement | |||||
|
20
|
20
34910-80C60-000
CABLE ASSY,SPEEDOMETER
LHD |
34910-80C60-000 |
— | ||
|
20
|
20
34910-80020-000
Cable, speedometer
RHD |
34910-80020-000 |
— | ||
| replacement | |||||
|
20
|
20
34910-80C21-000 CABLE ASSY,SPEEDOMETERRHD |
34910-80C21-000 |
US $88.92 |
||
|
21
|
21
34160-67010-000
BUZZER ASSY
Saudi Arabia |
34160-67010-000 |
— | ||
|
22
|
22
03511-05166-000
Screw
Saudi Arabia |
03511-05166-000 |
— | ||
| replacement | |||||
|
22
|
22
03511-0516A-000 SCREWSaudi Arabia |
03511-0516A-000 |
from US $0.76 |
||
|
23
|
23
08322-21056-000
Washer
Saudi Arabia |
08322-21056-000 |
— | ||
| replacements | |||||
|
23
|
23
08322-0105B-000 WASHERSaudi Arabia |
08322-0105B-000 |
from US $0.76 |
||
|
23
|
23
08322-0105A-000 WASHERWasher, front Saudi Arabia |
08322-0105A-000 |
from US $0.80 |
||
|
24
|
24
02142-05086-000
スクリュ
Sweden, Switzerland:W/CATALYZER |
02142-05086-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0508A-000 SCREWScrew, cap Sweden, Switzerland:W/CATALYZER |
02142-0508A-000 |
from US $0.76 |
||
