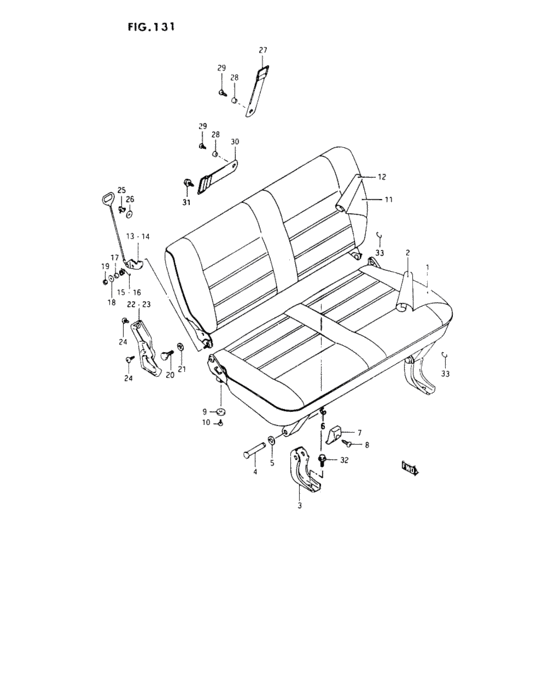

Rear seat (Q, W:JX) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-83850-000
Cushion sub assy, seat
|
87105-83850-000 |
— | ||
|
2
|
2
87180-83000-2AJ
Cover, cushion
GRAY,Q |
87180-83000-2AJ |
— | ||
|
2
|
2
87180-83000-2AK
Cover, cushion
BROWN,Q |
87180-83000-2AK |
— | ||
|
2
|
2
87180-83100-9YW
Cover, cushion
GRAY,W |
87180-83100-9YW |
— | ||
|
2
|
2
87180-83100-9YZ
Cover, cushion
BROWN,W |
87180-83100-9YZ |
— | ||
|
3
|
3
87271-83000-000 MALE, REAR SEAT HINGE |
87271-83000-000 |
US $12.96 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
6
|
6
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
6
|
6
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
6
|
6
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
7
|
7
87195-83000-000
STOPPER,REAR SEAT
|
87195-83000-000 |
— | ||
|
8
|
8
03141-05206-000
Screw 5x20
|
03141-05206-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
9
|
9
09320-06015-000 CUSHION |
09320-06015-000 |
US $1.67 |
||
|
10
|
10
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
87305-83800-000
BACK SUB SET,RR SEAT
|
87305-83800-000 |
— | ||
|
12
|
12
87380-83000-2AJ
Cover, back
GRAY,Q |
87380-83000-2AJ |
— | ||
|
12
|
12
87380-83000-2AK
Cover, back
BROWN,Q |
87380-83000-2AK |
— | ||
|
12
|
12
87380-83100-9YW
Trim comp,rear seat back
GRAY,W |
87380-83100-9YW |
— | ||
|
12
|
12
87380-83100-9YZ
Cover, back
BROWN,W |
87380-83100-9YZ |
— | ||
|
13
|
13
83610-83920-000
LEVER,RR SEAT BACK HINGE,R
|
83610-83920-000 |
— | ||
|
14
|
14
83910-83920-000
LEVER,RR SEAT BACK HINGE,L
|
83910-83920-000 |
— | ||
|
15
|
15
83914-73062-000
SPRING,HINGE,R
|
83914-73062-000 |
— | ||
|
16
|
16
83944-73062-000
SPRING,HINGE,L
|
83944-73062-000 |
— | ||
|
17
|
17
87325-83000-000
COLLAR,HINGE BOLT
|
87325-83000-000 |
— | ||
|
18
|
18
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
08310-22086-000
Nut
|
08310-22086-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
19
|
19
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
20
|
20
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
21
|
21
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
21
|
21
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
22
|
22
87229-83000-000
Cover, hinge outer rh
|
87229-83000-000 |
— | ||
| replacement | |||||
|
22
|
22
87229-83000-5PK COVER,RR SEAT BACK HINGE,R |
87229-83000-5PK |
US $15.06 |
||
|
23
|
23
87629-83000-000
COVER,RR SEAT BACK HINGE,L
|
87629-83000-000 |
— | ||
| replacement | |||||
|
23
|
23
87629-83000-5PK COVER,RR SEAT BACK HNG,L |
87629-83000-5PK |
US $15.06 |
||
|
24
|
24
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
25
|
25
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
26
|
26
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
27
|
27
87293-83000-000
Band, seat stopper
|
87293-83000-000 |
— | ||
|
28
|
28
87327-83000-000
COLLAR,SEAT STOPPER BAND
|
87327-83000-000 |
— | ||
|
29
|
29
03241-05145-000
New Genuine Part
|
03241-05145-000 |
— | ||
| replacement | |||||
|
29
|
29
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
30
|
30
87291-83000-000
Band, seat stopper
|
87291-83000-000 |
— | ||
|
31
|
31
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
32
|
32
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
32
|
32
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
33
|
33
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
