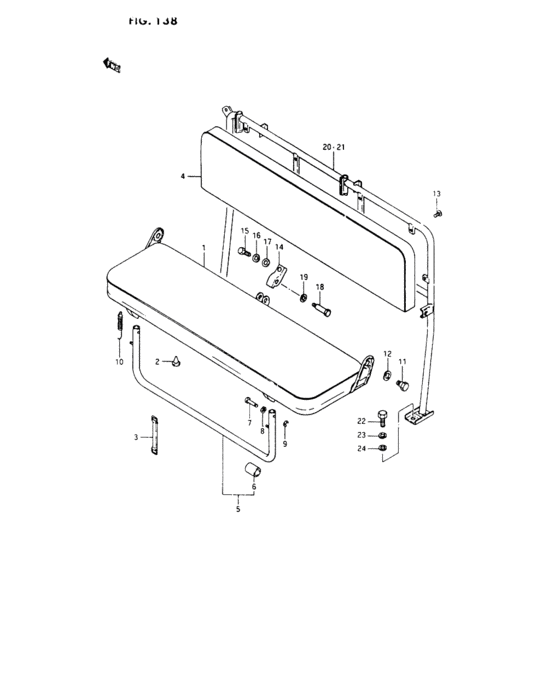

Rear seat (W:F) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-80300-2AL
Cushion assy, seat
GRAY |
87101-80300-2AL |
— | ||
|
1
|
1
87101-80300-2AN
Cushion assy, seat
BROWN |
87101-80300-2AN |
— | ||
|
1
|
1
87101-80400-2AM
Cushion assy, seat
GRAY,Saudi Arabia |
87101-80400-2AM |
— | ||
|
1
|
1
87101-80400-2AP
Cushion assy, seat
BROWN,Saudi Arabia |
87101-80400-2AP |
— | ||
|
2
|
2
09321-06016-000 CUSHION |
09321-06016-000 |
from US $1.76 |
||
|
3
|
3
87191-80300-000 BAND,RR SEAT |
87191-80300-000 |
US $11.30 |
||
|
4
|
4
87301-80301-2AL
Back assy, seat
GRAY |
87301-80301-2AL |
— | ||
|
4
|
4
87301-80301-2AN
Back assy, seat
BROWN |
87301-80301-2AN |
— | ||
|
4
|
4
87301-80401-2AM
Back assy, seat
GRAY,Saudi Arabia |
87301-80401-2AM |
— | ||
|
4
|
4
87301-80401-2AP
Back assy, seat
BROWN,Saudi Arabia |
87301-80401-2AP |
— | ||
|
5
|
5
87250-80300-000
Leg, cushion front
|
87250-80300-000 |
— | ||
|
6
|
6
87252-80300-000
CUSHION,REAR SEAT LEG
|
87252-80300-000 |
— | ||
|
7
|
7
09208-06003-000 Pin |
09208-06003-000 |
US $5.93 |
||
| replacement | |||||
|
7
|
7
87259-85510-000 PIN |
87259-85510-000 |
from US $3.09 |
||
|
8
|
8
09164-07001-000 WASHER |
09164-07001-000 |
US $7.70 |
||
|
9
|
9
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
9
|
9
08332-1104B-000 E RING |
08332-1104B-000 |
from US $2.45 |
||
|
9
|
9
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.80 |
||
|
10
|
10
09443-11008-000 SPRING |
09443-11008-000 |
US $34.20 |
||
|
11
|
11
09111-08045-000 BOLT(8X15) |
09111-08045-000 |
US $28.70 |
||
|
12
|
12
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
12
|
12
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.80 |
||
|
13
|
13
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
14
|
14
87831-80300-000 MAIL,RR SEAT CUSH HNG CTR |
87831-80300-000 |
US $4.38 |
||
|
15
|
15
01107-08167-000
Bolt
|
01107-08167-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
16
|
16
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
17
|
17
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
18
|
18
09111-06009-000
BOLT(6X52.5)
|
09111-06009-000 |
— | ||
|
19
|
19
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
20
|
20
87850-80300-000
Frame, back stay rh
|
87850-80300-000 |
— | ||
|
21
|
21
87950-80300-000
Frame, back stay lh
|
87950-80300-000 |
— | ||
|
22
|
22
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.80 |
||
