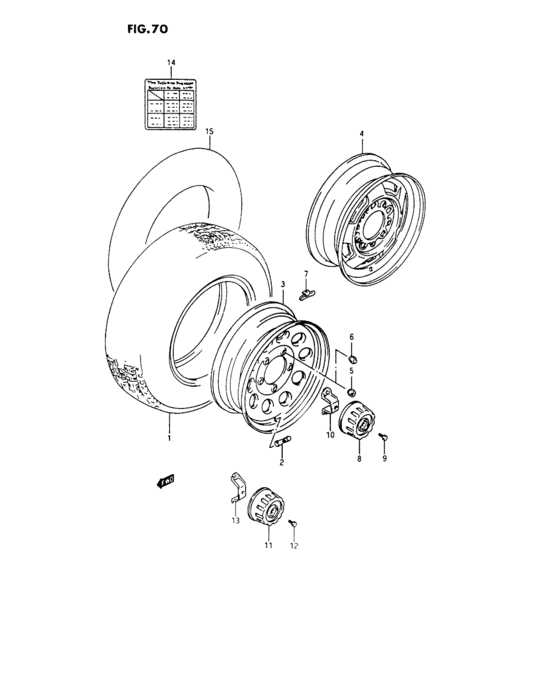

Tire and wheel (TIRE AND WHEEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-70A00-000
TIRE(205/70R15)
|
43110-70A00-000 |
— | ||
|
1
|
1
43110-70A10-000
Tire dunlop
,,Switzerland,8 |
43110-70A10-000 |
— | ||
|
1
|
1
43110-83310-000
Tire, p205/70r15
New Zealand |
43110-83310-000 |
— | ||
|
1
|
1
43110-83320-000
Tire, p205/70r15
New Zealand(WHITE LETTER) |
43110-83320-000 |
— | ||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
2
|
2
43130-75150-000
Valve
,,Switzerland,8 |
43130-75150-000 |
— | ||
| replacement | |||||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim ,,Switzerland,8 |
43130-78030-000 |
US $12.50 |
||
|
3
|
3
43210-70A00-26U
Wheel white
TYPE 4 |
43210-70A00-26U |
— | ||
| replacement | |||||
|
3
|
3
43210-70A01-26U
WHEEL(15X5 1/2JJ)
TYPE 4 |
43210-70A01-26U |
— | ||
|
3
|
3
43210-70A01-26U
WHEEL(15X5 1/2JJ)
TYPE 5 |
43210-70A01-26U |
— | ||
|
3
|
3
43210-70A10-000
Wheel
CHROMIUM PLATED, TYPE 4 |
43210-70A10-000 |
— | ||
| replacement | |||||
|
3
|
3
43210-70A11-000 WHEEL(15X5 1/2JJ)CHROMIUM PLATED, TYPE 4 |
43210-70A11-000 |
US $408.32 |
||
|
3
|
3
43210-70A11-000 WHEEL(15X5 1/2JJ)CHROMIUM PLATED, TYPE 5 |
43210-70A11-000 |
US $408.32 |
||
|
4
|
4
43210-80000-019
Wheel black
|
43210-80000-019 |
— | ||
|
4
|
4
43210-80000-26U
WHEEL(15X5 1/2JJ)
|
43210-80000-26U |
— | ||
|
5
|
5
09140-12026-000
ナット
|
09140-12026-000 |
— | ||
| replacement | |||||
|
5
|
5
09140-12042-000 NUT |
09140-12042-000 |
from US $1.33 |
||
|
6
|
6
09159-12024-000 NUTW/CHROMIUM PLATED WHEEL |
09159-12024-000 |
from US $2.40 |
||
|
7
|
7
43231-83000-000
ウエイト,ホイールバランス,30G
|
43231-83000-000 |
— | ||
| replacement | |||||
|
7
|
7
43221-60C50-000 BALANCE WEIGHT,WHEEL 30G |
43221-60C50-000 |
US $2.80 |
||
|
7
|
7
43232-83000-000
ウエイト,ホイールバランス,40G
|
43232-83000-000 |
— | ||
| replacement | |||||
|
7
|
7
43234-78130-000 WEIGHT,WHEEL BALANCE 40G |
43234-78130-000 |
US $4.12 |
||
|
7
|
7
43233-83000-000
ウエイト,ホイールバランス,50G
|
43233-83000-000 |
— | ||
|
7
|
7
43234-83000-000
ウエイト,ホイールバランス,60G
|
43234-83000-000 |
— | ||
|
7
|
7
43235-83000-000
ウエイト,ホイールバランス,70G
|
43235-83000-000 |
— | ||
|
7
|
7
43236-83000-000
ウエイト,ホイールバランス,80G
|
43236-83000-000 |
— | ||
|
8
|
8
43252-80000-000 CAP,WHEEL,CENTER |
43252-80000-000 |
US $32 |
||
|
9
|
9
09100-08253-000 BOLT(8X9) |
09100-08253-000 |
from US $0.92 |
||
|
10
|
10
43271-80000-000 HOLDER,CTR CAP RR |
43271-80000-000 |
US $25.60 |
||
|
11
|
11
43252-80000-000 CAP,WHEEL,CENTERN/LOCKING HUB |
43252-80000-000 |
US $32 |
||
|
12
|
12
09100-08253-000 BOLT(8X9)N/LOCKING HUB |
09100-08253-000 |
from US $0.92 |
||
|
13
|
13
43261-80000-000 HOLDER,CTR CAP FRN/LOCKING HUB |
43261-80000-000 |
US $46.40 |
||
|
14
|
14
79161-83300-000
Emblem, air indicator
|
79161-83300-000 |
— | ||
| replacement | |||||
|
14
|
14
79161-83301-000
PLACARD,TIRE INFORMATION
|
79161-83301-000 |
— | ||
|
15
|
15
43120-80010-000
Tube
OP |
43120-80010-000 |
— | ||
