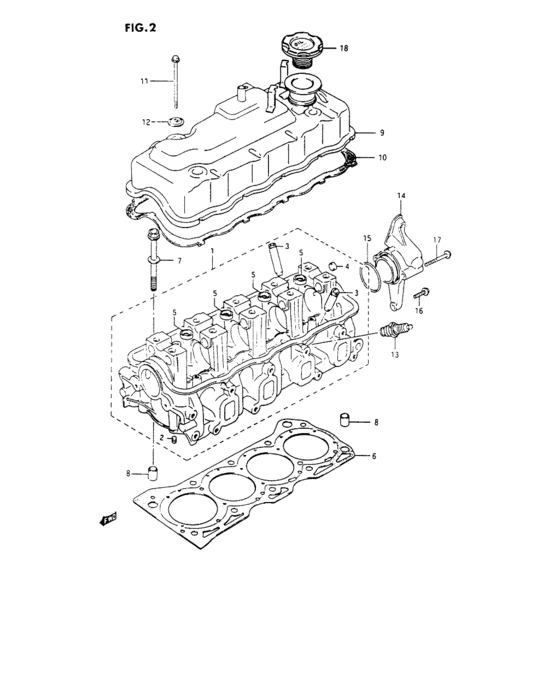

Cylinder head (CYLINDER HEAD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-82602-000
Head,cylinder
|
11110-82602-000 |
— | ||
|
2
|
2
11112-73001-000
プラグ,オイルベンチュリ
|
11112-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
US $12.80 |
||
|
4
|
4
09241-12002-000 PLUG |
09241-12002-000 |
US $12.90 |
||
|
5
|
5
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
6
|
6
11141-82611-000
Joint culasse
|
11141-82611-000 |
— | ||
| replacement | |||||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $50.85 |
||
|
7
|
7
09116-10118-000
Bolt
|
09116-10118-000 |
— | ||
| replacement | |||||
|
7
|
7
11119-82000-000 BOLT,CYLINDER HEADBolt, cylinder head |
11119-82000-000 |
US $10.64 |
||
|
7
|
7
11119-82000-000 BOLT,CYLINDER HEADBolt, cylinder head NOTE : SJ50-137447~ SJ51-110523~,JSA0SJ50000179766~,JSA0SJ51000115942~,JSA0SJ50V00143801~,JSA0SJ70000102054~,JSA0SJ70V00102019~ |
11119-82000-000 |
US $10.64 |
||
|
8
|
8
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11170-83010-000
Cover, cylinder head
|
11170-83010-000 |
— | ||
| replacement | |||||
|
9
|
9
11170-60A01-000
Cover,cylinder head
|
11170-60A01-000 |
— | ||
|
10
|
10
11189-82600-000 GASKET,CYL HEAD COVER |
11189-82600-000 |
from US $15.21 |
||
|
11
|
11
01537-06803-000 ボルト |
01537-06803-000 |
US $2.66 |
||
| replacement | |||||
|
11
|
11
01550-0680B-000 BOLT |
01550-0680B-000 |
from US $4.76 |
||
|
12
|
12
11180-78101-000
ワッシャ
|
11180-78101-000 |
— | ||
| replacement | |||||
|
12
|
12
11180-82010-000 WASHER,CYL HEAD COVER SEAL |
11180-82010-000 |
US $6.88 |
||
|
13
|
13
09482-00131-000 PLUG,SPARK(BP5ES) |
09482-00131-000 |
US $7.22 |
||
|
13
|
13
09482-00123-000
スパークプラグ,W16EXーU
|
09482-00123-000 |
— | ||
| replacement | |||||
|
13
|
13
09482-00131-000 PLUG,SPARK(BP5ES) |
09482-00131-000 |
US $7.22 |
||
|
13
|
13
09482-00377-000
Plug, spark
|
09482-00377-000 |
— | ||
|
13
|
13
09482-00155-000 PLUG,SPARK(NGK BPR5ES),,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Israel,8 |
09482-00155-000 |
from US $2.78 |
||
|
13
|
13
09482-00167-000 PLUG,SPARK(DENSO W16EXR-U),,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Israel,8 |
09482-00167-000 |
US $6.22 |
||
| replacement | |||||
|
13
|
13
09482-00155-000 PLUG,SPARK(NGK BPR5ES),,Finland,Norway,Sweden,Switzerland,Belgium,2,5,6,Sinagpore, Italy,Hong Kong, Austria,Israel,8 |
09482-00155-000 |
from US $2.78 |
||
|
14
|
14
11161-83000-000 CASE,DISTRIBUTOR |
11161-83000-000 |
US $203.20 |
||
|
15
|
15
09280-56004-000 O RING(D:1.9,ID:55.5) |
09280-56004-000 |
from US $1.48 |
||
|
16
|
16
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
17
|
17
01517-06506-000
Vis
|
01517-06506-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
17
|
17
01550-0650A-000 BOLTBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
18
|
18
16920-60A00-000
キャップ,オイルフィラ
|
16920-60A00-000 |
— | ||
| replacement | |||||
|
18
|
18
16920-60A02-000 Cap,oil filler |
16920-60A02-000 |
from US $14.31 |
||
