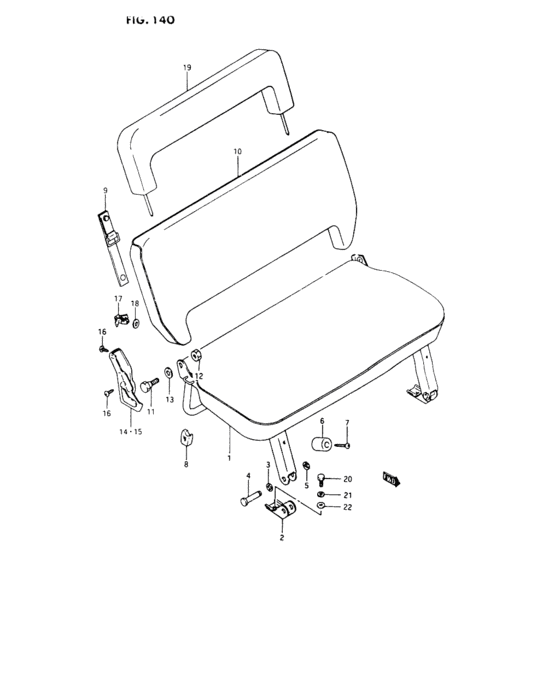

3rd rear seat (W:RESIN TOP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88101-83050-2JM
Cushion assy, seat
GRAY |
88101-83050-2JM |
— | ||
|
1
|
1
88101-83050-2JN
Cushion assy, seat
BROWN |
88101-83050-2JN |
— | ||
|
2
|
2
88271-83050-000
Male, seat hinge
|
88271-83050-000 |
— | ||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
7
|
7
03142-05209-000
Screw
|
03142-05209-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
87295-80470-000
Cushion,rr seat cush stopper
|
87295-80470-000 |
— | ||
|
9
|
9
88291-83050-000
Band
|
88291-83050-000 |
— | ||
|
10
|
10
88301-83050-2JM
Back assy, seat
GRAY |
88301-83050-2JM |
— | ||
|
10
|
10
88301-83050-2JN
Back assy, seat
BROWN |
88301-83050-2JN |
— | ||
|
11
|
11
87271-85500-000
ボルト,リヤシートバックピボット
|
87271-85500-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
12
|
12
08310-22086-000
Nut
|
08310-22086-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
12
|
12
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
13
|
13
08322-21086-000
Washer 8mm
|
08322-21086-000 |
— | ||
| replacements | |||||
|
13
|
13
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
14
|
14
88229-83050-281
COVER,3RD SEAT BACK HINGE,R
|
88229-83050-281 |
— | ||
|
15
|
15
88629-83050-281
COVER,3RD SEAT BACK HINGE,L
|
88629-83050-281 |
— | ||
|
16
|
16
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
17
|
17
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.60 |
||
|
18
|
18
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
19
|
19
88880-83050-2JP
Support assy, seat head
BLACK |
88880-83050-2JP |
— | ||
|
19
|
19
88880-83050-2JR
Support assy, seat head
BROWN |
88880-83050-2JR |
— | ||
|
20
|
20
01107-08206-000
Bolt
|
01107-08206-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
21
|
21
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
22
|
22
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
22
|
22
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
22
|
22
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
