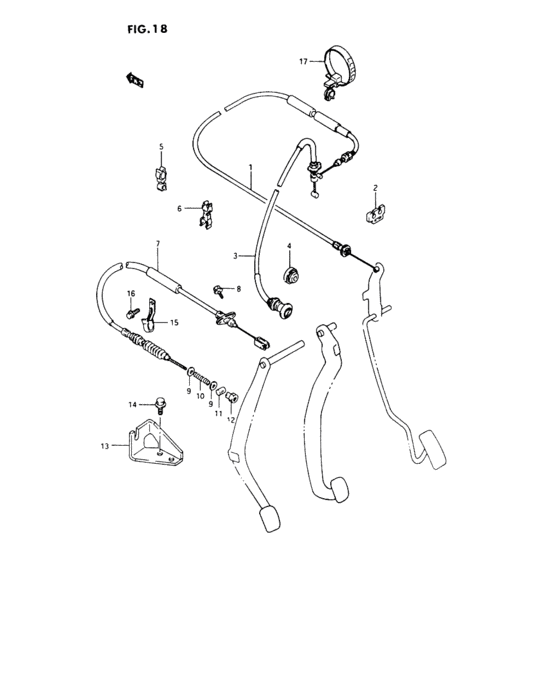

Control cable (CONTROL CABLE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-83010-000 CABLE ASSY,ACCELLHD |
15910-83010-000 |
US $27.83 |
||
|
1
|
1
15910-83000-000
CABLE ASSY,ACCEL
RHD |
15910-83000-000 |
— | ||
|
1
|
1
15910-83300-000
Cable assy, accel
Sweden,Switzerland Austria:W/CATALYZER |
15910-83300-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-8330V-000
CABLE ASSY,ACCEL
Sweden,Switzerland Austria:W/CATALYZER |
15910-8330V-000 |
— | ||
|
2
|
2
15991-83000-000
CLAMP,ACCEL CABLE
LHD |
15991-83000-000 |
— | ||
|
3
|
3
15930-83010-000
Cable assy, choke
LHD |
15930-83010-000 |
— | ||
| replacement | |||||
|
3
|
3
15930-60A3V-000
CABLE,CHOKE
LHD |
15930-60A3V-000 |
— | ||
|
3
|
3
15930-83000-000
Cable assy, choke
RHD |
15930-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
15930-60A2V-000
CABLE,CHOKE
RHD |
15930-60A2V-000 |
— | ||
|
4
|
4
15939-83000-000 PLUG,CHOKE CABLE,,Finland,Norway,Sweden,Switzerland,Belgium,2,5,Sinagpore, Italy,Hong Kong, Austria,Greece,Saudi Arabia, Israel,8,Iceland |
15939-83000-000 |
US $1.52 |
||
|
5
|
5
09408-00049-000 CLAMPLHD |
09408-00049-000 |
US $1.28 |
||
|
6
|
6
09408-00085-000 CLAMPSweden,Switzerland Austria:W/CATALYZER |
09408-00085-000 |
from US $1.76 |
||
|
7
|
7
23710-83023-000
Cable assy, clutch
LHD |
23710-83023-000 |
— | ||
| replacement | |||||
|
7
|
7
23710-83024-000 CABLE ASSY,CLUTCHLHD |
23710-83024-000 |
US $67.37 |
||
|
7
|
7
23710-83012-000
Cable assy, clutch
RHD |
23710-83012-000 |
— | ||
| replacement | |||||
|
7
|
7
23710-83013-000 CABLE ASSY,CLUTCHRHD |
23710-83013-000 |
US $133.60 |
||
|
8
|
8
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.22 |
||
|
11
|
11
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
12
|
12
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
12
|
12
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
13
|
13
23911-83001-000
Bracket, clutch cable
|
23911-83001-000 |
— | ||
| replacement | |||||
|
13
|
13
23911-83003-000 BRACKET,CLUTCH CABLE |
23911-83003-000 |
US $13.51 |
||
|
14
|
14
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
15
|
15
23915-83000-000
CLAMP,CLUTCH CABLE,NO.1
LHD |
23915-83000-000 |
— | ||
|
16
|
16
01517-06103-000
ボルト
LHD |
01517-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610A-000 BOLTLHD |
01550-0610A-000 |
from US $0.80 |
||
|
16
|
16
01550-0610B-000 BoltBolt LHD |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
09403-12310-000 CLAMPRHD |
09403-12310-000 |
US $35.30 |
||
