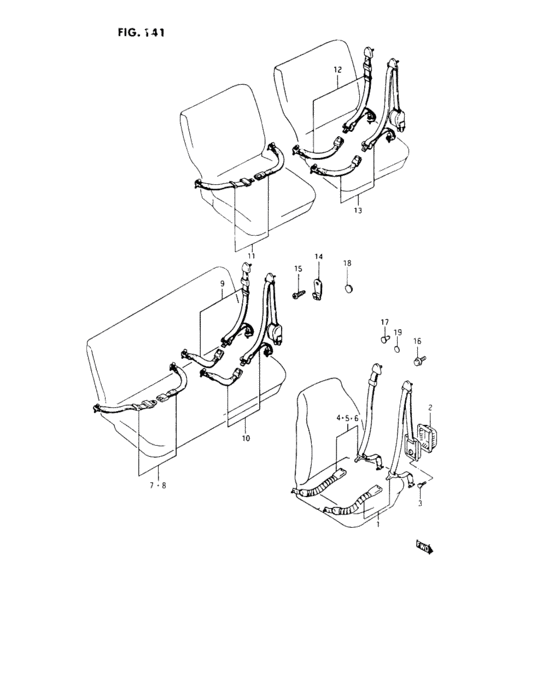

Seat belt (SEAT BELT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-70A40-382
Belt assy, front
BLACK,E.L.R |
84901-70A40-382 |
— | ||
| replacements | |||||
|
1
|
1
84910-70A40-000 BUCKLE ASSY,FR BELTBLACK,E.L.R |
84910-70A40-000 |
US $37.17 |
||
|
1
|
1
84920-70A40-382 TONGUE ASSY,FR BELT,RBLACK,E.L.R |
84920-70A40-382 |
US $116.66 |
||
|
1
|
1
84901-70A40-5DD
Belt assy, front
BROWN,E.L.R |
84901-70A40-5DD |
— | ||
| replacements | |||||
|
1
|
1
84910-70A40-000 BUCKLE ASSY,FR BELTBROWN,E.L.R |
84910-70A40-000 |
US $37.17 |
||
|
1
|
1
84920-70A40-382 TONGUE ASSY,FR BELT,RBROWN,E.L.R |
84920-70A40-382 |
US $116.66 |
||
|
2
|
2
84924-80130-000 COVER,FR SEAT BELT |
84924-80130-000 |
US $11.20 |
||
|
3
|
3
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
3
|
3
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
3
|
3
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
4
|
4
84901-70A60-382
Belt assy, front
BLACK,3 POINT |
84901-70A60-382 |
— | ||
| replacements | |||||
|
4
|
4
84910-70A40-000 BUCKLE ASSY,FR BELTBLACK,3 POINT |
84910-70A40-000 |
US $37.17 |
||
|
4
|
4
84920-70A60-382
TONGUE ASSY,FR BELT,R
BLACK,3 POINT |
84920-70A60-382 |
— | ||
|
4
|
4
84901-70A60-5DD
Belt assy, front
BROWN,3 POINT |
84901-70A60-5DD |
— | ||
| replacements | |||||
|
4
|
4
84910-70A40-000 BUCKLE ASSY,FR BELTBROWN,3 POINT |
84910-70A40-000 |
US $37.17 |
||
|
4
|
4
84920-70A60-382
TONGUE ASSY,FR BELT,R
BROWN,3 POINT |
84920-70A60-382 |
— | ||
|
5
|
5
84901-70A70-382
Belt assy, front rh
BLACK,Saudi Arabia,3 POINT,W/WARNING |
84901-70A70-382 |
— | ||
|
5
|
5
84901-70A70-5DD
Belt assy, front rh
BROWN,Saudi Arabia,3 POINT,W/WARNING |
84901-70A70-5DD |
— | ||
|
6
|
6
84902-70A70-382
Belt assy, front lh
BLACK,Saudi Arabia,3 POINT,W/WARNING |
84902-70A70-382 |
— | ||
|
6
|
6
84902-70A70-5DD
Belt assy, front lh
BROWN,Saudi Arabia,3 POINT,W/WARNING |
84902-70A70-5DD |
— | ||
|
7
|
7
84904-83050-382
Belt assy, rear
BLACK,Q,V,2 POINT |
84904-83050-382 |
— | ||
| replacement | |||||
|
7
|
7
84904-83051-382 BELT ASSY,RR SEATBLACK,Q,V,2 POINT |
84904-83051-382 |
US $156.03 |
||
|
7
|
7
84904-83050-5DD
Belt assy, rear
BROWN,Q,V,2 POINT |
84904-83050-5DD |
— | ||
| replacement | |||||
|
7
|
7
84904-83051-382 BELT ASSY,RR SEATBROWN,Q,V,2 POINT |
84904-83051-382 |
US $156.03 |
||
|
8
|
8
84904-80190-382
Belt assy, rear
BLACK,W,2 POINT |
84904-80190-382 |
— | ||
|
8
|
8
84904-80190-5DD
Belt assy, rear
BROWN,W,2 POINT |
84904-80190-5DD |
— | ||
|
9
|
9
84904-83020-382
Belt assy, rear
BLACK,3 POINT |
84904-83020-382 |
— | ||
|
9
|
9
84904-83020-5DD
Belt assy, rear
BROWN,3 POINT |
84904-83020-5DD |
— | ||
|
10
|
10
84904-83030-382
Belt assy, rear
BLACK,E.L.R. |
84904-83030-382 |
— | ||
| replacement | |||||
|
10
|
10
84904-83090-382
Belt assy,rear seat
BLACK,E.L.R. |
84904-83090-382 |
— | ||
|
10
|
10
84904-83030-5DD
Belt assy, rear
BROWN,E.L.R |
84904-83030-5DD |
— | ||
| replacement | |||||
|
10
|
10
84904-83090-382
Belt assy,rear seat
BROWN,E.L.R |
84904-83090-382 |
— | ||
|
11
|
11
84904-83040-382
Belt assy, rear
BLACK,2 POINT,SEPARATE SEAT |
84904-83040-382 |
— | ||
| replacement | |||||
|
11
|
11
84904-83041-382
Belt assy,rear seat
BLACK,2 POINT,SEPARATE SEAT |
84904-83041-382 |
— | ||
|
11
|
11
84904-83040-5DD
Belt assy, rear
BROWN,2 POINT,SEPARATE SEAT |
84904-83040-5DD |
— | ||
| replacement | |||||
|
11
|
11
84904-83041-382
Belt assy,rear seat
BROWN,2 POINT,SEPARATE SEAT |
84904-83041-382 |
— | ||
|
12
|
12
84904-83060-382
Belt assy, rear
BLACK,3 POINT,SEPARATE SEAT |
84904-83060-382 |
— | ||
|
12
|
12
84904-83060-5DD
Belt assy, rear
BROWN,3 POINT,SEPARATE SEAT |
84904-83060-5DD |
— | ||
|
13
|
13
84904-83070-382
Belt assy, rear
BLACK,E.L.R,SEPARATE SEAT |
84904-83070-382 |
— | ||
| replacement | |||||
|
13
|
13
84904-83071-382
BELT ASSY,RR SEAT
BLACK,E.L.R,SEPARATE SEAT |
84904-83071-382 |
— | ||
|
13
|
13
84904-83070-5DD
Belt assy, rear
BROWN,E.L.R,SEPARATE SEAT |
84904-83070-5DD |
— | ||
| replacement | |||||
|
13
|
13
84904-83071-382
BELT ASSY,RR SEAT
BROWN,E.L.R,SEPARATE SEAT |
84904-83071-382 |
— | ||
|
14
|
14
84961-83000-000
Hanger,rear seat belt
2 POINT |
84961-83000-000 |
— | ||
|
15
|
15
09132-05031-000
スクリュ
2 POINT |
09132-05031-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0512A-000 SCREW2 POINT |
03211-0512A-000 |
US $0.80 |
||
|
16
|
16
09103-12020-000
ボルト
N/FRONT SEAT BELT |
09103-12020-000 |
— | ||
| replacement | |||||
|
16
|
16
09103-12040-000 BOLT(12X22)N/FRONT SEAT BELT |
09103-12040-000 |
US $1.92 |
||
|
17
|
17
09250-10017-000 PLUG(OD:22)N/SEAT BELT |
09250-10017-000 |
US $17.70 |
||
|
18
|
18
09250-16006-000
Cap
N/SEAT BELT |
09250-16006-000 |
— | ||
| replacement | |||||
|
18
|
18
09250-16008-000 PLUG(OD:24)N/SEAT BELT |
09250-16008-000 |
US $1.44 |
||
|
19
|
19
67627-70000-000
シール,ホール
N/SEAT BELT |
67627-70000-000 |
— | ||
| replacement | |||||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/SEAT BELT |
84761-50X50-000 |
US $6.72 |
||
