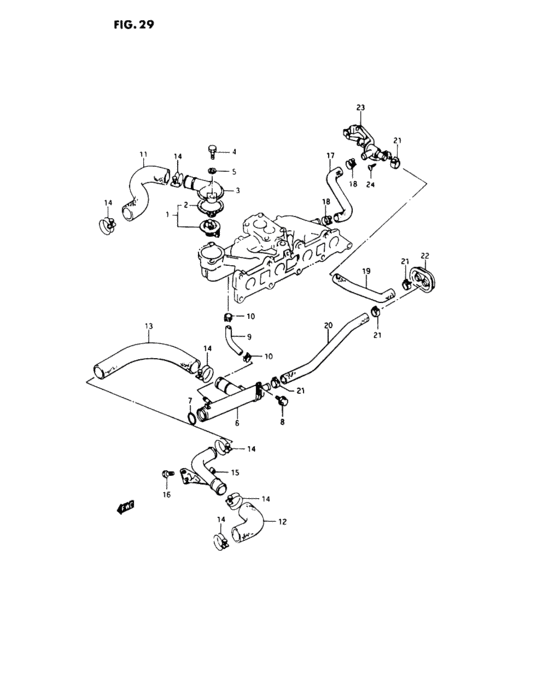

Water hose (LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-83821-000
Thermostat, water
|
17600-83821-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-85831-000 THERMOSTAT SET,WATER |
17600-85831-000 |
US $24.80 |
||
|
1
|
1
17600-83831-000
Thermostat set, water
Finland,Norway,Sweden |
17600-83831-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-83851-H17 THERMOSTAT SET,WATERFinland,Norway,Sweden |
17600-83851-H17 |
US $24.66 |
||
|
1
|
1
17600-83850-H17
Thremostat, water
Sweden |
17600-83850-H17 |
— | ||
| replacement | |||||
|
1
|
1
17600-83851-H17 THERMOSTAT SET,WATERSweden |
17600-83851-H17 |
US $24.66 |
||
|
2
|
2
17569-80000-000
Joint thermostat
|
17569-80000-000 |
— | ||
| replacement | |||||
|
2
|
2
17569-60A10-000 GASKET,THERMO CAP |
17569-60A10-000 |
US $4.32 |
||
|
2
|
2
17569-60A00-000
ガスケット,サーモキャップ
Sweden |
17569-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
17569-60A10-000 GASKET,THERMO CAPSweden |
17569-60A10-000 |
US $4.32 |
||
|
3
|
3
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
US $11.10 |
||
|
4
|
4
01107-08303-000
ボルト
|
01107-08303-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
5
|
5
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
17550-83001-000
Pipe, water inlet
W/HEATER |
17550-83001-000 |
— | ||
| replacements | |||||
|
6
|
6
09356-75141-600 HOSE(7.5X14.5X600)W/HEATER |
09356-75141-600 |
from US $6.30 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet W/HEATER |
09401-12410-000 |
from US $1.13 |
||
|
6
|
6
17550-83X50-000 PIPE,WATER INLETW/HEATER |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
09356-75141-200
New Genuine Part
W/HEATER |
09356-75141-200 |
— | ||
|
6
|
6
17550-83011-000
Pipe, water inlet
N/HEATER |
17550-83011-000 |
— | ||
| replacements | |||||
|
6
|
6
09356-75141-600 HOSE(7.5X14.5X600)N/HEATER |
09356-75141-600 |
from US $6.30 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet N/HEATER |
09401-12410-000 |
from US $1.13 |
||
|
6
|
6
09401-20406-000 CLIPN/HEATER |
09401-20406-000 |
US $1.98 |
||
|
6
|
6
17550-83X50-000 PIPE,WATER INLETN/HEATER |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
17879-84300-000 BLINDN/HEATER |
17879-84300-000 |
US $8.98 |
||
|
6
|
6
09401-20404-000
Clip, cleaner hose no.1
N/HEATER |
09401-20404-000 |
— | ||
|
6
|
6
09356-75141-200
New Genuine Part
N/HEATER |
09356-75141-200 |
— | ||
|
6
|
6
17550-83021-000
Tuyau
W/HEATER Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Austria,Saudi Arabia, Israel |
17550-83021-000 |
— | ||
| replacements | |||||
|
6
|
6
17550-83X50-000 PIPE,WATER INLETW/HEATER Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Austria,Saudi Arabia, Israel |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
09356-75141-600 HOSE(7.5X14.5X600)W/HEATER Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Austria,Saudi Arabia, Israel |
09356-75141-600 |
from US $6.30 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet W/HEATER Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Austria,Saudi Arabia, Israel |
09401-12410-000 |
from US $1.13 |
||
|
6
|
6
09356-75141-200
New Genuine Part
W/HEATER Finland,Norway,Sweden,Switzerland,Belgium,Germany,Holland,Denmark,Italy,Austria,Saudi Arabia, Israel |
09356-75141-200 |
— | ||
|
6
|
6
17550-83031-000
Pipe, water inlet
N/HEATER, Saudi Arabia |
17550-83031-000 |
— | ||
| replacements | |||||
|
6
|
6
09356-75141-600 HOSE(7.5X14.5X600)N/HEATER, Saudi Arabia |
09356-75141-600 |
from US $6.30 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet N/HEATER, Saudi Arabia |
09401-12410-000 |
from US $1.13 |
||
|
6
|
6
09401-20406-000 CLIPN/HEATER, Saudi Arabia |
09401-20406-000 |
US $1.98 |
||
|
6
|
6
17550-83X50-000 PIPE,WATER INLETN/HEATER, Saudi Arabia |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
17879-84300-000 BLINDN/HEATER, Saudi Arabia |
17879-84300-000 |
US $8.98 |
||
|
6
|
6
09401-20404-000
Clip, cleaner hose no.1
N/HEATER, Saudi Arabia |
09401-20404-000 |
— | ||
|
6
|
6
09356-75141-200
New Genuine Part
N/HEATER, Saudi Arabia |
09356-75141-200 |
— | ||
|
7
|
7
09280-28008-000 O RING(D:3.5,ID:27.7)<-09280-28006 |
09280-28008-000 |
from US $1.28 |
||
|
8
|
8
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
8
|
8
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
17859-83001-000
Hose, water dypass
|
17859-83001-000 |
— | ||
| replacements | |||||
|
9
|
9
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
from US $6.30 |
||
|
9
|
9
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.13 |
||
|
9
|
9
09356-75141-200
New Genuine Part
|
09356-75141-200 |
— | ||
|
10
|
10
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
11
|
11
17841-83000-000
Hose, radiator inlet
|
17841-83000-000 |
— | ||
| replacement | |||||
|
11
|
11
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
from US $21.20 |
||
|
12
|
12
17851-83000-000
ホース,ラジエータアウトレット,NO.1
|
17851-83000-000 |
— | ||
| replacement | |||||
|
12
|
12
17851-60A00-000 HOSE,RADIATOR OUTLET NO.1 |
17851-60A00-000 |
from US $14.90 |
||
|
13
|
13
17852-83000-000 HOSE,RADIATOR OUTLET NO.2 |
17852-83000-000 |
US $35.72 |
||
|
14
|
14
09400-36311-000
クランプ
|
09400-36311-000 |
— | ||
| replacement | |||||
|
14
|
14
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
15
|
15
17860-83000-000
Pipe, radiator outlet
|
17860-83000-000 |
— | ||
| replacement | |||||
|
15
|
15
17860-8300V-000 PIPE,RDTR OUTLET |
17860-8300V-000 |
US $36.80 |
||
|
16
|
16
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
17871-83010-000
Hose, inlet to valve
W/HEATER |
17871-83010-000 |
— | ||
| replacement | |||||
|
17
|
17
17871-80C00-000 HOSE,HEATER INTAKE TO VALVEW/HEATER |
17871-80C00-000 |
US $22.80 |
||
|
18
|
18
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
|
19
|
19
17872-83010-000
Hose, valve to heater
W/HEATER |
17872-83010-000 |
— | ||
| replacements | |||||
|
19
|
19
17872-83011-000
HOSE,HEATER VALVE TO HEATER
W/HEATER |
17872-83011-000 |
— | ||
|
19
|
19
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.26 |
||
|
20
|
20
17873-83000-000
ホース,ヒータツーインレット
W/HEATER |
17873-83000-000 |
— | ||
| replacements | |||||
|
20
|
20
17873-83001-000 HOSE,HEATER HEATER TO INLETW/HEATER |
17873-83001-000 |
US $25.08 |
||
|
20
|
20
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.26 |
||
|
21
|
21
09401-20402-000
Clip, air hose no.3
W/HEATER |
09401-20402-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-20406-000 CLIPW/HEATER |
09401-20406-000 |
US $1.98 |
||
|
22
|
22
74812-83001-000 GROMMET,HEATER HOSEW/HEATER |
74812-83001-000 |
US $12.32 |
||
|
22
|
22
74812-80000-000
Grommet, heater hose
N/HEATER |
74812-80000-000 |
— | ||
|
23
|
23
74710-83020-000
VALVE,WATER
W/HEATER |
74710-83020-000 |
— | ||
|
24
|
24
03241-06126-000
New Genuine Part
W/HEATER |
03241-06126-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0612A-000 SCREWW/HEATER |
03241-0612A-000 |
US $0.80 |
||
