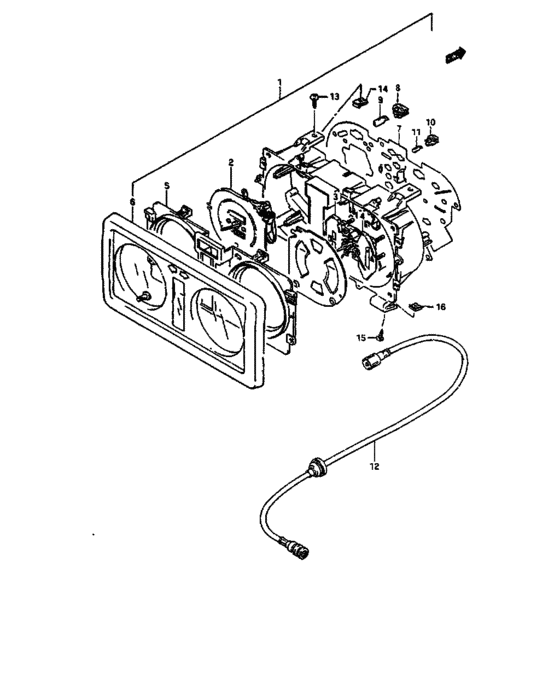

Speedometer (N/TACHOMETER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-71A91-000
Speedometer assy
|
34100-71A91-000 |
— | ||
|
2
|
2
34120-51C32-000
Body, speedometer
|
34120-51C32-000 |
— | ||
|
3
|
3
34320-70A30-000
BODY ASSY,FUEL METER
|
34320-70A30-000 |
— | ||
|
4
|
4
34420-70A30-000
BODY ASSY,TEMP METER
|
34420-70A30-000 |
— | ||
|
5
|
5
34112-70A30-000
プレート,ウィンド
|
34112-70A30-000 |
— | ||
|
6
|
6
34113-70A31-000
Glass, front
|
34113-70A31-000 |
— | ||
|
7
|
7
34152-71A90-000
Plate, meter print
|
34152-71A90-000 |
— | ||
|
8
|
8
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
9
|
9
09471-12028-000 BULB(12V3.4W,T10) |
09471-12028-000 |
from US $1.98 |
||
|
10
|
10
34176-78900-000
Socket
|
34176-78900-000 |
— | ||
|
11
|
11
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
12
|
12
34910-80C21-000 CABLE ASSY,SPEEDOMETER<-34910-80C20 |
34910-80C21-000 |
US $88.92 |
||
|
13
|
13
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
|
14
|
14
09148-05005-000 NUT |
09148-05005-000 |
US $1.28 |
||
|
15
|
15
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
15
|
15
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
16
|
16
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
