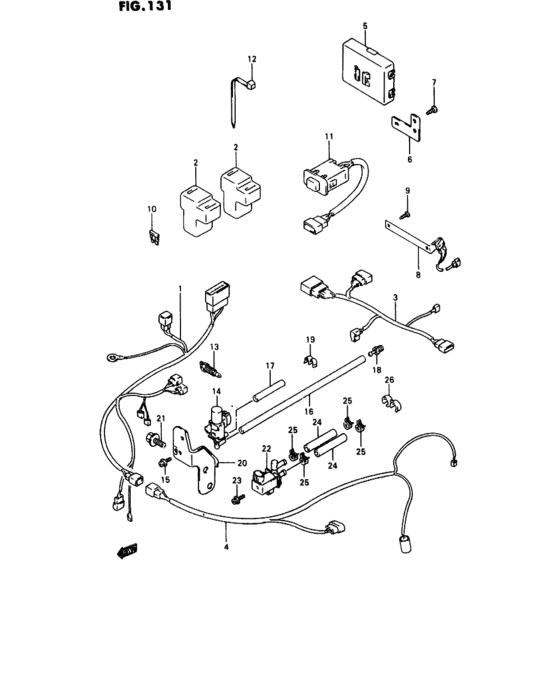

Air con harness and vacuum hose (AIR CON HARNESS AND VACUUM HOSE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95531-83C90-000
Harness, engine room
LHD:W/CARBURETOR |
95531-83C90-000 |
— | ||
|
1
|
1
95531-83C80-000
Harness, engine room
LHD:W/FUEL INJECTION |
95531-83C80-000 |
— | ||
|
1
|
1
95531-83C50-000
Harness, engine room
RHD |
95531-83C50-000 |
— | ||
|
2
|
2
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $45.60 |
||
|
3
|
3
95532-83C90-000
Harness, inner
LHD:W/CARBURETOR |
95532-83C90-000 |
— | ||
|
3
|
3
95532-83C80-000
Harness, inner
LHD:W/FUEL INJECTION |
95532-83C80-000 |
— | ||
|
3
|
3
95532-83C50-000
Harness, inner
RHD:EXCEPT Australia |
95532-83C50-000 |
— | ||
|
3
|
3
95532-83C70-000
Harness, inner
Australia |
95532-83C70-000 |
— | ||
|
4
|
4
95533-83C30-000
ハーネス,ジョイント
|
95533-83C30-000 |
— | ||
|
5
|
5
95510-83C40-000
CONTROLLER,A/C
|
95510-83C40-000 |
— | ||
|
6
|
6
95591-83C40-000
Bracket, controller
RHD |
95591-83C40-000 |
— | ||
|
7
|
7
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
8
|
8
95528-83C80-000
Volume assy
LHD |
95528-83C80-000 |
— | ||
|
9
|
9
03142-04123-000
スクリュ
|
03142-04123-000 |
— | ||
| replacement | |||||
|
9
|
9
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $1.93 |
||
|
10
|
10
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
11
|
11
95571-85501-000
SWITCH,AIR CON
|
95571-85501-000 |
— | ||
|
12
|
12
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
13
|
13
95573-60A50-000
SWITCH,WATER TEMP
|
95573-60A50-000 |
— | ||
|
14
|
14
18117-80F00-000
VALVE,VACUUM SWITCHING
W/CARBURETOR |
18117-80F00-000 |
— | ||
|
15
|
15
02162-05083-000
Bolt
|
02162-05083-000 |
— | ||
| replacement | |||||
|
15
|
15
02162-0508A-000 SCREW |
02162-0508A-000 |
from US $2.52 |
||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:601->70 |
09355-35754-601 |
— | ||
| replacement | |||||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:601->70 |
09355-35006-601 |
from US $6.08 |
||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:601->340 |
09355-35754-601 |
— | ||
| replacement | |||||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:601->340 |
09355-35006-601 |
from US $6.08 |
||
|
18
|
18
09362-09009-000 UNION |
09362-09009-000 |
US $100.10 |
||
|
19
|
19
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
20
|
20
95169-83C50-000
Bracket, vsv
|
95169-83C50-000 |
— | ||
|
21
|
21
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
21
|
21
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $3.55 |
||
|
22
|
22
95161-72F00-000
VSV,IDLE UP
W/FUEL INJECTION |
95161-72F00-000 |
— | ||
|
23
|
23
02162-05083-000
Bolt
|
02162-05083-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0508A-000 SCREW |
02162-0508A-000 |
from US $2.52 |
||
|
24
|
24
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->100 |
09355-70125-600 |
from US $4.88 |
||
| replacement | |||||
|
24
|
24
44421-12FR0-000 HOSEL:600->100 |
44421-12FR0-000 |
from US $15.38 |
||
|
25
|
25
09401-11407-000
CLIP
TYPE 8 |
09401-11407-000 |
— | ||
| replacement | |||||
|
25
|
25
09401-11415-000 CLIPTYPE 8 |
09401-11415-000 |
from US $1.06 |
||
|
25
|
25
09401-11415-000 CLIPTYPE 9 |
09401-11415-000 |
from US $1.06 |
||
|
26
|
26
09408-00043-000 CLAMPHolder, fuse case |
09408-00043-000 |
US $9.60 |
||
