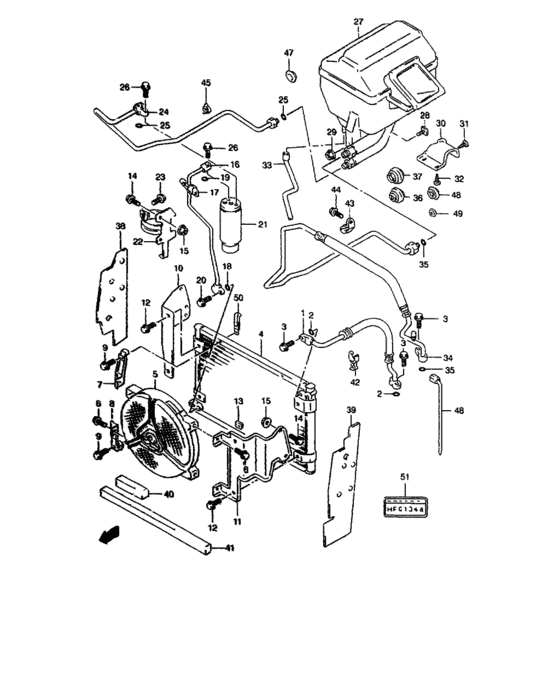

Air con piping (LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95720-83C80-000
HOSE,DISCHARGE
|
95720-83C80-000 |
— | ||
|
2
|
2
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
3
|
3
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
3
|
3
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
4
|
4
95310-81C01-000
CONDENSER
|
95310-81C01-000 |
— | ||
|
5
|
5
95520-81C11-000 FAN,SHROUD |
95520-81C11-000 |
US $397.44 |
||
|
6
|
6
09100-06067-000
BOLT(6X14)
|
09100-06067-000 |
— | ||
|
7
|
7
95981-83C80-000
Bracket, shroud upper
|
95981-83C80-000 |
— | ||
|
8
|
8
95982-83C80-000
Bracket, shroud lower
|
95982-83C80-000 |
— | ||
|
9
|
9
02162-05253-000
SCREW
|
02162-05253-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0525A-000 Screw |
02162-0525A-000 |
US $9.60 |
||
|
10
|
10
95392-83C80-000
Bracket, condenser rh
|
95392-83C80-000 |
— | ||
|
11
|
11
95391-83C80-000
Bracket, condenser lh
|
95391-83C80-000 |
— | ||
|
12
|
12
09100-06067-000
BOLT(6X14)
|
09100-06067-000 |
— | ||
|
13
|
13
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
13
|
13
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.31 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
95731-83C80-000
PIPE,LIQUID NO.1
|
95731-83C80-000 |
— | ||
|
17
|
17
95526-50G10-000
Switch, dual pressure
|
95526-50G10-000 |
— | ||
| replacement | |||||
|
17
|
17
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
from US $44.84 |
||
|
18
|
18
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
19
|
19
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
20
|
20
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
20
|
20
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
21
|
21
95330-71B10-000 RECEIVER |
95330-71B10-000 |
US $75.06 |
||
|
22
|
22
95350-83C30-000
ブラケット,レシーバドライヤ
|
95350-83C30-000 |
— | ||
|
23
|
23
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
24
|
24
95732-83C80-000
PIPE,LIQUID NO.2
|
95732-83C80-000 |
— | ||
|
25
|
25
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
26
|
26
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
| replacement | |||||
|
26
|
26
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
27
|
27
95400-81C61-000
Evaporator unit
|
95400-81C61-000 |
— | ||
|
28
|
28
74180-80000-000 BRACKET |
74180-80000-000 |
US $4.05 |
||
|
29
|
29
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
30
|
30
95961-83020-000
Bracket, evaporator
|
95961-83020-000 |
— | ||
|
31
|
31
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
31
|
31
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
32
|
32
03211-06163-000
Screw (6x16)
|
03211-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
03211-0616A-000 SCREW |
03211-0616A-000 |
US $0.80 |
||
|
33
|
33
95491-83020-000 HOSE,DRAIN |
95491-83020-000 |
US $11 |
||
|
34
|
34
95710-83C80-000
HOSE,SUCTION
|
95710-83C80-000 |
— | ||
|
35
|
35
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
from US $1.28 |
||
|
36
|
36
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
37
|
37
95761-73A00-000 GROMMET,CAR AIR CON,30 |
95761-73A00-000 |
from US $3.84 |
||
|
38
|
38
95622-83C80-000
Packing, side rh
|
95622-83C80-000 |
— | ||
|
39
|
39
95621-91C01-000
Packing, side lh
|
95621-91C01-000 |
— | ||
|
40
|
40
95623-81001-000
Packing, radiator
|
95623-81001-000 |
— | ||
|
41
|
41
95625-80C00-000
PACKING
|
95625-80C00-000 |
— | ||
|
42
|
42
09408-00157-000 CLAMP |
09408-00157-000 |
US $20.20 |
||
|
43
|
43
95771-50E00-000 CLAMP,SUCTION PIPE |
95771-50E00-000 |
US $6.96 |
||
|
44
|
44
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
44
|
44
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
45
|
45
09403-08406-000 CLAMP |
09403-08406-000 |
US $1.44 |
||
|
46
|
46
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
47
|
47
09250-30010-000
Grommet
N/AIR COH |
09250-30010-000 |
— | ||
| replacement | |||||
|
47
|
47
72999-67H00-000 CAP,OD:40N/AIR COH |
72999-67H00-000 |
from US $4.32 |
||
|
48
|
48
09250-25007-000 CAP(OD:25.0)N/AIR CON |
09250-25007-000 |
from US $0.95 |
||
|
49
|
49
09250-10016-000 CAP(OD:16.2)N/AIR CON |
09250-10016-000 |
US $9.90 |
||
|
50
|
50
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
50
|
50
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
51
|
51
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
