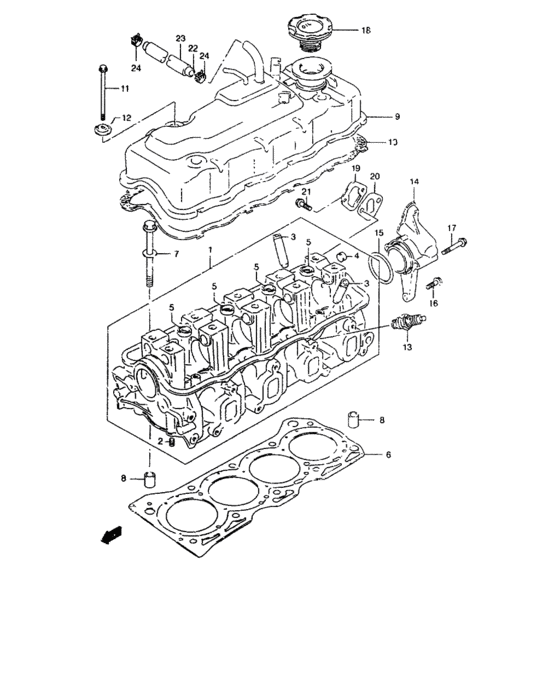

Cylinder head (W/FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-82602-000
Head,cylinder
|
11110-82602-000 |
— | ||
|
2
|
2
11112-73002-000
Plug, oil venturi
|
11112-73002-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
US $12.73 |
||
|
4
|
4
09241-12002-000 PLUG |
09241-12002-000 |
US $12.90 |
||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.37 |
||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $43.92 |
||
|
7
|
7
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $3.51 |
||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11170-61X50-000 Cover,cylinder head |
11170-61X50-000 |
US $164.86 |
||
|
10
|
10
11189-82600-000 GASKET,CYL HEAD COVER |
11189-82600-000 |
US $66.40 |
||
|
11
|
11
01550-06803-000
Bolt
|
01550-06803-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0680B-000 BOLT |
01550-0680B-000 |
from US $3.22 |
||
|
12
|
12
11180-82010-000 WASHER,CYL HEAD COVER SEAL |
11180-82010-000 |
US $5.60 |
||
|
13
|
13
09482-00155-000 PLUG,SPARK(NGK BPR5ES) |
09482-00155-000 |
from US $2.78 |
||
|
13
|
13
09482-00409-000 PLUG,SPARK(W20EPR-U) |
09482-00409-000 |
US $8.65 |
||
|
14
|
14
11161-83000-000 CASE,DISTRIBUTOR |
11161-83000-000 |
US $203.20 |
||
|
15
|
15
09280-56004-000 O RING(D:1.9,ID:55.5) |
09280-56004-000 |
US $1.76 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01550-06503-000
Bolt
|
01550-06503-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
17
|
17
01550-0650A-000 BOLTBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
18
|
18
16920-60A02-000 Cap,oil filler |
16920-60A02-000 |
from US $11.75 |
||
|
19
|
19
15317-77901-000
Plate,fuel pump
|
15317-77901-000 |
— | ||
| replacement | |||||
|
19
|
19
15317-7790V-000 PLATE,FUEL PUMP |
15317-7790V-000 |
US $5.81 |
||
|
20
|
20
15319-63B00-000 GASKET,FUEL PUMP |
15319-63B00-000 |
US $7.36 |
||
|
21
|
21
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
21
|
21
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
|
22
|
22
09355-13207-600 HOSE(13X20X600)Hose, breather |
09355-13207-600 |
US $12.46 |
||
|
23
|
23
11194-80C00-000
PROTECTOR,BREATHER HOSE
|
11194-80C00-000 |
— | ||
|
24
|
24
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.08 |
||
