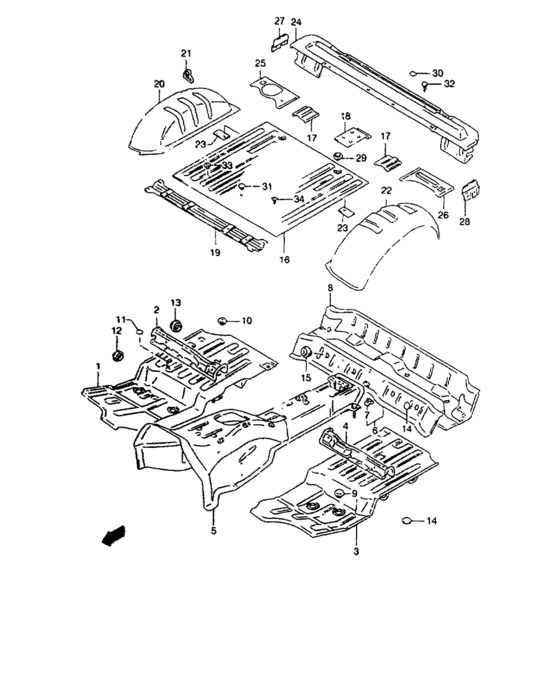

Floor panel (FLOOR PANEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-82CA0-000
パネル,フロントフロア,ライト
JA |
61400-82CA0-000 |
— | ||
|
1
|
1
61400-82CC0-000
Panel, front floor rh
JA:Austria |
61400-82CC0-000 |
— | ||
|
2
|
2
61451-82CA0-000
Member,front seat,r
|
61451-82CA0-000 |
— | ||
|
3
|
3
61500-82CA0-000
Panel comp,front floor,l
JA |
61500-82CA0-000 |
— | ||
|
3
|
3
61500-82CC0-000
Panel, front floor lh
JA:Austria |
61500-82CC0-000 |
— | ||
|
4
|
4
61551-82CA0-000
Member,front seat,l
|
61551-82CA0-000 |
— | ||
|
5
|
5
61600-82CA0-000
パネル,フロアトンネル
JA |
61600-82CA0-000 |
— | ||
|
5
|
5
61600-82CE0-000
Panel, floor tunnel
,2,4,Brazil,Austria,Israel |
61600-82CE0-000 |
— | ||
|
5
|
5
61600-82CC0-000
Panel,floor tunnel
JX |
61600-82CC0-000 |
— | ||
|
5
|
5
61600-82CF0-000
Panel, floor tunnel
JX:Germany,Australia,Brazil,Israel |
61600-82CF0-000 |
— | ||
|
6
|
6
61810-83030-000 MEMBER,CTR FL NO.1 |
61810-83030-000 |
US $64 |
||
|
7
|
7
73722-63001-000 HOOK,RRW/BENCH SEAT |
73722-63001-000 |
US $9.64 |
||
|
8
|
8
61820-82CB0-000
Member,center floor,no.2
|
61820-82CB0-000 |
— | ||
|
9
|
9
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
10
|
10
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
10
|
10
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
11
|
11
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
12
|
12
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
13
|
13
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.95 |
||
|
14
|
14
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
15
|
15
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
16
|
16
62111-80023-000
パネル,リヤフロア
W/BENCH SEAT |
62111-80023-000 |
— | ||
|
16
|
16
62111-83091-000
PANEL,REAR FLOOR
W/SEPARATE SEAT |
62111-83091-000 |
— | ||
|
17
|
17
62114-83001-000 REINFORCEMENT,RR SEAT CUSHIONW/SEPARATE SEAT |
62114-83001-000 |
US $11.20 |
||
|
18
|
18
62115-80070-000
REINFORCEMENT,RR SEAT STRIKER
W/SEPARATE SEAT |
62115-80070-000 |
— | ||
|
19
|
19
62120-83301-000 REINFORCEMENT,RR FL |
62120-83301-000 |
US $113.60 |
||
|
20
|
20
62211-70A00-000 PANEL,RR WHEEL HSG,R |
62211-70A00-000 |
US $112.80 |
||
|
21
|
21
62212-80080-000 BRACKET,INLET PIPE PROTECTOR |
62212-80080-000 |
US $8.98 |
||
|
22
|
22
62311-70A00-000 PANEL,RR WHEEL HSG,L |
62311-70A00-000 |
US $112.80 |
||
|
23
|
23
62130-82CA0-000
リンフォースメント,リヤシートリヤ
|
62130-82CA0-000 |
— | ||
|
24
|
24
62510-82CB0-000
Member comp,rear floor tail
W/BENCH SEAT |
62510-82CB0-000 |
— | ||
|
24
|
24
62510-82CC0-000
メンバ,リヤフロアテール
W/SEPARATE SEAT |
62510-82CC0-000 |
— | ||
|
25
|
25
62112-82CA0-000
PANEL,REAR FLOOR SIDE,R
|
62112-82CA0-000 |
— | ||
|
26
|
26
62113-80000-000 PANEL,RR FLOOR SIDE LH |
62113-80000-000 |
US $29.60 |
||
|
27
|
27
62115-82CA0-000
EXTENSION,RR FL SIDE PANEL,R
|
62115-82CA0-000 |
— | ||
|
28
|
28
62116-82CA0-000
EXTENSION,RR FL SIDE PANEL,L
|
62116-82CA0-000 |
— | ||
|
29
|
29
65971-77E00-000
Cap, rear floor drain
|
65971-77E00-000 |
— | ||
| replacement | |||||
|
29
|
29
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
US $2.24 |
||
|
30
|
30
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
31
|
31
09250-06010-000 CAP(OD:11)TYPE 8 |
09250-06010-000 |
US $11.80 |
||
|
32
|
32
09409-05309-5ES CLIP(BLACK) |
09409-05309-5ES |
from US $1.01 |
||
|
33
|
33
09250-08015-000
PLUG(OD:25)
W/2 SEATER |
09250-08015-000 |
— | ||
|
34
|
34
02142-06103-000
Screw
W/2 SEATER |
02142-06103-000 |
— | ||
| replacements | |||||
|
34
|
34
02142-0610B-000 SCREWStopper, cl rlse cam shaft W/2 SEATER |
02142-0610B-000 |
from US $0.76 |
||
|
34
|
34
02142-0610A-000 SCREWW/2 SEATER |
02142-0610A-000 |
from US $0.80 |
||
