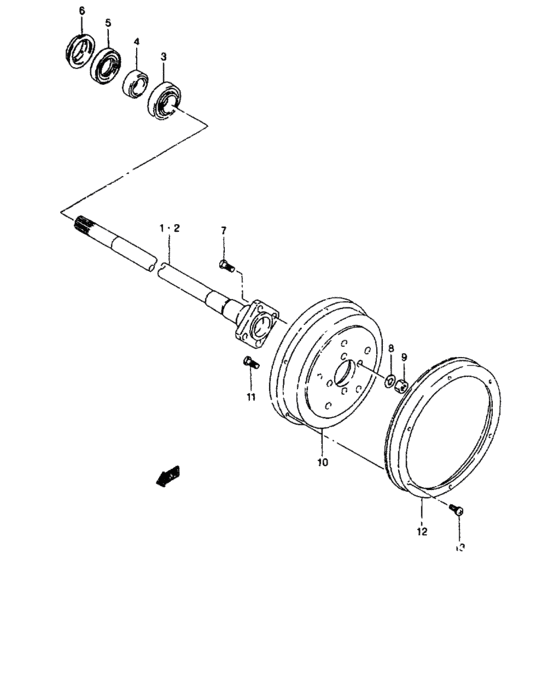

Rear axle (REAR AXLE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44211-70A11-000
シャフト,リヤアクスル,ライト
|
44211-70A11-000 |
— | ||
| replacement | |||||
|
1
|
1
44210-70AV1-000
SHAFT ASSY,REAR AXLE,R
|
44210-70AV1-000 |
— | ||
|
2
|
2
44221-70A11-000
シャフト,リヤアクスル,レフト
|
44221-70A11-000 |
— | ||
| replacement | |||||
|
2
|
2
44220-70AV1-000
SHAFT ASSY,REAR AXLE,L
|
44220-70AV1-000 |
— | ||
|
3
|
3
09269-35009-000 BEARING(35X72X22) |
09269-35009-000 |
from US $37.60 |
||
|
4
|
4
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $8.51 |
||
|
5
|
5
09283-48007-000 SEAL,OIL(48X62X9) |
09283-48007-000 |
from US $4.07 |
||
|
6
|
6
43588-73000-000 PROTECTOR,OIL SEAL |
43588-73000-000 |
from US $1.52 |
||
|
7
|
7
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.26 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
43500-83810-000
Drum set,rear brake
|
43500-83810-000 |
— | ||
| replacement | |||||
|
10
|
10
43500-83811-000 DRUM SET,RR BRAKE |
43500-83811-000 |
US $297.60 |
||
|
11
|
11
09119-12007-000 BOLT |
09119-12007-000 |
from US $1.13 |
||
|
12
|
12
43521-83003-000 COVER,BRAKE DRUM DUST |
43521-83003-000 |
US $50.40 |
||
|
13
|
13
02112-36103-000
Screw
|
02112-36103-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-3610A-000 SCREW |
02112-3610A-000 |
US $0.76 |
||
