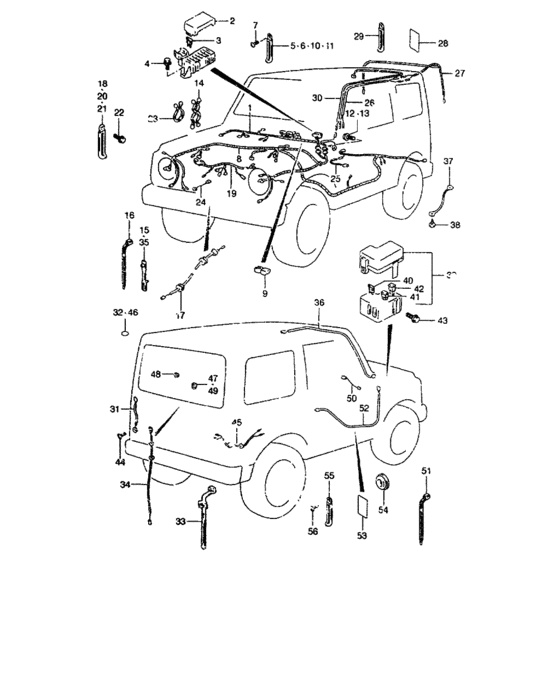

Wiring harness (WIRING HARNESS) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-80CJ0-000
Harness, wiring no.1
LHD,->36610-80CJ1,USED WITH 36611-80CV0 |
36610-80CJ0-000 |
— | ||
|
1
|
1
36610-80CJ1-000
Harness, wiring no.1
LHD,SJ80-101235~ |
36610-80CJ1-000 |
— | ||
|
1
|
1
36610-80CG0-000
Harness, wiring no.1
RHD |
36610-80CG0-000 |
— | ||
|
1
|
1
36610-80CG1-000
Harness, wiring no.1
RHD,SJ80-101235~ |
36610-80CG1-000 |
— | ||
|
1
|
1
36610-80CK0-000
Harness, wiring no.1
|
36610-80CK0-000 |
— | ||
|
1
|
1
36610-80CK1-000
Harness, wiring no.1
,JSAOSJ80000100907~ |
36610-80CK1-000 |
— | ||
|
1
|
1
36610-80CL0-000
Harness, wiring no.1
Chile,Germany,Brazil,Austria,Israel |
36610-80CL0-000 |
— | ||
|
1
|
1
36610-80CL1-000
Harness, wiring no.1
Chile,Germany,Brazil,Austria,Israel,JSAOSJ80000100907~,JSAOSJ80V00100765~,JS3JC32V V410C175~,JSAOSJ800TV100083~,JSAOSJ80VTV100004~ |
36610-80CL1-000 |
— | ||
|
1
|
1
36610-80CP0-000
Harness, wiring no.1
Saudi Arabia |
36610-80CP0-000 |
— | ||
|
1
|
1
36610-80CP1-000
Harness, wiring no.1
Saudi Arabia,SJ80-101236~ |
36610-80CP1-000 |
— | ||
|
2
|
2
36717-82C00-000
COVER,FUSE BOX
|
36717-82C00-000 |
— | ||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
09404-0S432-000
Clamp
|
09404-0S432-000 |
— | ||
|
6
|
6
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
6
|
6
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
36620-80CS0-000
Harness, wiring no.2
TYPE 8:LHD |
36620-80CS0-000 |
— | ||
| replacement | |||||
|
8
|
8
36621-80CV0-000
WIRE,JOINT
TYPE 8:LHD |
36621-80CV0-000 |
— | ||
|
8
|
8
36620-80CS1-000
Harness, wiring no.2
TYPE 8:LHD,SJ80-101235~ |
36620-80CS1-000 |
— | ||
|
8
|
8
36620-80CV0-000
Harness, wiring no.2
TYPE :9:LHD |
36620-80CV0-000 |
— | ||
|
8
|
8
36620-80CP0-000
Harness, wiring no.2
TYPE 8:RHD,->36620-80CP1,USED WITH 36621-80CV0 |
36620-80CP0-000 |
— | ||
| replacement | |||||
|
8
|
8
36621-80CV0-000
WIRE,JOINT
TYPE 8:RHD,->36620-80CP1,USED WITH 36621-80CV0 |
36621-80CV0-000 |
— | ||
|
8
|
8
36620-80CP1-000
Harness, wiring no.2
TYPE 8:RHD,SJ80-101235~ |
36620-80CP1-000 |
— | ||
|
8
|
8
36620-80CP2-000
Harness, wiring no.2
TYPE 9:RHD |
36620-80CP2-000 |
— | ||
|
8
|
8
36620-81CA0-000
Harness, wiring no.2
|
36620-81CA0-000 |
— | ||
|
8
|
8
36620-81CA1-000
Harness, wiring no.2
,JSAOSJ8C000100907~ |
36620-81CA1-000 |
— | ||
|
8
|
8
36620-80CQ0-000
Harness, wiring no.2
TYPE 8:Australia |
36620-80CQ0-000 |
— | ||
| replacement | |||||
|
8
|
8
36621-80CV0-000
WIRE,JOINT
TYPE 8:Australia |
36621-80CV0-000 |
— | ||
|
8
|
8
36620-80CQ1-000
Harness, wiring no.2
TYPE 8:Australia,JSAOSJ80000100907~,JSAOSJ80V00100765~ |
36620-80CQ1-000 |
— | ||
|
8
|
8
36620-80CQ2-000
Harness, wiring no.2
TYPE 9:Australia |
36620-80CQ2-000 |
— | ||
|
8
|
8
36620-81CB0-000
Harness, wiring no.2
TYPE 8:Chile,Brazil |
36620-81CB0-000 |
— | ||
|
8
|
8
36620-81CC1-000
Harness, wiring no.2
TYPE 8:Chile,Brazil,JS3JC32V V4100175~,JSAOSJ800TV100083~,JSAOSJ80VTV100004~ |
36620-81CC1-000 |
— | ||
|
8
|
8
36620-81CC2-000
Harness, wiring no.2
TYPE 9:Chile,Brazil |
36620-81CC2-000 |
— | ||
|
8
|
8
36620-81CC0-000
Harness, wiring no.2
TYPE 8:Germany,Austria,Israel |
36620-81CC0-000 |
— | ||
|
8
|
8
36620-80CR0-000
Harness, wiring no.2
TYPE 8:Saudi Arabia |
36620-80CR0-000 |
— | ||
| replacement | |||||
|
8
|
8
36621-80CV0-000
WIRE,JOINT
TYPE 8:Saudi Arabia |
36621-80CV0-000 |
— | ||
|
8
|
8
36620-80CR1-000
Harness, wiring no.2
TYPE 8:Saudi Arabia,SJ80-101236~ |
36620-80CR1-000 |
— | ||
|
9
|
9
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
10
|
10
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
11
|
11
09404-08206-000 CLAMP(L:65 T:0.8)Clamp |
09404-08206-000 |
from US $1.22 |
||
|
12
|
12
01550-06103-000
Bolt, front
TYPE 8 |
01550-06103-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0610B-000 BoltBolt TYPE 8 |
01550-0610B-000 |
from US $0.80 |
||
|
12
|
12
01550-0610A-000 BOLTTYPE 8 |
01550-0610A-000 |
from US $0.80 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
TYPE 9 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt TYPE 9 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket TYPE 9 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
14
|
14
09408-00013-000 CLAMPClamp ,Chile,2,Brazil,Austria,Israel |
09408-00013-000 |
US $1.92 |
||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
03407-12404-000
Clamp, harness
|
03407-12404-000 |
— | ||
|
17
|
17
36895-80C10-000
Wire, oil pressure switch
|
36895-80C10-000 |
— | ||
|
18
|
18
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
18
|
18
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
19
|
19
36650-80C70-000
Harness, wiring engine
W/FUEL INJECTION |
36650-80C70-000 |
— | ||
|
20
|
20
09404-06435-000 CLAMP(L:135)W/FUEL INJECTION |
09404-06435-000 |
from US $2.13 |
||
|
21
|
21
09404-08207-000
CLAMP(L:80)
W/FUEL INJECTION |
09404-08207-000 |
— | ||
| replacement | |||||
|
21
|
21
09404-08212-000 ClampW/FUEL INJECTION |
09404-08212-000 |
from US $1.22 |
||
|
22
|
22
01580-06123-000
Bolt
W/FUEL INJECTION |
01580-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01580-0612B-000 BoltW/FUEL INJECTION |
01580-0612B-000 |
US $0.96 |
||
|
22
|
22
01580-0612A-000 BoltW/FUEL INJECTION |
01580-0612A-000 |
from US $0.91 |
||
|
23
|
23
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal W/FUEL INJECTION |
09408-00024-000 |
from US $2.40 |
||
|
24
|
24
36748-80C00-000
Wire, generator
|
36748-80C00-000 |
— | ||
|
25
|
25
36822-80C00-000
ワイヤ,フューエルゲージ
|
36822-80C00-000 |
— | ||
|
26
|
26
36890-83001-000
Wire, rear defogger plus
W/RESIN TOP |
36890-83001-000 |
— | ||
|
27
|
27
36890-83010-000
Wire, rear defogger earth
W/RESIN TOP |
36890-83010-000 |
— | ||
|
28
|
28
36930-82010-000 COVER,HARNESSCover, roof wire W/RESIN TOP |
36930-82010-000 |
from US $1.73 |
||
|
29
|
29
09404-06432-000
CLAMP(L:65)
W/RESIN TOP |
09404-06432-000 |
— | ||
| replacement | |||||
|
29
|
29
09404-06039-000 Clamp(L:65)W/RESIN TOP |
09404-06039-000 |
from US $1.82 |
||
|
30
|
30
36890-66700-000
Wire,defogger lead
W/DEFOGGER |
36890-66700-000 |
— | ||
|
31
|
31
36891-66700-000
リードワイヤ,デフォッガアース
W/DEFOGGER |
36891-66700-000 |
— | ||
|
32
|
32
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
|
33
|
33
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
34
|
34
36842-80C10-000
Wire, high mount stop
Australia |
36842-80C10-000 |
— | ||
|
34
|
34
36842-80C11-000
Wire, high mount stop
Australia,JSAOSJ80000100018~,JSAOSJ80V00100033~ |
36842-80C11-000 |
— | ||
|
35
|
35
09407-05403-000 CLAMP,L:88Australia |
09407-05403-000 |
from US $0.91 |
||
|
36
|
36
36820-80C10-000
WIRE,ROOM LAMP NO.2
|
36820-80C10-000 |
— | ||
|
36
|
36
36820-80C00-000
WIRE,ROOM LAMP NO.1
|
36820-80C00-000 |
— | ||
|
37
|
37
36821-80C00-000
Wire,earth
|
36821-80C00-000 |
— | ||
|
38
|
38
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
39
|
39
36730-80C10-000
BOX ASSY,MAIN FUSE
|
36730-80C10-000 |
— | ||
|
40
|
40
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
41
|
41
09481-40203-000 FUSE(40A) |
09481-40203-000 |
US $56.30 |
||
|
42
|
42
09481-70301-000 FUSE(70A) |
09481-70301-000 |
US $64 |
||
|
43
|
43
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
44
|
44
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
44
|
44
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
45
|
45
36842-80C00-000
ワイヤ,デフォッガ/ハイマウントランプ
Australia,Israel |
36842-80C00-000 |
— | ||
|
46
|
46
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole Australia,Israel |
84761-50X50-000 |
US $6.72 |
||
|
47
|
47
09308-06003-000 GROMMETAustralia,Israel |
09308-06003-000 |
US $16.20 |
||
|
48
|
48
09308-05011-000 GROMMETW/REAR DEFOGGER |
09308-05011-000 |
US $9.20 |
||
|
49
|
49
09308-06003-000 GROMMETW/REAR DEFOGGER |
09308-06003-000 |
US $16.20 |
||
|
50
|
50
36955-82C10-000
WIRE,POWER STEERING
:W/POWER STEERING |
36955-82C10-000 |
— | ||
|
51
|
51
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap :W/POWER STEERING |
09407-14403-000 |
from US $2.08 |
||
|
52
|
52
36850-79500-000 WIRE,BACK DR SWITCH |
36850-79500-000 |
US $2.56 |
||
|
52
|
52
36823-80C10-000
ワイヤ,ベルト/パーキングスイッチ
Saudi Arabia |
36823-80C10-000 |
— | ||
|
53
|
53
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
54
|
54
09308-14006-000 GROMMET |
09308-14006-000 |
from US $2.88 |
||
|
55
|
55
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
55
|
55
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
56
|
56
03111-05123-000
Screw
|
03111-05123-000 |
— | ||
| replacement | |||||
|
56
|
56
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
