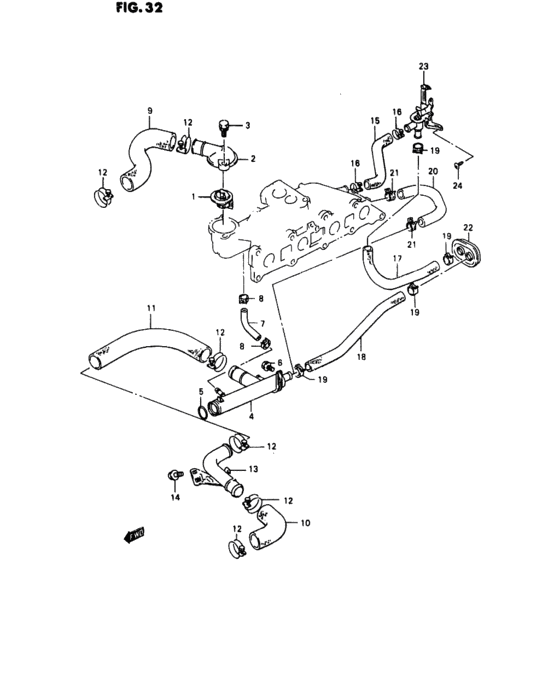

Water hose (RHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-60813-000
サーモスタット,ウォータ,82゜C
|
17600-60813-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60814-000 THERMOSTAT,WATER 82 DEG |
17600-60814-000 |
from US $19.96 |
||
|
2
|
2
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
US $11.10 |
||
|
3
|
3
09103-08341-000 BOLT(8X30) |
09103-08341-000 |
from US $3.24 |
||
|
4
|
4
17550-83X50-000 PIPE,WATER INLET |
17550-83X50-000 |
from US $76.12 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $1.28 |
||
|
6
|
6
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
7
|
7
13191-71C50-000
ホース,スロットルインレット,NO.1
->09356-75141-600,USED WITH 09401-12410(2PCS) |
13191-71C50-000 |
— | ||
| replacements | |||||
|
7
|
7
09356-75141-600 HOSE(7.5X14.5X600)->09356-75141-600,USED WITH 09401-12410(2PCS) |
09356-75141-600 |
from US $5.11 |
||
|
7
|
7
09401-12410-000 CLIPClip, filter outlet ->09356-75141-600,USED WITH 09401-12410(2PCS) |
09401-12410-000 |
from US $1.52 |
||
|
7
|
7
09356-75141-200
New Genuine Part
->09356-75141-600,USED WITH 09401-12410(2PCS) |
09356-75141-200 |
— | ||
|
7
|
7
09356-75141-600 HOSE(7.5X14.5X600)L:600->110,SJ80-122280~,JSA0SJ80000120914~,JSA0SJ80V00121803~ |
09356-75141-600 |
from US $5.11 |
||
|
8
|
8
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
8
|
8
09401-12410-000 CLIPClip, filter outlet SJ80-122280~,JSA0SJ80000120914~,JSA0SJ80V00121803~ |
09401-12410-000 |
from US $1.52 |
||
|
9
|
9
17841-80C01-000 HOSE,RADIATOR INLET |
17841-80C01-000 |
US $29.60 |
||
|
10
|
10
17851-83101-000 HOSE,RADIATOR OUTLET NO.1 |
17851-83101-000 |
from US $12.06 |
||
|
11
|
11
17852-83000-000 HOSE,RADIATOR OUTLET NO.2 |
17852-83000-000 |
US $35.72 |
||
|
12
|
12
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.37 |
||
|
13
|
13
17860-80C00-000
PIPE,RDTR OUTLET
|
17860-80C00-000 |
— | ||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
17871-80C00-000 HOSE,HEATER INTAKE TO VALVEW/HEATER |
17871-80C00-000 |
US $21.60 |
||
|
16
|
16
09400-22312-000 CLAMPW/HEATER |
09400-22312-000 |
from US $1.82 |
||
|
17
|
17
17872-80C00-000 HOSE,HEATER VALVE TO HEATERW/HEATER |
17872-80C00-000 |
US $29.60 |
||
|
18
|
18
17873-80C00-000 HOSE,HEATER HEATER TO INLETW/HEATER |
17873-80C00-000 |
US $13.06 |
||
|
19
|
19
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.08 |
||
|
20
|
20
17874-83011-000 HOSE,WATER CIRCULATIONN/HEATER |
17874-83011-000 |
US $14.06 |
||
|
21
|
21
09401-18404-000 CLIPN/HEATER |
09401-18404-000 |
from US $1.08 |
||
|
22
|
22
74812-83001-000 GROMMET,HEATER HOSEW/HEATER |
74812-83001-000 |
US $9.12 |
||
|
22
|
22
74812-83021-000 GROMMET,HEATER HOSEN/HEATER |
74812-83021-000 |
US $8.13 |
||
|
23
|
23
74710-83000-000 VALVE,WATERW/HEATER |
74710-83000-000 |
US $33.44 |
||
|
24
|
24
03141-06123-000
Screw 6x12
W/HEATER |
03141-06123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0612A-000 SCREWW/HEATER |
03141-0612A-000 |
US $0.76 |
||
