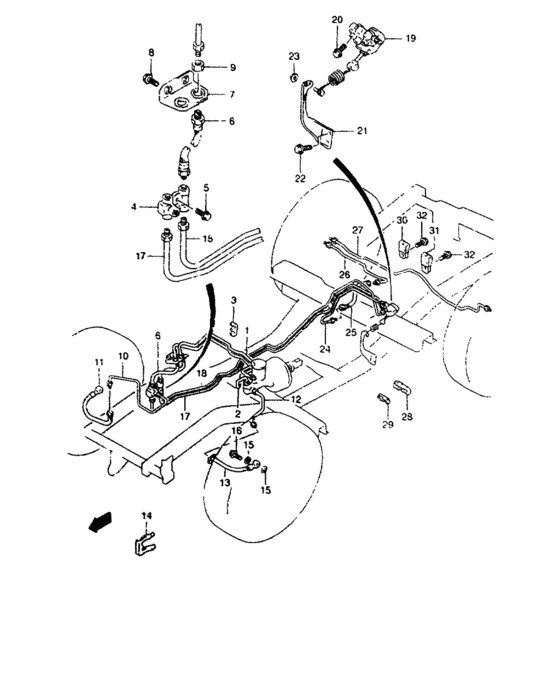

Brake piping (LHD:EC,Germany,Austria,Israel) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-70AB0-000
Pipe, ma primary to joint
|
51410-70AB0-000 |
— | ||
|
2
|
2
51520-70AB0-000
Pipe, ma secondary to joint
|
51520-70AB0-000 |
— | ||
|
3
|
3
51751-60B00-000 CLAMP,BRAKE PIPE |
51751-60B00-000 |
US $1.60 |
||
|
4
|
4
51640-80000-000 JOINT,5WAY BRAKE |
51640-80000-000 |
US $64.77 |
||
|
5
|
5
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
5
|
5
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
7
|
7
51712-83001-000 BRACKET,MA CYL HOSE |
51712-83001-000 |
US $2.72 |
||
|
8
|
8
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
10
|
10
51420-70AA1-000
PIPE,JOINT TO FR BK HOSE
|
51420-70AA1-000 |
— | ||
|
11
|
11
51540-70AA0-000
HOSE,FR BRAKE FLEXIBLE,R
|
51540-70AA0-000 |
— | ||
|
12
|
12
51430-70AB0-000
Pipe, cylinder to fr hose
|
51430-70AB0-000 |
— | ||
|
13
|
13
51550-70AA0-000
HOSE,FR BRAKE FLEXIBLE,L
|
51550-70AA0-000 |
— | ||
|
14
|
14
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
15
|
15
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
16
|
16
09360-10026-000 Union bolt |
09360-10026-000 |
US $2.08 |
||
|
17
|
17
51340-70AA0-000
Pipe,joint to valve front
|
51340-70AA0-000 |
— | ||
|
18
|
18
51460-70AA0-000
Pipe,joint to valve rear
|
51460-70AA0-000 |
— | ||
|
19
|
19
51930-70AA0-000
VALVE ASSY,L.S.P.
|
51930-70AA0-000 |
— | ||
|
20
|
20
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0845B-000 BOLT |
01550-0845B-000 |
from US $1.06 |
||
|
20
|
20
01550-0845A-000 BOLTBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
21
|
21
51951-70AA0-000
BRACKET,L.S.P VALVE
|
51951-70AA0-000 |
— | ||
|
22
|
22
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
22
|
22
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
23
|
23
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
24
|
24
51350-70AA0-000
Pipe,valve to rear bk hose
|
51350-70AA0-000 |
— | ||
|
25
|
25
51560-70AA0-000
HOSE,RR BRAKE FLEXIBLE
|
51560-70AA0-000 |
— | ||
|
26
|
26
51470-70AA0-000
Pipe,rear bk hose to r bk assy
|
51470-70AA0-000 |
— | ||
|
27
|
27
51480-70AA0-000
PIPE,R BK ASSY TO L BK ASSY
|
51480-70AA0-000 |
— | ||
|
28
|
28
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
US $2.56 |
||
|
29
|
29
51751-77E00-000 CLAMP,BRAKE PIPE |
51751-77E00-000 |
US $2.24 |
||
|
30
|
30
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
31
|
31
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
32
|
32
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
