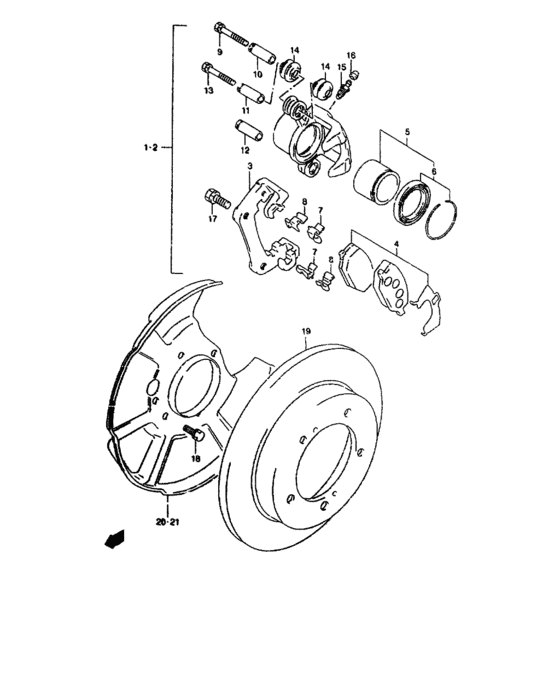

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-70AA1-000
キャリパアッシ,フロントブレーキ,ライト
|
55101-70AA1-000 |
— | ||
| replacements | |||||
|
1
|
1
55200-70AA0-000 PAD SET,DISC BRAKE |
55200-70AA0-000 |
US $108.80 |
||
|
1
|
1
55101-70AA2-999
CALIPER ASSY,FR BRAKE,R
|
55101-70AA2-999 |
— | ||
|
1
|
1
55101-70AA3-999
Caliper Assy,fr Brake,r
|
55101-70AA3-999 |
— | ||
|
2
|
2
55102-70AA1-000
キャリパアッシ,フロントブレーキ,レフト
|
55102-70AA1-000 |
— | ||
| replacements | |||||
|
2
|
2
55200-70AA0-000 PAD SET,DISC BRAKE |
55200-70AA0-000 |
US $108.80 |
||
|
2
|
2
55102-70AA2-999
CALIPER ASSY,FR BRAKE,L
|
55102-70AA2-999 |
— | ||
|
2
|
2
55102-70AA3-999
Caliper Assy,fr Brake,l
|
55102-70AA3-999 |
— | ||
|
3
|
3
55161-80000-000 MOUNTING,DISC BRAKE |
55161-80000-000 |
US $20 |
||
|
4
|
4
55200-70AA0-000 PAD SET,DISC BRAKE |
55200-70AA0-000 |
US $108.80 |
||
|
5
|
5
55830-60C10-000
Piston/seal set
|
55830-60C10-000 |
— | ||
| replacements | |||||
|
5
|
5
55830-60C12-000
PISTON / SEAL SET
|
55830-60C12-000 |
— | ||
|
5
|
5
55830-60C13-000
Piston / Seal Set
|
55830-60C13-000 |
— | ||
|
6
|
6
55100-82820-000
Seal set,piston
|
55100-82820-000 |
— | ||
| replacements | |||||
|
6
|
6
55100-82822-000
SEAL SET,PISTON
|
55100-82822-000 |
— | ||
|
6
|
6
55100-82823-000
Seal Set,piston
|
55100-82823-000 |
— | ||
|
6
|
6
55100-82824-000 Seal Set,Piston |
55100-82824-000 |
from US $6.64 |
||
|
7
|
7
55234-60800-000
Plate, pad support no.1
|
55234-60800-000 |
— | ||
|
8
|
8
55235-60800-000
Plate, pad support no.2
|
55235-60800-000 |
— | ||
|
9
|
9
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.44 |
||
|
9
|
9
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
10
|
10
55191-80001-000 BUSHING,CYLINDER SLIDE |
55191-80001-000 |
US $19.01 |
||
|
11
|
11
55191-61G50-000 BUSH,CYLINDER SLIDESJ80-100007~,JSAOSJ80000100013~,JSAOSJ80V00100008~,JS3JC32V T4100001~,JSAOSJ800TT100001~,JSAOSJ80VTV100001~,JSAOSJ80VV0100001~ |
55191-61G50-000 |
US $11.56 |
||
|
12
|
12
55191-61G00-000 BUSH,CYLINDER SLIDESJ80-100007~,JSAOSJ80000100013~,JSAOSJ80V00100008~,JS3JC32V T4100001~,JSAOSJ800TT100001~,JSAOSJ80VTV100001~,JSAOSJ80VV0100001~ |
55191-61G00-000 |
US $10.05 |
||
|
13
|
13
55164-86040-000 BOLT,BRAKE CALIPERSJ80-100007~,JSAOSJ80000100013~,JSAOSJ80V00100008~,JS3JC32V T4100001~,JSAOSJ800TT100001~,JSAOSJ80VTV100001~,JSAOSJ80VV0100001~ |
55164-86040-000 |
US $3.90 |
||
|
14
|
14
55201-86040-000 BOOT,BUSH DUST |
55201-86040-000 |
from US $2.40 |
||
|
15
|
15
55473-82030-000
Plug, bleeder
|
55473-82030-000 |
— | ||
| replacement | |||||
|
15
|
15
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
16
|
16
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
17
|
17
09117-12012-000 BOLT(12X32) |
09117-12012-000 |
from US $2.08 |
||
|
18
|
18
09117-10042-000 BOLT(10X25) |
09117-10042-000 |
US $2.24 |
||
|
19
|
19
55211-60A00-000
ディスク,フロントブレーキ
|
55211-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
55211-60A01-000 DISC,FR BRAKE |
55211-60A01-000 |
US $132.80 |
||
|
20
|
20
55221-70AA0-000
COVER,BRAKE DISC DUST,R
|
55221-70AA0-000 |
— | ||
|
21
|
21
55222-70AA0-000
COVER,BRAKE DISC DUST,L
|
55222-70AA0-000 |
— | ||
