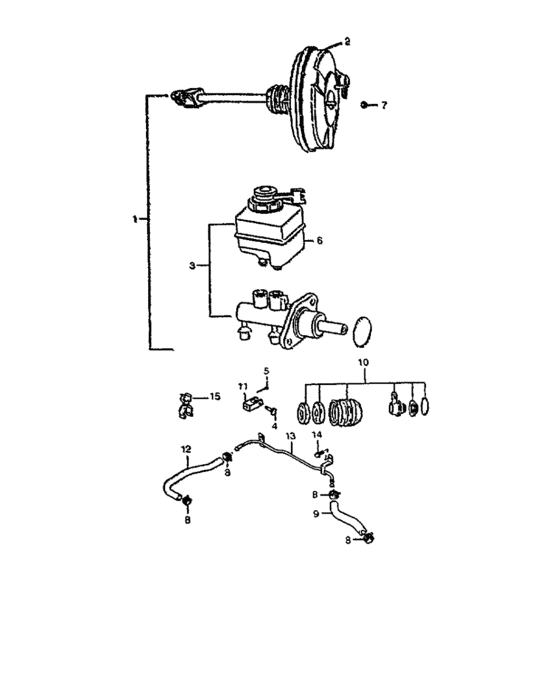

Brake master cylinder (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51000-G8317-000
Servo & booster assy
Dia. 7 |
51000-G8317-000 |
— | ||
|
2
|
2
00000-A0098-300
Boster assy
Dia. 7 |
00000-A0098-300 |
— | ||
|
3
|
3
00000-A0098-400
Brake cylinder
|
00000-A0098-400 |
— | ||
|
4
|
4
51811-85C00-000
Cylinder pin
|
51811-85C00-000 |
— | ||
|
5
|
5
51812-85C00-000
Pin
|
51812-85C00-000 |
— | ||
|
6
|
6
00000-A0072-300
Tank repair set
|
00000-A0072-300 |
— | ||
|
7
|
7
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
7
|
7
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
8
|
8
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
9
|
9
51010-C8302-100
Vacuum hose
|
51010-C8302-100 |
— | ||
|
10
|
10
00000-A0046-600
Jeu reparat servo
|
00000-A0046-600 |
— | ||
|
11
|
11
00000-A0116-400
Fork
|
00000-A0116-400 |
— | ||
|
12
|
12
51020-70A80-000
HOSE,BRAKE VACUUM INTAKE
|
51020-70A80-000 |
— | ||
|
13
|
13
51380-70A10-000
Booster hose
|
51380-70A10-000 |
— | ||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09408-00060-000 CLAMP |
09408-00060-000 |
from US $0.38 |
||
