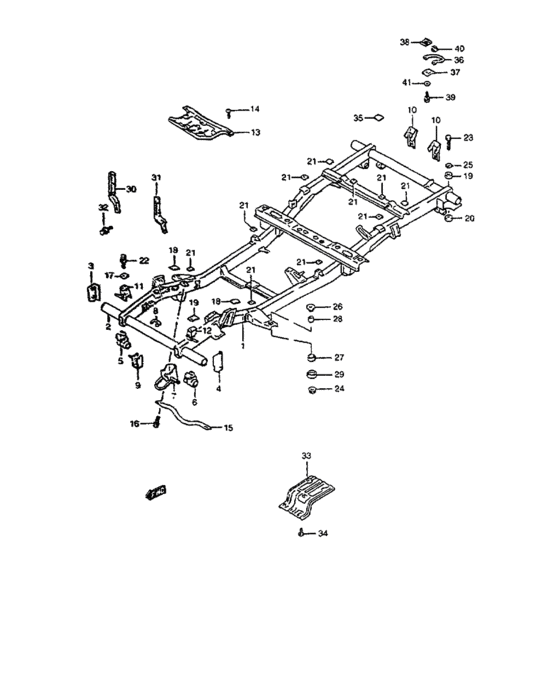

Chassis frame (SHORT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-84C40-000
Chassis frame
|
57000-84C40-000 |
— | ||
|
2
|
2
57211-80000-000 CROSSMEMBER,1ST |
57211-80000-000 |
US $163.20 |
||
|
3
|
3
57461-82CA0-000 BRACKET,FR BUMPER,R |
57461-82CA0-000 |
US $63.30 |
||
|
4
|
4
57471-82CA0-000 BRACKET,FR BUMPER,L |
57471-82CA0-000 |
US $60.72 |
||
|
5
|
5
57710-83301-000 HANGER,SPRING NO.1,R |
57710-83301-000 |
US $34.59 |
||
|
6
|
6
57720-83301-000 HANGER,SPRING NO.1,L |
57720-83301-000 |
US $34.59 |
||
|
7
|
7
57270-84C50-000
Bracket, 1st crossmember
|
57270-84C50-000 |
— | ||
|
8
|
8
57551-80001-000
Bracket, engine splash panel
|
57551-80001-000 |
— | ||
|
9
|
9
57680-83001-000 BRACKET,STABILIZER |
57680-83001-000 |
US $79.49 |
||
|
10
|
10
57281-00000-000
Bracket, rear license
|
57281-00000-000 |
— | ||
|
11
|
11
57310-83000-000 BRACKET,1ST MOUNTING,R |
57310-83000-000 |
US $25.21 |
||
|
12
|
12
57320-83000-000 BRACKET,1ST MOUNTING,L |
57320-83000-000 |
US $25.21 |
||
|
13
|
13
71411-83002-000 PANEL,ENGINE SPLASH |
71411-83002-000 |
US $38.77 |
||
|
14
|
14
03241-06103-000
New Genuine Part
|
03241-06103-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0610A-000 SCREW |
03241-0610A-000 |
US $0.76 |
||
|
15
|
15
71441-83002-000
メンバ,サブ
|
71441-83002-000 |
— | ||
| replacement | |||||
|
15
|
15
71441-50C00-000 MEMBER,SUB |
71441-50C00-000 |
US $26.31 |
||
|
16
|
16
01500-10203-000
Plug, oil drain
|
01500-10203-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-1020B-000 BoltBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
17
|
17
71491-80000-000
Cachet
|
71491-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
71491-80002-000 PAD,BODY MOUNTING NO.1 |
71491-80002-000 |
from US $2.90 |
||
|
18
|
18
71493-83001-000 PAD,BODY MOUNTING NO.3 |
71493-83001-000 |
from US $1.80 |
||
|
19
|
19
71494-80001-000 PAD,BODY MOUNTING NO.4 |
71494-80001-000 |
US $1.60 |
||
|
20
|
20
71494-80201-000
パッド,ボディマウンチング,NO.4
|
71494-80201-000 |
— | ||
| replacement | |||||
|
20
|
20
71494-80202-000 PAD,BODY MOUNTING NO.4 |
71494-80202-000 |
US $11.52 |
||
|
21
|
21
57321-52001-000 PAD,BODY MOUNTING NO.2 |
57321-52001-000 |
US $2.24 |
||
|
21
|
21
71492-80010-000
Pad, body mount no.2
|
71492-80010-000 |
— | ||
| replacement | |||||
|
21
|
21
71492-80011-000 PAD,BODY MOUNTING NO.2 |
71492-80011-000 |
US $8.64 |
||
|
21
|
21
50140-00000-000
Pad, body mount no.2
|
50140-00000-000 |
— | ||
|
22
|
22
09118-10041-000 BOLT(10X40) |
09118-10041-000 |
US $20.20 |
||
|
23
|
23
09100-10168-000 BOLT(10X37) |
09100-10168-000 |
from US $0.63 |
||
|
24
|
24
59119-85C00-000
Nut
|
59119-85C00-000 |
— | ||
|
25
|
25
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
26
|
26
71610-83000-000 CUSHION,BODY MTG UPPER |
71610-83000-000 |
from US $7.25 |
||
|
27
|
27
71620-83000-000 CUSHION,BODY MTG,LOWER |
71620-83000-000 |
from US $6.41 |
||
|
28
|
28
71631-83000-000
カラー,ボディマウンチング
|
71631-83000-000 |
— | ||
| replacement | |||||
|
28
|
28
71631-83001-000 COLLAR,BODY MOUNTING |
71631-83001-000 |
US $1.60 |
||
|
29
|
29
71632-83010-000
BOTTOM BODY MOUNTING
|
71632-83010-000 |
— | ||
| replacement | |||||
|
29
|
29
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
from US $2.24 |
||
|
30
|
30
71420-83001-000
Stay,radiator,r
|
71420-83001-000 |
— | ||
|
31
|
31
71431-84C50-000
Stay, radiator lh
|
71431-84C50-000 |
— | ||
|
32
|
32
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
32
|
32
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
33
|
33
75411-83001-000 PANEL,HEAT PROTECTOR |
75411-83001-000 |
US $84.80 |
||
|
34
|
34
03141-06163-000
Screw 6x16
|
03141-06163-000 |
— | ||
| replacement | |||||
|
34
|
34
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
35
|
35
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
36
|
36
71471-83300-000 HOOK,RR |
71471-83300-000 |
US $15.36 |
||
|
37
|
37
71472-80030-000
SUPPORT,REAR HOOK
|
71472-80030-000 |
— | ||
|
38
|
38
71473-80030-000 REINFORCEMENT,REAR HOOK |
71473-80030-000 |
US $5.34 |
||
|
39
|
39
01570-12353-000
ボルト
|
01570-12353-000 |
— | ||
| replacement | |||||
|
39
|
39
01570-1235A-000 Bolt |
01570-1235A-000 |
US $21.70 |
||
|
40
|
40
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
40
|
40
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
41
|
41
02046-00000-000
Washer
|
02046-00000-000 |
— | ||
