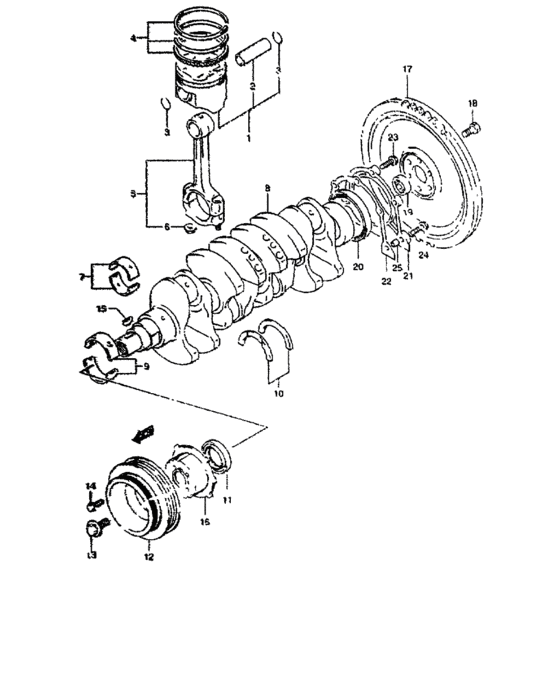

Crankshaft (CRANKSHAFT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-63880-0A0 PISTON SET,STD:MARK 1 |
12100-63880-0A0 |
from US $79.27 |
||
|
1
|
1
12100-63880-0B0 PISTON SET,STD:MARK 2 |
12100-63880-0B0 |
from US $37.46 |
||
|
1
|
1
12100-63880-050 PISTON SET,OS:0.50 |
12100-63880-050 |
US $81.97 |
||
|
2
|
2
12151-85C00-000
Pin, piston
|
12151-85C00-000 |
— | ||
|
3
|
3
12153-85C00-000
Snap ring
|
12153-85C00-000 |
— | ||
|
4
|
4
12140-63E50-000 RING SET,PISTON (STD) |
12140-63E50-000 |
from US $54.25 |
||
|
4
|
4
12140-63E50-050 RING SET,PISTON OS:0.50 |
12140-63E50-050 |
US $38.07 |
||
|
5
|
5
12160-70C00-000 Connecting rod assy |
12160-70C00-000 |
US $75.29 |
||
| replacement | |||||
|
5
|
5
12160-70C10-000 CONNROD ASSY |
12160-70C10-000 |
from US $75.29 |
||
|
6
|
6
09159-08033-000 NUT |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12100-84810-000
Bearing set, con-rod
STD, T : 1.5 |
12100-84810-000 |
— | ||
|
7
|
7
12100-84810-025
Bearing set, connrod
US : 0.25, T : 1.625 |
12100-84810-025 |
— | ||
|
8
|
8
12221-83E00-000 CRANKSHAFT |
12221-83E00-000 |
from US $508.52 |
||
|
9
|
9
12340-84C00-0A0
Bearing set
STD, T : 2 |
12340-84C00-0A0 |
— | ||
|
9
|
9
12340-84C00-0B0
Bearing set
STD, T : 2 |
12340-84C00-0B0 |
— | ||
|
9
|
9
12340-84C00-0C0
Bearing set
STD, T : 2 |
12340-84C00-0C0 |
— | ||
|
9
|
9
12340-84C00-0D0
Bearing set
STD, T : 2 |
12340-84C00-0D0 |
— | ||
|
9
|
9
12340-84C00-0E0
Bearing set
STD, T : 2 |
12340-84C00-0E0 |
— | ||
|
9
|
9
12300-84810-0AA
Bearing set
US : 0.25, T : 2.125 |
12300-84810-0AA |
— | ||
|
9
|
9
12300-84810-0BA
Bearing set
US : 0.25, T : 2.125 |
12300-84810-0BA |
— | ||
|
9
|
9
12300-84810-0CA
Bearing set
US : 0.25, T : 2.125 |
12300-84810-0CA |
— | ||
|
9
|
9
12300-84810-0DA
Bearing set
US : 0.25, T : 2.125 |
12300-84810-0DA |
— | ||
|
9
|
9
12300-84810-0EA
Bearing set
US : 0.25, T : 2.125 |
12300-84810-0EA |
— | ||
|
10
|
10
12300-84820-000
Bearing set, crank thrust
STD, T : 2.5 |
12300-84820-000 |
— | ||
|
10
|
10
12351-84C00-000
Bearing , crank thrust
OS : 0.125, T : 2.563 |
12351-84C00-000 |
— | ||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.51 |
||
|
12
|
12
12611-50G00-000 PULLEY,CRANKSHAFT |
12611-50G00-000 |
from US $84.98 |
||
|
13
|
13
12619-53B01-000 BOLT,CRANK PULLEY |
12619-53B01-000 |
from US $8 |
||
|
14
|
14
09103-06185-000 BOLT(6X20)Bolt (6x20) |
09103-06185-000 |
from US $1.28 |
||
|
15
|
15
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.53 |
||
|
16
|
16
12630-52G00-000
Pulley, crank timing belt
, 2, Israel |
12630-52G00-000 |
— | ||
| replacement | |||||
|
16
|
16
12630-52G01-000 PULLEY,CRANK TIMING BELT, 2, Israel |
12630-52G01-000 |
from US $31.41 |
||
|
17
|
17
12620-83000-000 FLYWHEEL |
12620-83000-000 |
US $220.07 |
||
|
18
|
18
09103-10068-000
Bolt
|
09103-10068-000 |
— | ||
| replacement | |||||
|
18
|
18
09100-10275-000 BOLT(10X18.5) |
09100-10275-000 |
from US $1.44 |
||
|
19
|
19
12623-85C00-000
Bearing, input shaft
|
12623-85C00-000 |
— | ||
|
20
|
20
09283-68002-000 SEAL,OIL(68X86X8) |
09283-68002-000 |
from US $25.83 |
||
|
21
|
21
11341-85C00-000
Housing, oil seal
|
11341-85C00-000 |
— | ||
|
22
|
22
11349-85C00-000
Gasket
|
11349-85C00-000 |
— | ||
|
23
|
23
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
24
|
24
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
24
|
24
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
25
|
25
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
