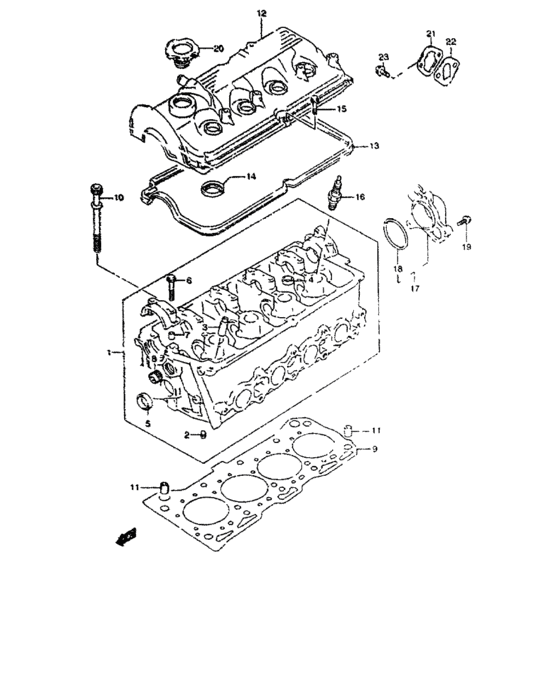

Cylinder head (CYLINDER HEAD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-57B02-000
Head assy, cylinder
|
11100-57B02-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-52G01-000 HEAD ASSY,CYLINDER |
11100-52G01-000 |
from US $1,653.80 |
||
|
2
|
2
11112-73002-000
Plug, oil venturi
|
11112-73002-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
from US $1.60 |
||
|
3
|
3
11115-60B11-001 GUIDE,VALVE |
11115-60B11-001 |
from US $12.73 |
||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
5
|
5
09241-30009-000
Plug
|
09241-30009-000 |
— | ||
| replacement | |||||
|
5
|
5
09241-30010-000 PLUG |
09241-30010-000 |
from US $2.23 |
||
|
6
|
6
11128-60B00-000 ボルト,カムシャフトハウジング(6X41) |
11128-60B00-000 |
US $0.97 |
||
| replacement | |||||
|
6
|
6
09103-06132-000 BOLT(6X41) |
09103-06132-000 |
from US $1.28 |
||
|
7
|
7
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
8
|
8
21947-85C50-000
Plug, axle housing drain
|
21947-85C50-000 |
— | ||
|
9
|
9
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $56.30 |
||
|
10
|
10
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $4.80 |
||
|
11
|
11
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
12
|
12
11170-66D00-000
カバー,シリンダヘッド
|
11170-66D00-000 |
— | ||
| replacement | |||||
|
12
|
12
11170-66D10-000 Cover,cylinder head |
11170-66D10-000 |
US $371.68 |
||
|
13
|
13
11189-71C00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover |
11189-71C00-000 |
from US $13.37 |
||
|
14
|
14
11179-71C01-000 O-RING |
11179-71C01-000 |
from US $1.98 |
||
|
15
|
15
11178-71C10-000 BOLT,CYLINDER HEAD COVER |
11178-71C10-000 |
from US $1.31 |
||
|
16
|
16
09482-00427-000 SPARK PLUG (NGK BKR6E)BKR6E |
09482-00427-000 |
from US $5.29 |
||
|
16
|
16
09482-00429-000 PLUG,SPARK(ND K20PR-U) |
09482-00429-000 |
from US $6.71 |
||
| replacement | |||||
|
16
|
16
09482-00427-000 SPARK PLUG (NGK BKR6E)BKR6E |
09482-00427-000 |
from US $5.29 |
||
|
17
|
17
11160-81810-000 CASE SET,DLI SENSOR |
11160-81810-000 |
US $182.40 |
||
|
18
|
18
11162-71C10-000 O-RING,CASEO ring, dli sensor case |
11162-71C10-000 |
from US $2.24 |
||
|
19
|
19
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
19
|
19
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
20
|
20
16920-86502-000
Cap, oil filler
|
16920-86502-000 |
— | ||
| replacements | |||||
|
20
|
20
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
20
|
20
16920-83G01-000 CAP OIL FILLER |
16920-83G01-000 |
US $10.22 |
||
|
21
|
21
15317-77901-000
Plate,fuel pump
|
15317-77901-000 |
— | ||
| replacement | |||||
|
21
|
21
15317-7790V-000 PLATE,FUEL PUMP |
15317-7790V-000 |
US $5.81 |
||
|
22
|
22
15319-C63B0-000
Gasket, fuel pump
|
15319-C63B0-000 |
— | ||
|
23
|
23
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
23
|
23
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
