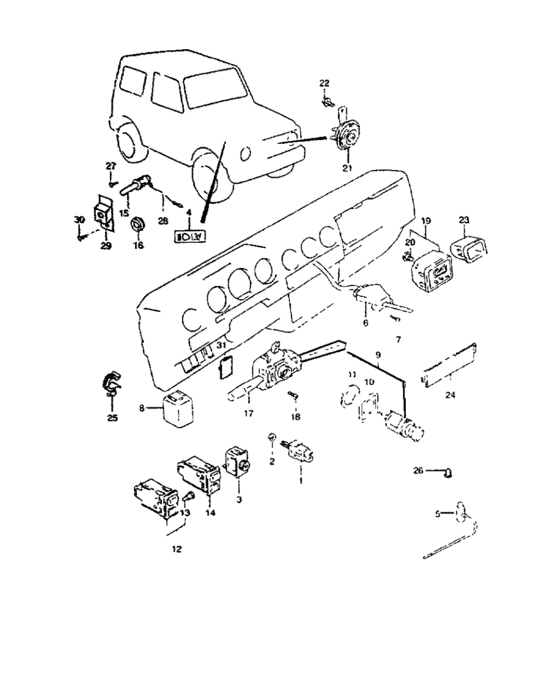

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
US $42.40 |
||
|
2
|
2
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
3
|
3
35180-70A00-000
Switch assy,headlamp leveling
|
35180-70A00-000 |
— | ||
|
4
|
4
35186-70A01-000
LABEL,HEADLAMP INITIAL AIMING
|
35186-70A01-000 |
— | ||
|
5
|
5
37940-A7900-000
Switch assy,parking brake
|
37940-A7900-000 |
— | ||
|
6
|
6
37870-80000-000 SWITCH ASSY,HTR FAN MOTOR |
37870-80000-000 |
US $64 |
||
|
7
|
7
03211-04103-000
Screw
|
03211-04103-000 |
— | ||
| replacements | |||||
|
7
|
7
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
7
|
7
03211-0410A-000 SCREW |
03211-0410A-000 |
from US $1.31 |
||
|
8
|
8
38610-84002-000
リレー,ターンシグナル/4ウェイ
|
38610-84002-000 |
— | ||
| replacement | |||||
|
8
|
8
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $63.20 |
||
|
9
|
9
39400-83010-000
Lighter assy, cigarette
|
39400-83010-000 |
— | ||
|
10
|
10
39471-84C00-000
Rim
|
39471-84C00-000 |
— | ||
|
11
|
11
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
12
|
12
37860-60A00-000 SWITCH ASSY,RR DEFOGGER |
37860-60A00-000 |
US $28.84 |
||
|
13
|
13
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
14
|
14
37280-70F00-000
SWITCH ASSY,RR FOG
|
37280-70F00-000 |
— | ||
|
15
|
15
37670-D8000-000
Switch assy, door
|
37670-D8000-000 |
— | ||
|
16
|
16
09250-14003-000 CAP(OD:18) |
09250-14003-000 |
US $2.08 |
||
|
17
|
17
37400-71A10-000
SWITCH ASSY,COMB
|
37400-71A10-000 |
— | ||
|
18
|
18
02112-05163-000
Screw
|
02112-05163-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
18
|
18
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.96 |
||
|
19
|
19
34600-84CA0-000
Clok assy
EXC. Greece, Spain |
34600-84CA0-000 |
— | ||
|
20
|
20
34670-50A00-000 BULB,CLOCK 14V 2W14V, 2W |
34670-50A00-000 |
US $9.90 |
||
|
21
|
21
38500-84C01-000
Horn assy
|
38500-84C01-000 |
— | ||
|
22
|
22
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
22
|
22
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
23
|
23
73844-70A01-000 BOX,CONSOLE PANELN/CLOCK |
73844-70A01-000 |
US $25.60 |
||
|
24
|
24
39161-70E01-000 COVER,RADIO HOLEN/RADIO |
39161-70E01-000 |
US $13.23 |
||
|
25
|
25
34935-80C10-000 CLAMP ANT FEEDER |
34935-80C10-000 |
US $2.69 |
||
|
26
|
26
37941-A7900-000
Insulator, parking brake sw
|
37941-A7900-000 |
— | ||
|
27
|
27
03141-04123-000
Screw
|
03141-04123-000 |
— | ||
| replacement | |||||
|
27
|
27
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
28
|
28
37670-84CA0-000
Wire comp, door sw
|
37670-84CA0-000 |
— | ||
|
29
|
29
37670-C8000-000
Bracket, door sw
|
37670-C8000-000 |
— | ||
|
30
|
30
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
31
|
31
37275-70E10-000 CAP,OPTION SW HOLEHT |
37275-70E10-000 |
US $11.20 |
||
