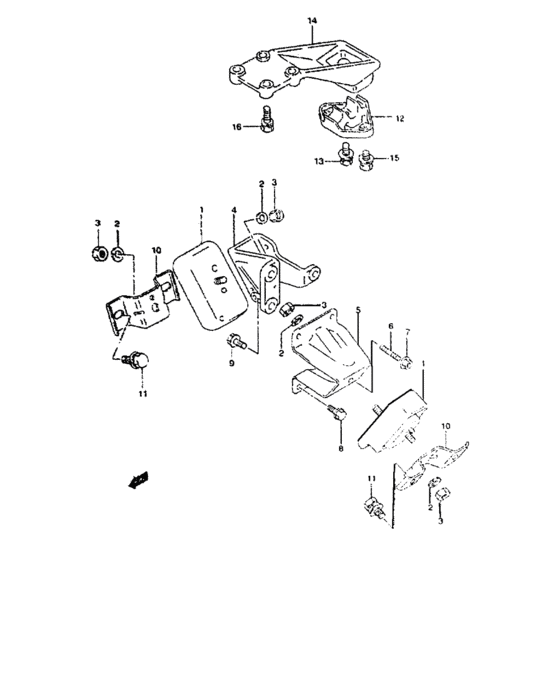

Engine mounting (ENGINE MOUNTING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-81A00-000 MOUNTING,ENG FR |
11610-81A00-000 |
US $163.20 |
||
|
2
|
2
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
3
|
3
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-81A00-000 BRACKET,ENG FR MTG,R |
11641-81A00-000 |
US $50.42 |
||
|
5
|
5
11651-81A00-000 BRACKET,ENG FR MTG,L |
11651-81A00-000 |
US $18.95 |
||
|
6
|
6
01421-10203-000
Bolt,stud
|
01421-10203-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-1020A-000 BOLT,STUD |
01421-1020A-000 |
from US $3.96 |
||
|
7
|
7
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
9
|
9
01500-10303-000
Bolt
|
01500-10303-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-1030A-000 Bolt |
01500-1030A-000 |
from US $0.96 |
||
|
10
|
10
11661-83000-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-83000-000 |
US $8.06 |
||
|
11
|
11
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
12
|
12
11710-A8000-000
Support moteur arr
|
11710-A8000-000 |
— | ||
|
13
|
13
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
14
|
14
11741-80010-000 BRACKET,ENG RR MTG |
11741-80010-000 |
US $47.89 |
||
|
15
|
15
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
15
|
15
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
16
|
16
01570-08303-000
Bolt, rear
|
01570-08303-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-0830A-000 Bolt |
01570-0830A-000 |
US $1.12 |
||
