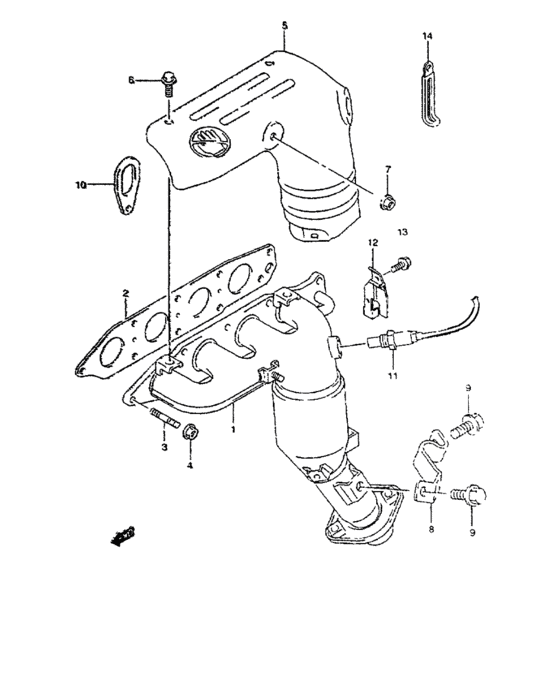

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-80C00-000 MANIFOLD,EXH |
14110-80C00-000 |
US $1,013.76 |
||
|
2
|
2
14140-52G00-000 Gasket, exhaust manifold |
14140-52G00-000 |
from US $16.83 |
||
|
3
|
3
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
3
|
3
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.28 |
||
|
3
|
3
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
4
|
4
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
14120-80C10-000 COVER,EXH MANF |
14120-80C10-000 |
US $56.30 |
||
|
6
|
6
09116-06181-000 BOLT(6X13) |
09116-06181-000 |
from US $1.08 |
||
|
7
|
7
09159-06086-000 NUT |
09159-06086-000 |
US $15.10 |
||
|
8
|
8
14271-80C00-000
Stiffener
|
14271-80C00-000 |
— | ||
|
9
|
9
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
10
|
10
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
10
|
10
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
11
|
11
18213-80A00-000
センサ,オキシジェン
|
18213-80A00-000 |
— | ||
| replacement | |||||
|
11
|
11
18213-80A01-000 SENSOR ASSY,OXYGEN |
18213-80A01-000 |
US $292.56 |
||
|
12
|
12
18214-65D20-000
ブラケット,オキシジェンセンサ
|
18214-65D20-000 |
— | ||
| replacement | |||||
|
12
|
12
18214-65D21-000 BRACKET,OXYGEN SENSOR |
18214-65D21-000 |
US $5.02 |
||
|
13
|
13
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
09404-08205-000 CLAMP(L:45 T:0.6)Clamp (l:62) |
09404-08205-000 |
from US $1.98 |
||
