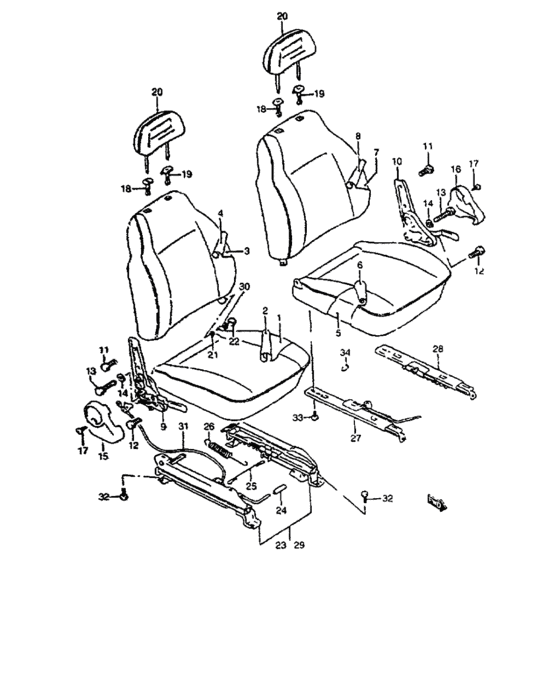

Front seat (FRONT SEAT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-84C40-000
Cushion sub assy r/h
|
85105-84C40-000 |
— | ||
|
2
|
2
85180-84C40-TX8
Cover assy,cushion rh
|
85180-84C40-TX8 |
— | ||
|
2
|
2
85180-84C40-TX9
Cover assy,cushion rh
|
85180-84C40-TX9 |
— | ||
|
2
|
2
85180-84C40-XT2
Cover assy, cushion rh
CT (STANDARD) |
85180-84C40-XT2 |
— | ||
|
3
|
3
85305-84C40-000
Back sub assy rh
|
85305-84C40-000 |
— | ||
|
4
|
4
85380-84C40-TX8
Cover assy,back rh
|
85380-84C40-TX8 |
— | ||
|
4
|
4
85380-84C40-TX9
Cover assy,back rh
|
85380-84C40-TX9 |
— | ||
|
4
|
4
85380-84C40-XT2
Cover assy, back rh
CT (STANDARD) |
85380-84C40-XT2 |
— | ||
|
5
|
5
85106-84C40-000
Cushion sub assy lh
|
85106-84C40-000 |
— | ||
|
6
|
6
85680-84C40-TX8
Cover assy,cushion lh
|
85680-84C40-TX8 |
— | ||
|
6
|
6
85680-84C40-TX9
Cover assy,cushion lh
|
85680-84C40-TX9 |
— | ||
|
6
|
6
85680-84C40-XT2
Cover assy, cushion lh
CT (STANDARD) |
85680-84C40-XT2 |
— | ||
|
7
|
7
85306-84C40-000
Back sub assy lh
|
85306-84C40-000 |
— | ||
|
8
|
8
85880-84C40-TX8
Cover assy,back lh
|
85880-84C40-TX8 |
— | ||
|
8
|
8
85880-84C40-TX9
Cover assy,back lh
|
85880-84C40-TX9 |
— | ||
|
8
|
8
85880-84C40-XT2
Cover assy, back lh
CT (STANDARD) |
85880-84C40-XT2 |
— | ||
|
9
|
9
85210-83001-5PK
Reclining assy,fr seat,r
|
85210-83001-5PK |
— | ||
|
10
|
10
85710-80290-5PK
RECLINING,FR SEAT,L
|
85710-80290-5PK |
— | ||
|
11
|
11
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
11
|
11
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
12
|
12
01107-10403-000
Screw,lower
|
01107-10403-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
13
|
13
01500-10163-000
Bolt
|
01500-10163-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
14
|
14
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
15
|
15
85221-82001-5PK COVER,RECLINING,R |
85221-82001-5PK |
US $8.02 |
||
|
16
|
16
85721-82001-5PK COVER,RECLINING,L |
85721-82001-5PK |
US $8.02 |
||
|
17
|
17
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
18
|
18
85391-84C00-000
Guide rh, headrest
|
85391-84C00-000 |
— | ||
|
19
|
19
85890-84C00-000
Guide lh, headrest
|
85890-84C00-000 |
— | ||
|
20
|
20
86401-84C10-T02
Headrestraint
GRAY |
86401-84C10-T02 |
— | ||
|
21
|
21
85291-85C00-000
Bush
|
85291-85C00-000 |
— | ||
|
22
|
22
08313-B1108-300
Nut
|
08313-B1108-300 |
— | ||
|
23
|
23
86720-83030-000
Sliding guide,outer rh
|
86720-83030-000 |
— | ||
|
24
|
24
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
25
|
25
86731-83000-000 ROD,WALKIN TENSION |
86731-83000-000 |
US $8.64 |
||
|
26
|
26
86732-83030-000
SPRING,WALKIN TENSION
|
86732-83030-000 |
— | ||
|
27
|
27
51789-00000-000
Sliding guide,inner lh
|
51789-00000-000 |
— | ||
|
28
|
28
51790-00000-000
Sliding guide,outer lh
|
51790-00000-000 |
— | ||
|
29
|
29
86710-83030-000
Sliding guide,inner rh
|
86710-83030-000 |
— | ||
|
30
|
30
08322-11085-000
Washer
|
08322-11085-000 |
— | ||
| replacements | |||||
|
30
|
30
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
30
|
30
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
31
|
31
87470-83000-000
Cable assy,reclining
|
87470-83000-000 |
— | ||
|
32
|
32
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0612A-000 Bolt |
01500-0612A-000 |
from US $0.76 |
||
|
33
|
33
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
33
|
33
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
34
|
34
08010-00000-000
Clip
|
08010-00000-000 |
— | ||
