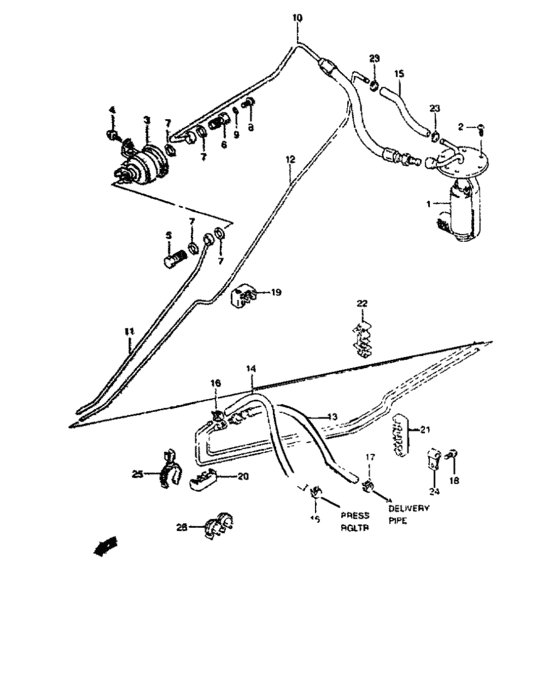

Fuel Pump (FUEL PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80C02-000
ポンプアッシ,フューエル
|
15100-80C02-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-80C1V-000 PUMP ASSY,FUEL |
15100-80C1V-000 |
US $1,481.60 |
||
|
2
|
2
15329-85C00-000
Screw, lock cover
|
15329-85C00-000 |
— | ||
|
3
|
3
15410-80C00-000 FILTER,FUEL |
15410-80C00-000 |
from US $46.71 |
||
| replacement | |||||
|
3
|
3
15410-80C10-000
FILTER,FUEL
|
15410-80C10-000 |
— | ||
|
4
|
4
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
13921-85552-000
ボルト,ユニオンフューエルフィルタ
|
13921-85552-000 |
— | ||
| replacement | |||||
|
5
|
5
09360-12008-000 UNION |
09360-12008-000 |
from US $5.60 |
||
|
6
|
6
13923-85551-000 BOLT,UNION FUEL FILTERBolt |
13923-85551-000 |
from US $5.36 |
||
|
7
|
7
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.10 |
||
|
8
|
8
13924-85550-000
PLUG
|
13924-85550-000 |
— | ||
| replacement | |||||
|
8
|
8
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.52 |
||
|
10
|
10
15810-80C20-000 HOSE,FUEL FILTER INLET |
15810-80C20-000 |
US $202.40 |
||
|
11
|
11
15820-80C20-000 PIPE,FUEL FILTER OUTLET |
15820-80C20-000 |
US $79.49 |
||
|
12
|
12
15861-80C21-000
PIPE,FUEL RTN
|
15861-80C21-000 |
— | ||
|
13
|
13
15830-80C20-000
HOSE,FUEL PIPE TO ENG
|
15830-80C20-000 |
— | ||
|
14
|
14
09356-55117-360
Hose, fuel return
|
09356-55117-360 |
— | ||
|
15
|
15
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) |
09356-58127-600 |
from US $13.64 |
||
|
16
|
16
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.76 |
||
|
18
|
18
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
15892-60A11-000 CLAMP,FUEL PIPE |
15892-60A11-000 |
US $1.60 |
||
|
20
|
20
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
from US $1.15 |
||
|
21
|
21
15895-80C00-000
CLAMP,FUEL PIPE
|
15895-80C00-000 |
— | ||
|
22
|
22
15897-80C00-000
CLAMP,FUEL PIPE
|
15897-80C00-000 |
— | ||
|
23
|
23
15895-80C00-000
CLAMP,FUEL PIPE
|
15895-80C00-000 |
— | ||
|
24
|
24
09403-08404-000
CLAMP
|
09403-08404-000 |
— | ||
| replacement | |||||
|
24
|
24
09403-08417-000 Clamp,rsvr Hose |
09403-08417-000 |
from US $3.91 |
||
|
25
|
25
09408-00063-000 CLAMP |
09408-00063-000 |
from US $0.97 |
||
|
26
|
26
09408-A0012-100
Clamp, fuel hose
|
09408-A0012-100 |
— | ||
