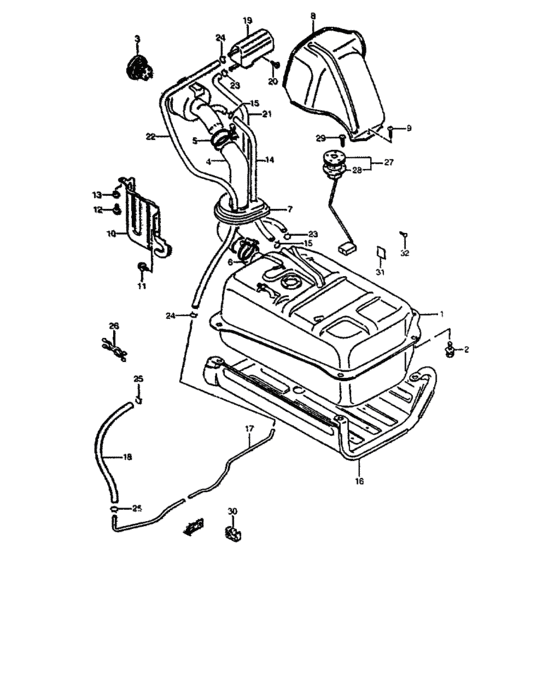

Fuel tank (GASOLINE:FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-70A01-000
タンクアッシ,フューエル
|
89101-70A01-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-70A20-000 TANK ASSY,FUEL |
89101-70A20-000 |
US $422.40 |
||
|
2
|
2
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.60 |
||
|
3
|
3
89260-50C20-000
Cap assy, fuel filler
|
89260-50C20-000 |
— | ||
|
4
|
4
89241-83040-000
HOSE,FUEL TANK FILLER
|
89241-83040-000 |
— | ||
|
5
|
5
08003-00000-000
Clamp, upper
|
08003-00000-000 |
— | ||
|
6
|
6
09400-52312-000 CLAMP |
09400-52312-000 |
from US $1.26 |
||
|
7
|
7
89281-80010-000
シール,フューエルインレットパイプダスト
|
89281-80010-000 |
— | ||
| replacement | |||||
|
7
|
7
89281-80020-000 SEALER,FUEL FILLER HOSE DUST |
89281-80020-000 |
from US $12.98 |
||
|
8
|
8
89311-80000-000
PROTECTOR,FUEL INLET PIPE UPR
|
89311-80000-000 |
— | ||
|
9
|
9
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
10
|
10
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
from US $14.42 |
||
|
11
|
11
09122-86001-000
Bolt
|
09122-86001-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
09103-06089-000 BOLT(6X20) |
09103-06089-000 |
from US $0.25 |
||
|
13
|
13
09305-07003-000 BUSH |
09305-07003-000 |
from US $0.36 |
||
|
14
|
14
09355-11188-00B HOSE(11X17.8X2000) |
09355-11188-00B |
US $23 |
||
|
14
|
14
09355-11188-440
Hose, breather
|
09355-11188-440 |
— | ||
|
15
|
15
09401-B1630-100
Clip
|
09401-B1630-100 |
— | ||
|
16
|
16
89320-A8300-000
Protecteur reservoir
|
89320-A8300-000 |
— | ||
|
17
|
17
89431-70A01-000
PIPE,EVAPORATION NO.1
|
89431-70A01-000 |
— | ||
|
18
|
18
09355-54128-600
Hose,5.4x12.2x600
|
09355-54128-600 |
— | ||
| replacement | |||||
|
18
|
18
09355-56128-600 HOSE(5.6X12.4X600) |
09355-56128-600 |
from US $8.46 |
||
|
19
|
19
89411-50C00-000
SEPARATOR,VAPOR LIQUID
|
89411-50C00-000 |
— | ||
|
20
|
20
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
21
|
21
09355-54128-00B HOSE(5.6X12.4X2000) |
09355-54128-00B |
US $21.34 |
||
|
22
|
22
09355-54128-600
Hose,5.4x12.2x600
|
09355-54128-600 |
— | ||
| replacement | |||||
|
22
|
22
09355-56128-600 HOSE(5.6X12.4X600) |
09355-56128-600 |
from US $8.46 |
||
|
23
|
23
09401-A0840-200
Clip, separator inlet hose
|
09401-A0840-200 |
— | ||
|
24
|
24
09401-A0840-200
Clip, separator inlet hose
|
09401-A0840-200 |
— | ||
|
25
|
25
17879-85C00-000
Clip, 3 way side
|
17879-85C00-000 |
— | ||
|
26
|
26
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
27
|
27
34810-80700-000 GAUGE ASSY,FUEL LEVEL |
34810-80700-000 |
from US $66.88 |
||
|
28
|
28
34825-67012-000 GASKET |
34825-67012-000 |
from US $1.60 |
||
|
29
|
29
15329-85C00-000
Screw, lock cover
|
15329-85C00-000 |
— | ||
|
30
|
30
15896-73A00-000 CLAMP,FUEL PIPE |
15896-73A00-000 |
US $1.92 |
||
|
31
|
31
50029-00000-000
Seal, spare tire bracket hole
|
50029-00000-000 |
— | ||
|
32
|
32
59934-85C00-5ES
Clip
|
59934-85C00-5ES |
— | ||
