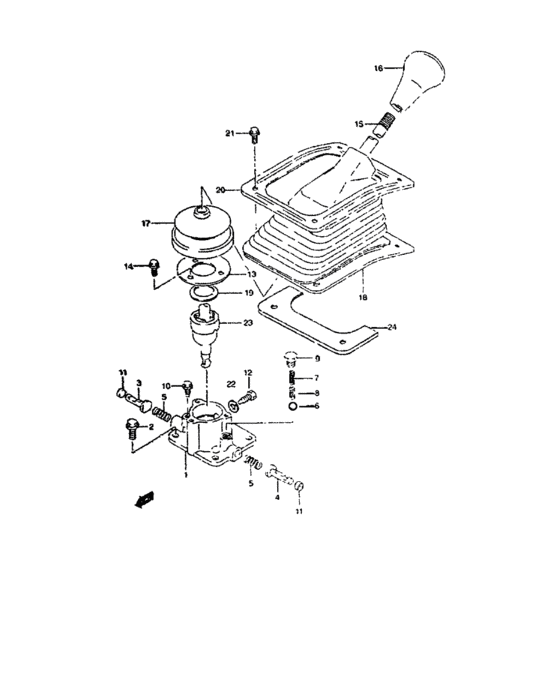

Gear shifting control (GEAR SHIFTING CONTROL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-83001-000
Carcasse levier
|
25121-83001-000 |
— | ||
| replacements | |||||
|
1
|
1
25121-83090-000 CASE,GEAR SHF LEVER |
25121-83090-000 |
from US $52.70 |
||
|
1
|
1
09135-10005-000 BOLT(10X18.4) |
09135-10005-000 |
from US $1.78 |
||
|
1
|
1
28101-83035-000 LEVER,GEAR SHF |
28101-83035-000 |
from US $65.77 |
||
|
2
|
2
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
3
|
3
25341-69002-000 PIN,LOW SPEED SELECT GUIDE |
25341-69002-000 |
from US $6.68 |
||
|
4
|
4
25342-69002-000 PIN,REVERSE SELECT GUIDE |
25342-69002-000 |
from US $7.90 |
||
|
5
|
5
09440-11005-000 SPRING |
09440-11005-000 |
from US $0.68 |
||
|
6
|
6
06112-10004-000 BALL |
06112-10004-000 |
from US $0.74 |
||
| replacement | |||||
|
6
|
6
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
7
|
7
09440-04019-000 SPRING |
09440-04019-000 |
from US $0.45 |
||
|
8
|
8
09440-07005-000 SPRING |
09440-07005-000 |
from US $0.92 |
||
|
9
|
9
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $0.47 |
||
|
10
|
10
09128-06032-000 SCREW(6X13.5) |
09128-06032-000 |
from US $0.72 |
||
|
11
|
11
09241-08003-000 PLUG |
09241-08003-000 |
from US $0.72 |
||
|
12
|
12
21941-85C50-000
Bolt, lever locating
|
21941-85C50-000 |
— | ||
|
13
|
13
25125-A8000-100
Cover, lever case
|
25125-A8000-100 |
— | ||
|
14
|
14
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
28101-B8301-000
Lever, gear shifting control
|
28101-B8301-000 |
— | ||
|
16
|
16
28113-81A80-5PK
KNOB,CONTROL LEVER
|
28113-81A80-5PK |
— | ||
| replacement | |||||
|
16
|
16
28113-81A81-5PK KNOB,CONTROL LEVER(BLACK) |
28113-81A81-5PK |
from US $20.59 |
||
|
17
|
17
28135-80000-000 BOOT,NO.1 |
28135-80000-000 |
from US $15.32 |
||
|
18
|
18
28136-84CB0-000
Boot, lever no.2
|
28136-84CB0-000 |
— | ||
|
19
|
19
09164-A2400-300
Rondelle
|
09164-A2400-300 |
— | ||
|
20
|
20
28137-84CA0-000
Cover, boot
|
28137-84CA0-000 |
— | ||
|
21
|
21
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
23
|
23
28116-69000-000 SEAT,GEAR SHIFT CONTROL LEVER |
28116-69000-000 |
US $8.94 |
||
|
24
|
24
28136-84CA0-000
Gasket,cover
|
28136-84CA0-000 |
— | ||
