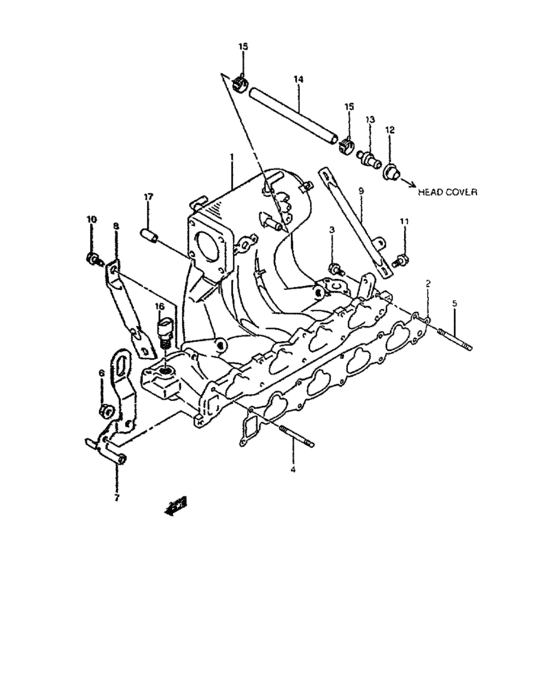

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-81A01-000
MANIFOLD,INTK
|
13110-81A01-000 |
— | ||
|
2
|
2
13119-85C10-000
Gasket
|
13119-85C10-000 |
— | ||
|
3
|
3
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.28 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
5
|
5
01421-08353-000
Bolt, stud
|
01421-08353-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.60 |
||
|
6
|
6
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
11852-66D01-000
フック,エンジン
|
11852-66D01-000 |
— | ||
| replacement | |||||
|
7
|
7
11852-66D02-000 HOOK,ENGINE NO.2 |
11852-66D02-000 |
US $8.91 |
||
|
8
|
8
13161-81A00-000 STIFFENER,INTK MANF LOWER |
13161-81A00-000 |
US $21.60 |
||
|
9
|
9
13166-81A00-000 STIFFENER,INTK MANF UPR |
13166-81A00-000 |
US $21.60 |
||
|
10
|
10
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
11
|
11
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
12
|
12
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
12
|
12
11198-98L00-000 Seal,pcv Valve |
11198-98L00-000 |
from US $2.74 |
||
|
13
|
13
18118-58B00-000 VALVE,PCV |
18118-58B00-000 |
from US $15.10 |
||
|
14
|
14
09354-80153-600 HOSE(8X15X600) |
09354-80153-600 |
from US $26.89 |
||
|
15
|
15
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
16
|
16
13650-50G01-000 Sensor,water Temp |
13650-50G01-000 |
from US $70.76 |
||
|
17
|
17
09250-04003-000 PLUG(OD:8)Plug (od:8) |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
17
|
17
07130-0510B-000 BoltBolt, sensor |
07130-0510B-000 |
from US $0.96 |
||
