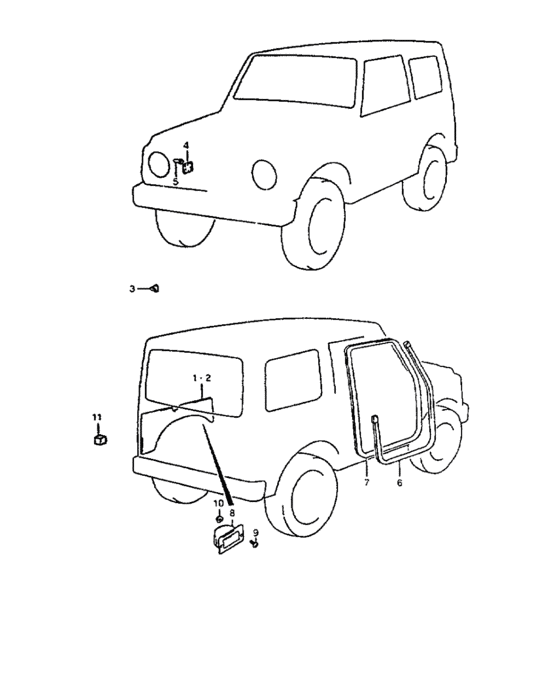

Interior trim (INTERIOR TRIM) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76110-84C10-T01
Trim, side body rh
HT |
76110-84C10-T01 |
— | ||
|
2
|
2
76120-84C00-T02
Trim, side body lh
EXC. 2 SEAT. France (CT) |
76120-84C00-T02 |
— | ||
|
2
|
2
76120-84C10-T02
Trim, side body lh
France (CT) |
76120-84C10-T02 |
— | ||
|
2
|
2
76120-84C20-T01
Trim, side body lh
HT |
76120-84C20-T01 |
— | ||
|
2
|
2
76120-H71A0-000
Trim, side body lh
2 SEAT, Belgium |
76120-H71A0-000 |
— | ||
|
3
|
3
09409-A0830-300
Clip tapiiserie
CT |
09409-A0830-300 |
— | ||
|
3
|
3
59932-85C00-000
Clip
HT |
59932-85C00-000 |
— | ||
|
4
|
4
76411-A8000-000
Cover, speaker hole
|
76411-A8000-000 |
— | ||
|
5
|
5
36578-85C10-000
Nut, cover
Germany |
36578-85C10-000 |
— | ||
|
6
|
6
84630-80000-000 TRIM,DOOR OPENING |
84630-80000-000 |
US $50.40 |
||
|
7
|
7
84645-A8010-100
Tapissere mod - v
|
84645-A8010-100 |
— | ||
|
8
|
8
86370-58140-T01
ASHTRAY,RR
EXC. 2 SEAT |
86370-58140-T01 |
— | ||
|
9
|
9
02122-04123-000
Screw
|
02122-04123-000 |
— | ||
| replacements | |||||
|
9
|
9
02122-0412B-000 SCREW |
02122-0412B-000 |
US $12.90 |
||
|
9
|
9
02122-0412A-000 SCREWScrew, cap |
02122-0412A-000 |
from US $0.96 |
||
|
10
|
10
08316-10043-000
Nut
|
08316-10043-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1004B-000 NUT |
08316-1004B-000 |
from US $4.28 |
||
|
11
|
11
50045-00000-000
Stopper, side rr trim,l
EXC. HT |
50045-00000-000 |
— | ||
