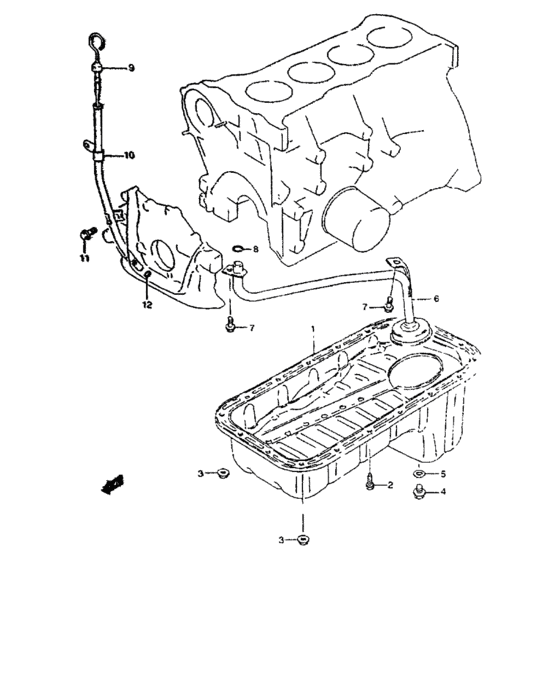

Oil pan (OIL PAN) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-80C00-000 PAN,OIL, 2, Israel |
11510-80C00-000 |
US $105.23 |
||
|
2
|
2
09117-A0603-300
Bolt
|
09117-A0603-300 |
— | ||
|
3
|
3
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
4
|
4
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.67 |
||
|
5
|
5
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.15 |
||
|
6
|
6
16520-83003-000 STRAINER,OIL PUMP |
16520-83003-000 |
from US $30.69 |
||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
9
|
9
16910-66D00-000 GAUGE,OIL LEVEL |
16910-66D00-000 |
from US $17.30 |
||
|
10
|
10
16930-64B02-000 GUIDE,OIL LEVEL GAUGE |
16930-64B02-000 |
from US $11.30 |
||
|
11
|
11
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
