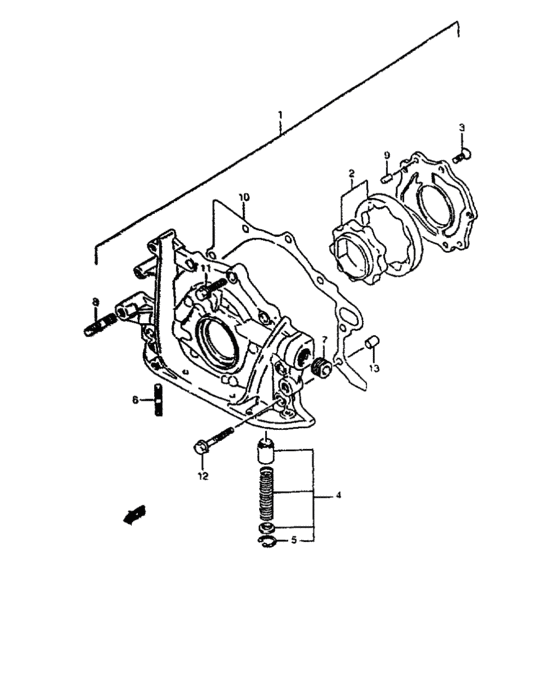

Oil pump (OIL PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-61820-000 PUMP SET OIL, 2, Israel : TYPE 2 |
16100-61820-000 |
US $204.73 |
||
| replacement | |||||
|
1
|
1
16100-61825-000 PUMP SET,OIL, 2, Israel : TYPE 2 |
16100-61825-000 |
from US $196.88 |
||
|
2
|
2
16130-60A00-000 ROTOR SET,OIL PUMP |
16130-60A00-000 |
from US $49.52 |
||
|
3
|
3
09126-06007-000 SCREW(6X14)Bolt |
09126-06007-000 |
from US $0.65 |
||
|
4
|
4
16150-60A00-000
Valve set, relief
|
16150-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
from US $4.48 |
||
|
5
|
5
08331-41156-000
Circlip
|
08331-41156-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.76 |
||
|
6
|
6
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
7
|
7
09246-08002-000 PLUG |
09246-08002-000 |
from US $0.63 |
||
|
8
|
8
01411-08203-000
Stud 8x20
|
01411-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0820B-000 BOLT,STUD |
01411-0820B-000 |
US $1.28 |
||
|
9
|
9
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
10
|
10
16119-85C00-000
Gasket, oil pump case
|
16119-85C00-000 |
— | ||
|
11
|
11
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
12
|
12
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $1.12 |
||
|
13
|
13
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
