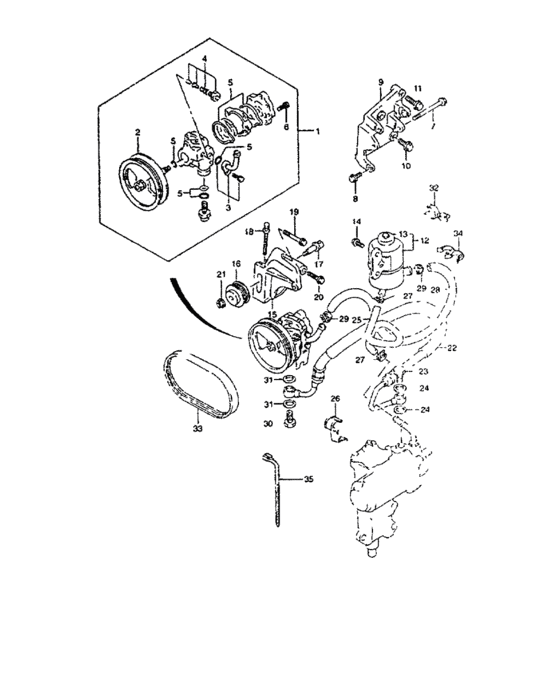

Power steering pump (POWER STEERING PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-70A50-000
PUMP ASSY,POWER STEERING
|
49100-70A50-000 |
— | ||
|
2
|
2
49111-70AA0-000
Pulley assy
|
49111-70AA0-000 |
— | ||
|
3
|
3
49112-70A50-000
CONNECTOR SET
|
49112-70A50-000 |
— | ||
|
4
|
4
49113-70AA0-000
TERMINAL SET
|
49113-70AA0-000 |
— | ||
|
5
|
5
49114-70AA0-000
SEAL SET
|
49114-70AA0-000 |
— | ||
|
6
|
6
49115-56B20-000 BOLT SET |
49115-56B20-000 |
from US $6.30 |
||
|
7
|
7
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
from US $1.24 |
||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
8
|
8
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
9
|
9
49120-70AA0-000
BRACKET,PUMP
|
49120-70AA0-000 |
— | ||
|
10
|
10
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $1.28 |
||
|
10
|
10
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
11
|
11
01517-10353-000
Bolt, mtg brkt lh
|
01517-10353-000 |
— | ||
|
12
|
12
49140-70A10-000 TANK ASSY,POWER STEERING,OIL |
49140-70A10-000 |
US $135.79 |
||
|
13
|
13
49141-60A00-000 CAP,TANK |
49141-60A00-000 |
from US $12.92 |
||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
49130-70AB0-000
BRACKET,TENSION PULLEY
|
49130-70AB0-000 |
— | ||
|
16
|
16
49160-70AA0-000 PULLEY ASSY,BELT TENSION |
49160-70AA0-000 |
from US $83.97 |
||
|
17
|
17
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
18
|
18
49163-70AA0-000 BOLT,TENSION ADJUST |
49163-70AA0-000 |
from US $3.06 |
||
|
19
|
19
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
20
|
20
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-1030B-000 BoltBolt, axle housing rear |
01550-1030B-000 |
from US $1.87 |
||
|
20
|
20
01550-1030A-000 Bolt |
01550-1030A-000 |
from US $1.12 |
||
|
21
|
21
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
49210-70A50-000
Hose, pressure
|
49210-70A50-000 |
— | ||
|
23
|
23
49251-85C00-000
Bolt
|
49251-85C00-000 |
— | ||
|
24
|
24
09168-14009-000
Washer
14X18X1.5 |
09168-14009-000 |
— | ||
| replacements | |||||
|
24
|
24
09168-14014-000 GASKET(14X18X1.5)14X18X1.5 |
09168-14014-000 |
from US $1.10 |
||
|
24
|
24
09168-14011-000 GASKET(14X20X1.5)14X18X1.5 |
09168-14011-000 |
from US $0.72 |
||
|
25
|
25
49221-70A50-000
Hose, return
|
49221-70A50-000 |
— | ||
|
26
|
26
49215-70A50-000
CLAMP,PRESSURE HOSE
|
49215-70A50-000 |
— | ||
|
27
|
27
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
28
|
28
49214-70A50-000
Hose, suction
|
49214-70A50-000 |
— | ||
|
29
|
29
11196-85C10-000
Clip, heater hose
|
11196-85C10-000 |
— | ||
|
30
|
30
49252-86CA0-000
Bolt
|
49252-86CA0-000 |
— | ||
|
31
|
31
09168-16002-000 GASKET(16X22X2)16X22X2 |
09168-16002-000 |
from US $1.31 |
||
|
32
|
32
09408-00157-000 CLAMP |
09408-00157-000 |
US $20.20 |
||
|
33
|
33
17521-85C11-000
Belt, power steering
|
17521-85C11-000 |
— | ||
|
34
|
34
09408-00117-000 CLAMP |
09408-00117-000 |
from US $1.26 |
||
|
35
|
35
36990-85C01-000
Clamp
|
36990-85C01-000 |
— | ||
