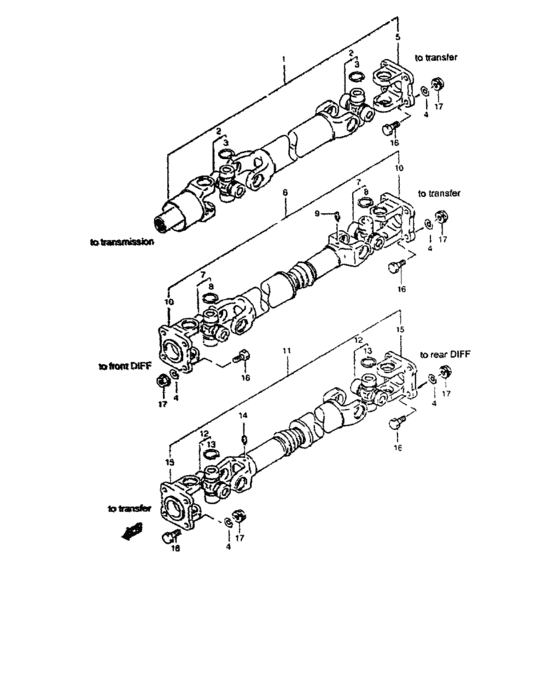

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-B8300-100
Shaft assy, propeller no.1
|
27101-B8300-100 |
— | ||
|
2
|
2
27200-85C00-000
Joint assy, universal
|
27200-85C00-000 |
— | ||
|
3
|
3
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $1.31 |
||
|
4
|
4
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.96 |
||
|
5
|
5
27131-B8300-100
Bride d ' entrainement
|
27131-B8300-100 |
— | ||
|
6
|
6
27102-C8300-100
Transmission
|
27102-C8300-100 |
— | ||
|
7
|
7
27200-85C00-000
Joint assy, universal
|
27200-85C00-000 |
— | ||
|
8
|
8
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $1.31 |
||
|
9
|
9
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
9
|
9
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
10
|
10
27131-B8300-100
Bride d ' entrainement
|
27131-B8300-100 |
— | ||
|
11
|
11
27103-C8300-100
Transmission ar
|
27103-C8300-100 |
— | ||
|
12
|
12
27200-85C00-000
Joint assy, universal
|
27200-85C00-000 |
— | ||
|
13
|
13
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $1.31 |
||
|
14
|
14
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
14
|
14
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
15
|
15
27131-B8300-100
Bride d ' entrainement
|
27131-B8300-100 |
— | ||
|
16
|
16
09100-08172-000
Vis
|
09100-08172-000 |
— | ||
| replacement | |||||
|
16
|
16
09100-08270-000 BOLT(8X28) |
09100-08270-000 |
from US $1.19 |
||
|
17
|
17
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
