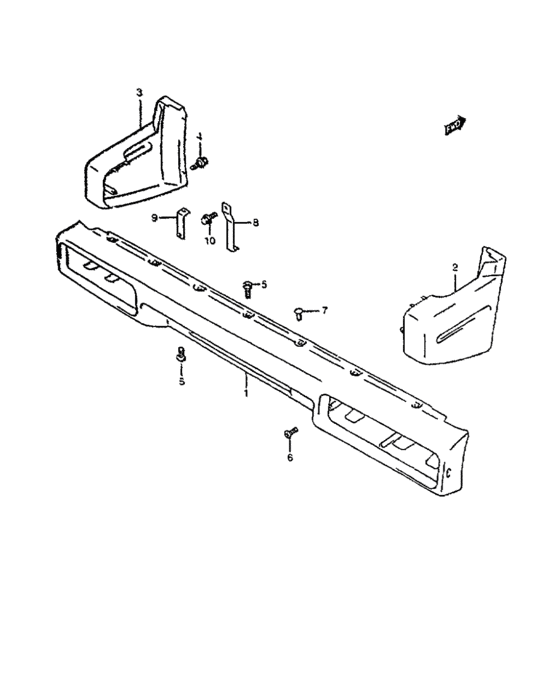

Rear bumper (REAR BUMPER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-82CB0-799
BUMPER,RR,CENTER(PRIMARY)
PAINT TO MATCH |
71811-82CB0-799 |
— | ||
|
2
|
2
71831-50CA0-799 BUMPER,RR SIDE,RPAINT TO MATCH |
71831-50CA0-799 |
US $120.08 |
||
|
3
|
3
71841-60CA0-799
Bumper, rear side lh
PAINT TO MATCH |
71841-60CA0-799 |
— | ||
|
4
|
4
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
09139-06072-000 SCREW(6X16) |
09139-06072-000 |
from US $1.28 |
||
|
6
|
6
09122-66004-000
Screw,6x14
6X14 |
09122-66004-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-66007-000 SCREW(6X14)6X14 |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
09409-07325-5PK CLIP(BLACK)BLACK |
09409-07325-5PK |
from US $1.76 |
||
|
8
|
8
71851-82CA0-000 BRACKET,RR BUMPER INSIDE |
71851-82CA0-000 |
US $5.78 |
||
|
9
|
9
71852-82CA0-000 BRACKET,RR BUMPER OUTSIDE |
71852-82CA0-000 |
US $29.97 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
