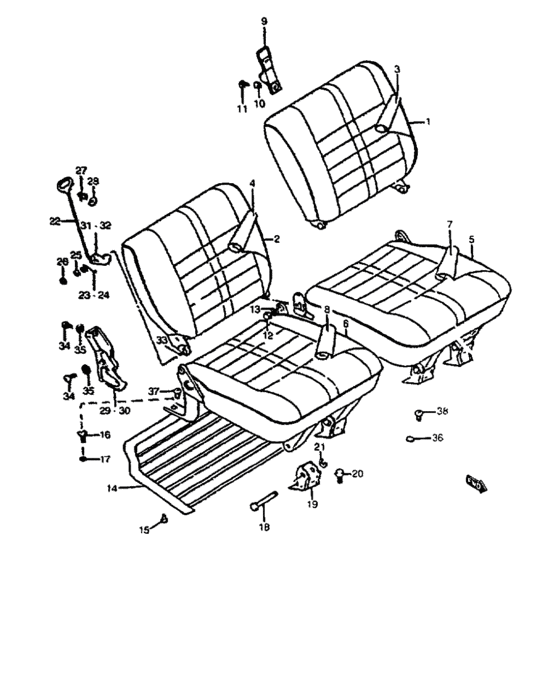

Rear seat (REAR SEAT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87306-84C40-000
Back sub-assy lh
|
87306-84C40-000 |
— | ||
|
2
|
2
87305-84C40-000
Back sub-assy rh
|
87305-84C40-000 |
— | ||
|
3
|
3
87780-84C40-TX8
Cover assy, back lh
|
87780-84C40-TX8 |
— | ||
|
3
|
3
87780-84C40-TX9
Cover assy, back lh
|
87780-84C40-TX9 |
— | ||
|
3
|
3
87780-84C40-XT2
Cover assy, back lh
CT (STANDARD) |
87780-84C40-XT2 |
— | ||
|
4
|
4
87380-84C40-TX8
Cover assy, back rh
|
87380-84C40-TX8 |
— | ||
|
4
|
4
87380-84C40-TX9
Cover assy, back rh
|
87380-84C40-TX9 |
— | ||
|
4
|
4
87380-84C40-XT2
Cover assy, back rh
CT (STANDARD) |
87380-84C40-XT2 |
— | ||
|
5
|
5
87106-84C40-000
Cushion sub-assy lh
|
87106-84C40-000 |
— | ||
|
6
|
6
87105-84C40-000
Cushion sub-assy rh
|
87105-84C40-000 |
— | ||
|
7
|
7
87580-84C40-TX8
Cover assy,cushion lh
|
87580-84C40-TX8 |
— | ||
|
7
|
7
87580-84C40-TX9
Cover assy,cushion lh
|
87580-84C40-TX9 |
— | ||
|
7
|
7
87580-84C40-XT2
Cover assy, cushion lh
CT (STANDARD) |
87580-84C40-XT2 |
— | ||
|
8
|
8
87180-84C40-TX8
Cover assy,cushion rh
|
87180-84C40-TX8 |
— | ||
|
8
|
8
87180-84C40-TX9
Cover assy,cushion rh
|
87180-84C40-TX9 |
— | ||
|
8
|
8
87180-84C40-XT2
Cover assy, cushion rh
CT (STANDARD) |
87180-84C40-XT2 |
— | ||
|
9
|
9
50685-00000-000
Courroie mod. j
|
50685-00000-000 |
— | ||
|
9
|
9
50686-00000-000
Courroie mod. v
|
50686-00000-000 |
— | ||
|
10
|
10
87001-F8330-000
Retendeur
|
87001-F8330-000 |
— | ||
|
11
|
11
03111-04255-000
Screw
|
03111-04255-000 |
— | ||
|
12
|
12
06003-00000-000
Rivet
|
06003-00000-000 |
— | ||
|
13
|
13
09160-06064-000
Rondellle
|
09160-06064-000 |
— | ||
|
16
|
16
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
17
|
17
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $1.12 |
||
|
18
|
18
09208-A0600-100
Goujon
|
09208-A0600-100 |
— | ||
|
19
|
19
87271-A8012-000
Charniere
|
87271-A8012-000 |
— | ||
|
20
|
20
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
21
|
21
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
22
|
22
87214-83000-000
HANDLE
|
87214-83000-000 |
— | ||
|
23
|
23
83914-73062-000
SPRING,HINGE,R
|
83914-73062-000 |
— | ||
|
24
|
24
83944-73062-000
SPRING,HINGE,L
|
83944-73062-000 |
— | ||
|
25
|
25
87325-83000-000
COLLAR,HINGE BOLT
|
87325-83000-000 |
— | ||
|
26
|
26
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
26
|
26
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
27
|
27
09403-06403-000 CLAMP |
09403-06403-000 |
US $1.76 |
||
|
28
|
28
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
29
|
29
51568-84C50-T01
Cover rh
|
51568-84C50-T01 |
— | ||
|
30
|
30
51567-84C50-T01
Cover lh
|
51567-84C50-T01 |
— | ||
|
31
|
31
87212-80200-000
LEVER
|
87212-80200-000 |
— | ||
|
32
|
32
87612-80200-000 LEVER |
87612-80200-000 |
US $3.35 |
||
|
33
|
33
51086-00000-000
Rwet
|
51086-00000-000 |
— | ||
|
34
|
34
15329-85C00-000
Screw, lock cover
|
15329-85C00-000 |
— | ||
|
35
|
35
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
36
|
36
72115-85C00-000
Seal, spare tire bracket,cushion hole
2 SEAT, France |
72115-85C00-000 |
— | ||
|
37
|
37
00044-00000-000
Screw, rear
2 SEAT, Belgium |
00044-00000-000 |
— | ||
|
38
|
38
00043-00000-000
Screw, front
2 SEAT, Belgium |
00043-00000-000 |
— | ||
